22910 - Toro Vibratory Plow for Dingo Compact Utility Loader (SN: 210000001 - 210999999) (2001) Hydraulic Assembly Parts Diagram

Vibratory Plow for Dingo Compact Utility Loader

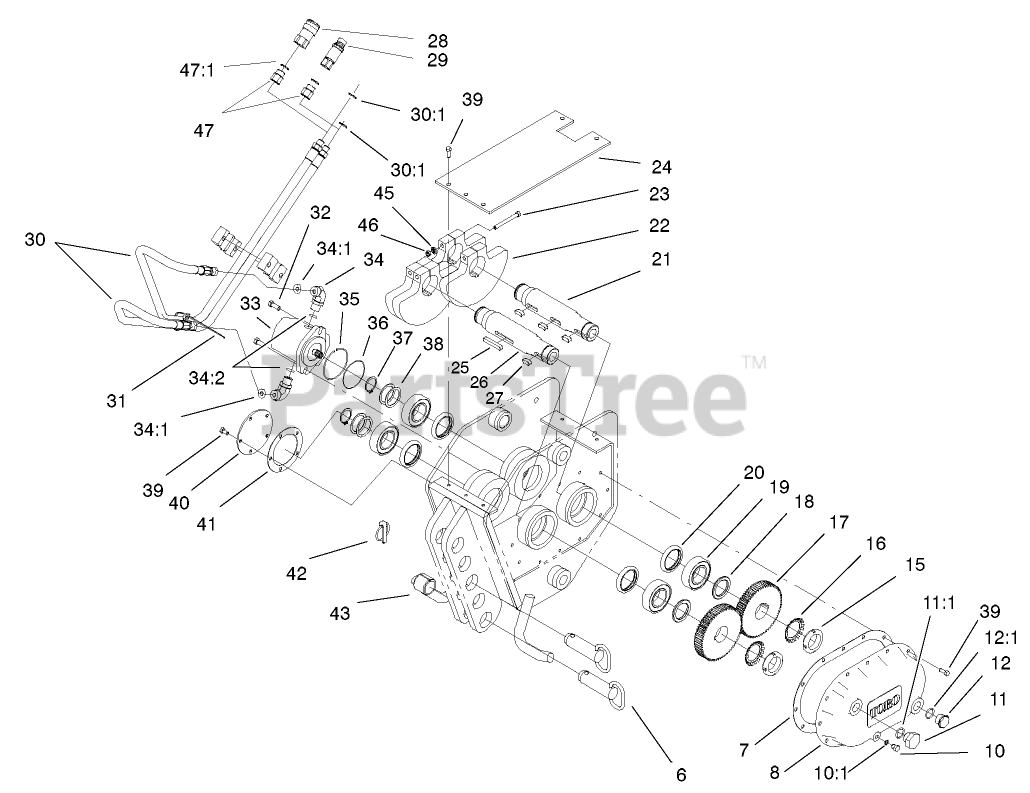

Hydraulic Assembly Parts Diagram

  • Title

6

Toro 99-2710

BLADE PIN ASM

$

$

Not available

7

Toro 99-2744

GASKET

$238.99

$

In Stock, only 1 left!

0

8

Toro 99-2723-03

COVER

$633.99

$

In Stock, only 1 left!

0

10

Toro 353-512

PLUG

$24.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-78

O-RING

$4.99

$

In Stock, Qty 11

0

11

Toro 354-74

PLUG-HH

$28.99

$

Usually ships in 3-6 days

0

11:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

12

Toro 69-1170

GLASS-SIGHT

$50.99

$

Usually ships in 3-6 days

0

12:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

15

Toro 99-2706

NUT

$102.99

$

Usually ships in 3-6 days

0

16

Toro 99-2708

See Supercession: 117-3404
(Superseded to 117-3404)

$38.99

$

Usually ships in 3-6 days

0

17

Toro 99-2676

GEAR

$1334.99

$

Usually ships in 3-6 days

0

18

Toro 99-2677

SPACER

$77.99

$

Usually ships in 3-6 days

0

19

Toro 99-2670

BEARING-ROLLER, SPHERICAL

$619.99

$

Usually ships in 3-6 days

0

20

Toro 99-2714

SEAL-OIL

$63.99

$

Usually ships in 3-6 days

0

21

Toro 99-2672

SHAFT-SPLINED

$859.99

$

Usually ships in 3-6 days

0

22

Toro 99-2673

See Supercession: 99-2673-03
(Superseded to 99-2673-03)

$303.99

$

Usually ships in 3-6 days

0

23

Toro 323-15

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

24

Toro 99-2699-03

PLATE-TOP

$125.99

$

Usually ships in 3-6 days

0

25

Toro 99-2675

KEY-LONG

$17.99

$

Usually ships in 3-6 days

0

26

Toro 99-2671

SHAFT

$676.99

$

Usually ships in 3-6 days

0

27

Toro 99-2674

KEY-SHORT

$38.99

$

Usually ships in 3-6 days

0

28

Toro 100-4234

See Supercession: 104-6134
(Superseded to 104-6134)

$300.99

$

Usually ships in 3-6 days

0

28:1

Toro 100-6119

KIT-SEAL

Note: Not illustrated

$

$

Not available

29

Toro 100-4701

NIPPLE-CONNECT, PRESSURE

$317.99

$

Usually ships in 3-6 days

0

29:1

Toro 100-6120

SEAL KIT

Note: Not illustrated

$117.99

$

In Stock, only 2 left!

0

30

Toro 99-2749

HOSE-HYDRAULIC

$

$

Not available

30:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

31

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

32

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

33

Toro 99-2683

MOTOR-HYD

$2707.99

$

Usually ships in 3-6 days

0

33:1

Toro 99-8608

SEAL KIT

Note: Not illustrated

$441.99

$

Usually ships in 3-6 days

0

34

Toro 340-105

FITTING-ELBOW, 90 DEG

$47.99

$

In Stock, only 2 left!

0

34:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

34:2

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

35

Toro 99-2746

RING-PILOT

$30.99

$

Usually ships in 3-6 days

0

36

Toro 237-167

O-RING

$9.49

$

Usually ships in 3-6 days

0

37

Toro 32151-95

RING-RETAINING

$1.99

$

Usually ships in 3-6 days

0

38

Toro 99-2654

WASHER-THRUST

$45.99

$

Usually ships in 3-6 days

0

39

Toro 100-1668

SCREW-HHF

$7.49

$

In Stock, Qty 7

0

40

Toro 99-2724-03

PLATE-COVER

$69.99

$

Usually ships in 3-6 days

0

41

Toro 99-2745

GASKET

$12.99

$

Usually ships in 3-6 days

0

42

Toro 283-71

PIN-LYNCH

$6.49

$

In Stock, only 4 left!

0

43

Toro 99-2740

BUSHING-TENSION

$84.99

$

Usually ships in 3-6 days

0

45

Toro 3256-47

DISCONTINUED

$

$

Not available

46

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

47

Toro 100-4617

ADAPTER-HYD

$20.99

$

Usually ships in 3-6 days

0

47:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0
