22971 (TRX-19) - Toro Trencher (SN: 280000001 - 280000200) (2008) Carburetor Assembly Parts Diagram

Trencher

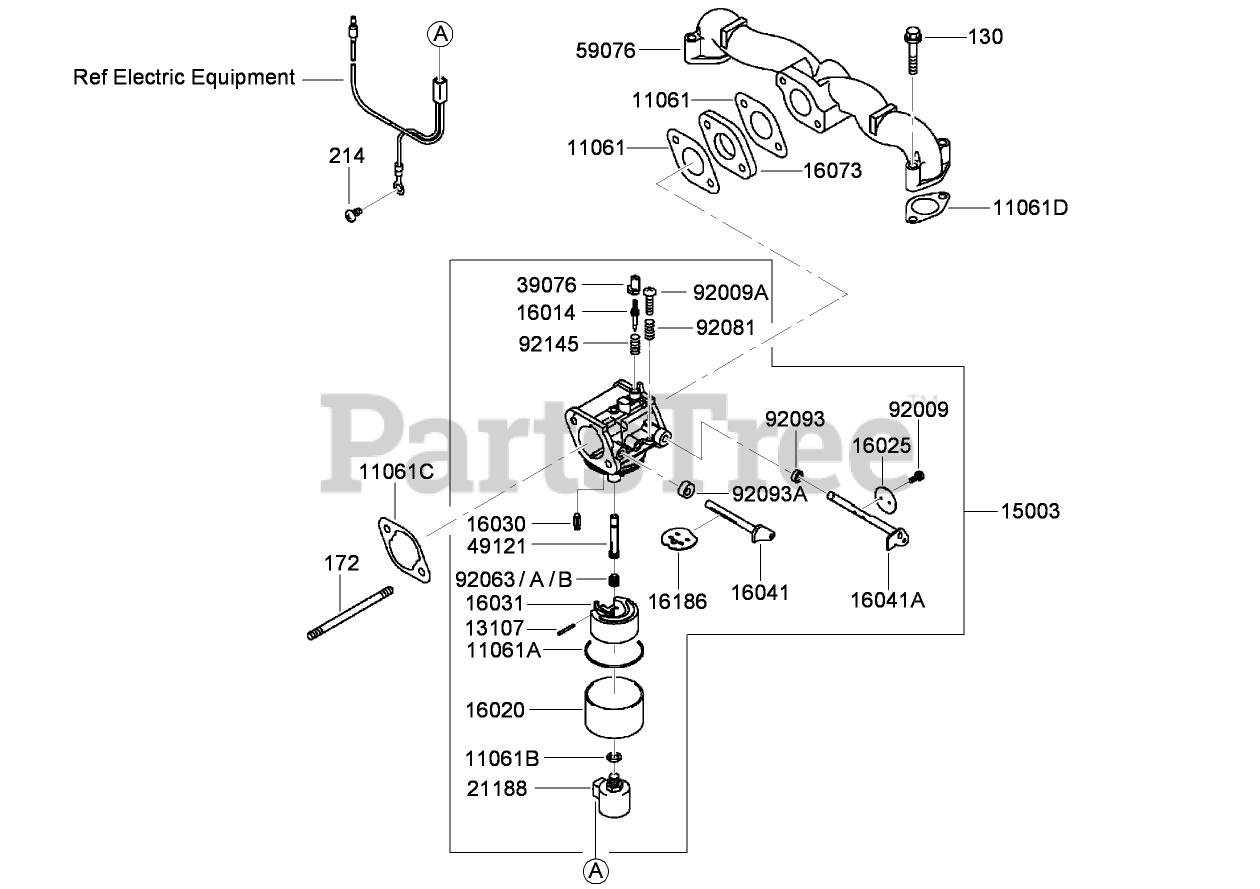

Carburetor Assembly Parts Diagram

  • Title

130

Toro 115-6591

BOLT-FLANGED (6X35)

$3.49

$

Usually ships in 3-6 days

0

172

Toro 115-6596

BOLT-STUD (6X90)

$7.99

$

Usually ships in 3-6 days

0

214

Toro 115-6598

SCREW-PAN+- (5X10)

$

$

Not available

11061

Toro 115-6424

GASKET-INSULATOR

$5.99

$

In Stock, Qty 5

0

11061A

Toro 115-6425

GASKET-CHAMBER

$9.99

$

In Stock, Qty 5

0

11061B

Toro 108-2580

GASKET-SCREW

$16.99

$

Usually ships in 3-6 days

0

11061C

Toro 115-6426

GASKET-CLEANER, AIR

$14.99

$

Usually ships in 3-6 days

0

11061D

Toro 115-6590

GASKET

$

$

Not available

13107

Toro 115-6427

SHAFT

$13.99

$

Usually ships in 3-6 days

0

15003

Toro 115-6592

See Supercession: 119-5998
(Superseded to 119-5998)

$469.99

$

In Stock, only 1 left!

0

16014

Toro 115-6593

SCREW-AIR, PILOT

$

$

Not available

16020

Toro 115-6430

CHAMBER-FLOAT

$47.99

$

Usually ships in 3-6 days

0

16025

Toro 115-6431

VALVE-THROTTLE

$56.99

$

Usually ships in 3-6 days

0

16030

Toro 115-6432

VALVE-FLOAT

$66.99

$

Usually ships in 3-6 days

0

16031

Toro 115-6433

FLOAT

$93.99

$

Usually ships in 3-6 days

0

16041

Toro 115-6434

SHAFT-CHOKE, CARBURETOR

$

$

Not available

16041A

Toro 115-6435

SHAFT-THROTTLE, CARBURETOR

$74.99

$

Usually ships in 3-6 days

0

16073

Toro 115-6594

INSULATOR

$14.99

$

Usually ships in 3-6 days

0

16186

Toro 115-6595

CHOKE VALVE ASM

$

$

Not available

21188

Toro 115-6597

SOLENOID

$604.99

$

Usually ships in 3-6 days

0

39076

Toro 108-2593

LIMITER

$42.99

$

Usually ships in 3-6 days

0

49121

Toro 115-6599

NOZZLE-MAIN

$

$

Not available

59076

Toro 115-6600

MANIFOLD-INTAKE

$

$

Not available

92009

Toro 108-2595

SCREW

$10.99

$

Usually ships in 3-6 days

0

92009A

Toro 108-2596

SCREW

$16.99

$

Usually ships in 3-6 days

0

92063

Toro 115-6601

JET-MAIN (NO. 105)

$

$

Not available

92063A

Toro 115-6602

JET-MAIN, NO. 100

$38.99

$

Usually ships in 3-6 days

0

92063B

Toro 115-6603

JET-MAIN (NO. 110)

$

$

Not available

92081

Toro 108-2598

SPRING

$47.99

$

Usually ships in 3-6 days

0

92093

Toro 108-2599

SEAL

$14.99

$

Usually ships in 3-6 days

0

92093A

Toro 115-6443

SEAL

$

$

Not available

92145

Toro 108-2600

SPRING

$11.99

$

Usually ships in 3-6 days

0
