22971 (TRX-19) - Toro Trencher (SN: 280000001 - 280000200) (2008) Hydraulic Control Assembly Parts Diagram

Trencher

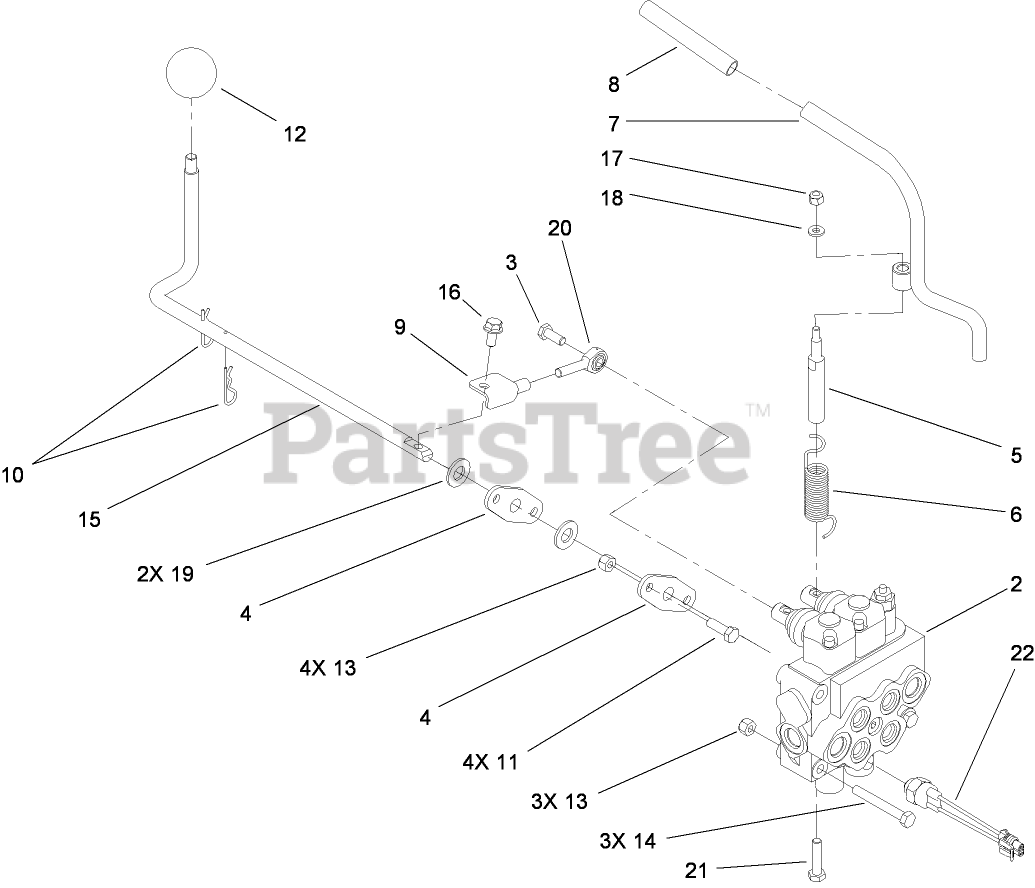

Hydraulic Control Assembly Parts Diagram

  • Title

2

Toro 115-1201

HYD VALVE ASM

$

$

Not available

3

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0

4

Toro 20-1620

BEARING-WHEEL, FRICTION
(Superseded to 138-3142)

$43.99

$

Usually ships in 3-6 days

0

5

Toro 104-2827

SPACER-HIFLO

$184.99

$

In Stock, only 1 left!

0

6

Toro 112-2738

SPRING-TORSION

$12.99

$

Usually ships in 3-6 days

0

7

Toro 112-2739

LEVER-AUXILIARY

$51.99

$

Usually ships in 3-6 days

0

8

Toro 112-2605

GRIP-RUBBER

$7.49

$

Usually ships in 3-6 days

0

9

Toro 114-8612

CONTROL ASM

$

$

Not available

10

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, only 4 left!

0

11

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 233-21

KNOB

$14.99

$

Usually ships in 3-6 days

0

13

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 13

0

15

Toro 114-8598

ROD-LEVER, CYLINDER

$101.99

$

Usually ships in 3-6 days

0

16

Toro 3234-14

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

18

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, only 1 left!

0

19

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 115-1273

BEARING-ROD END

$51.99

$

In Stock, only 2 left!

0

21

Toro 48-7740

See Supercession: 33114-035
(Superseded to 33114-035)

$5.49

$

Usually ships in 3-6 days

0

22

Toro 72-4310

SWITCH-BALL

$112.99

$

Usually ships in 3-6 days

0
