22971 (TRX-19) - Toro Trencher (SN: 310000001 - 310999999) (2010) Air Filter and Muffler Assembly Parts Diagram

Trencher

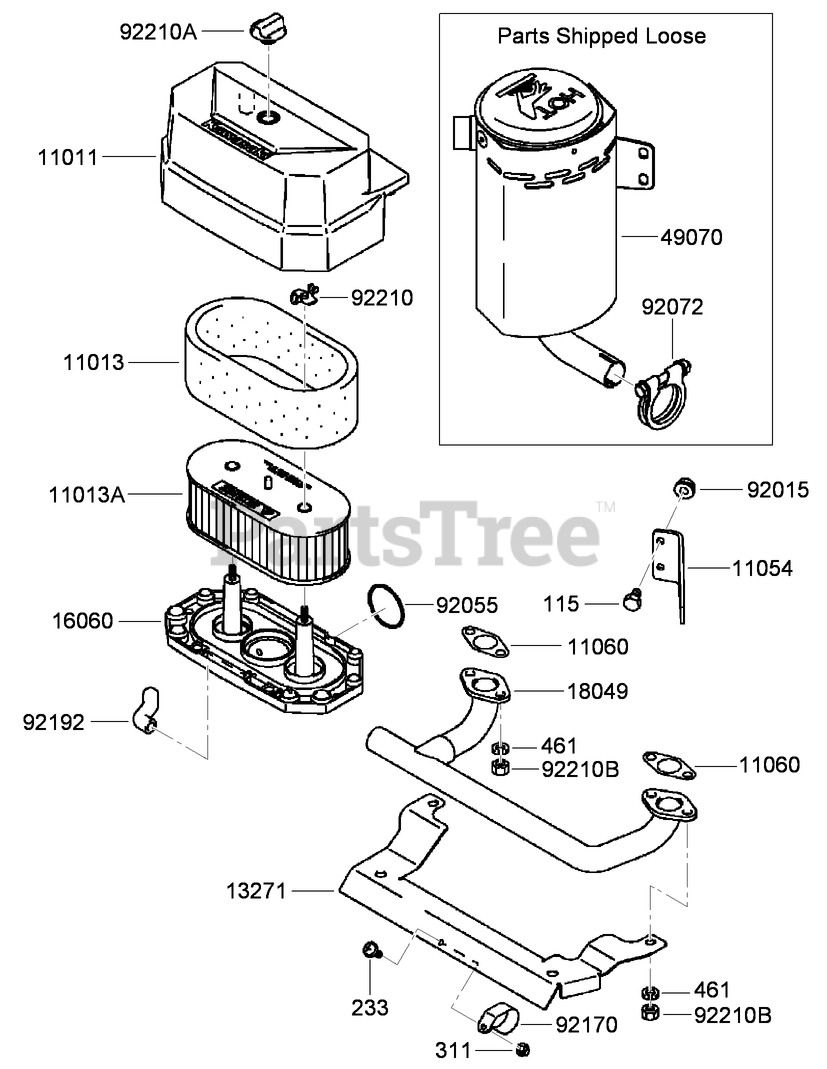

Air Filter and Muffler Assembly Parts Diagram

  • Title

115

Toro 115-6606

BOLT-UPSET, SMALL (8X14)

$

$

Not available

233

Toro 115-6494

SCREW-PAN

$1.99

$

Usually ships in 3-6 days

0

311

Toro 115-6495

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

461

Toro 115-6496

WASHER-SPRING
(Superseded to 114-3550)

$1.49

$

In Stock, Qty 20+

0

11011

Toro 115-6604

CASE-FILTER, AIR

$82.99

$

Usually ships in 3-6 days

0

11013

Toro 115-6473

ELEMENT-FILTER, AIR

$14.99

$

In Stock, only 1 left!

0

11013A

Toro 115-6474

ELEMENT-FILTER, AIR

$58.99

$

In Stock, only 3 left!

0

11054

Toro 115-6605

BRACKET

$

$

Not available

11060

Toro 115-6477

GASKET-MUFFLER

$5.49

$

Usually ships in 3-6 days

0

13271

Toro 115-6607

PLATE

$

$

Not available

16060

Toro 115-6479

PIPE-INTAKE

$

$

Not available

18049

Toro 115-6608

PIPE-EXHAUST

$

$

Not available

49070

Toro 115-6609

MUFFLER

$485.99

$

Usually ships in 3-6 days

0

92015

Toro 95-9793

NUT

$

$

Not available

92055

Toro 115-6485

O-RING

$5.49

$

Usually ships in 3-6 days

0

92072

Toro 115-6486

BAND

$28.99

$

Usually ships in 3-6 days

0

92170

Toro 115-6488

CLAMP

$6.49

$

Usually ships in 3-6 days

0

92192

Toro 115-6489

TUBE

$

$

Not available

92210

Toro 115-6490

NUT

$8.49

$

Usually ships in 3-6 days

0

92210A

Toro 108-2612

NUT

$27.99

$

In Stock, only 1 left!

0

92210B

Toro 115-6611

NUT-HEX

$5.49

$

Usually ships in 3-6 days

0
