22972 (TRX-16) - Toro Trencher (SN: 402461470 - 404709999) Track Drive Assembly Parts Diagram

Trencher

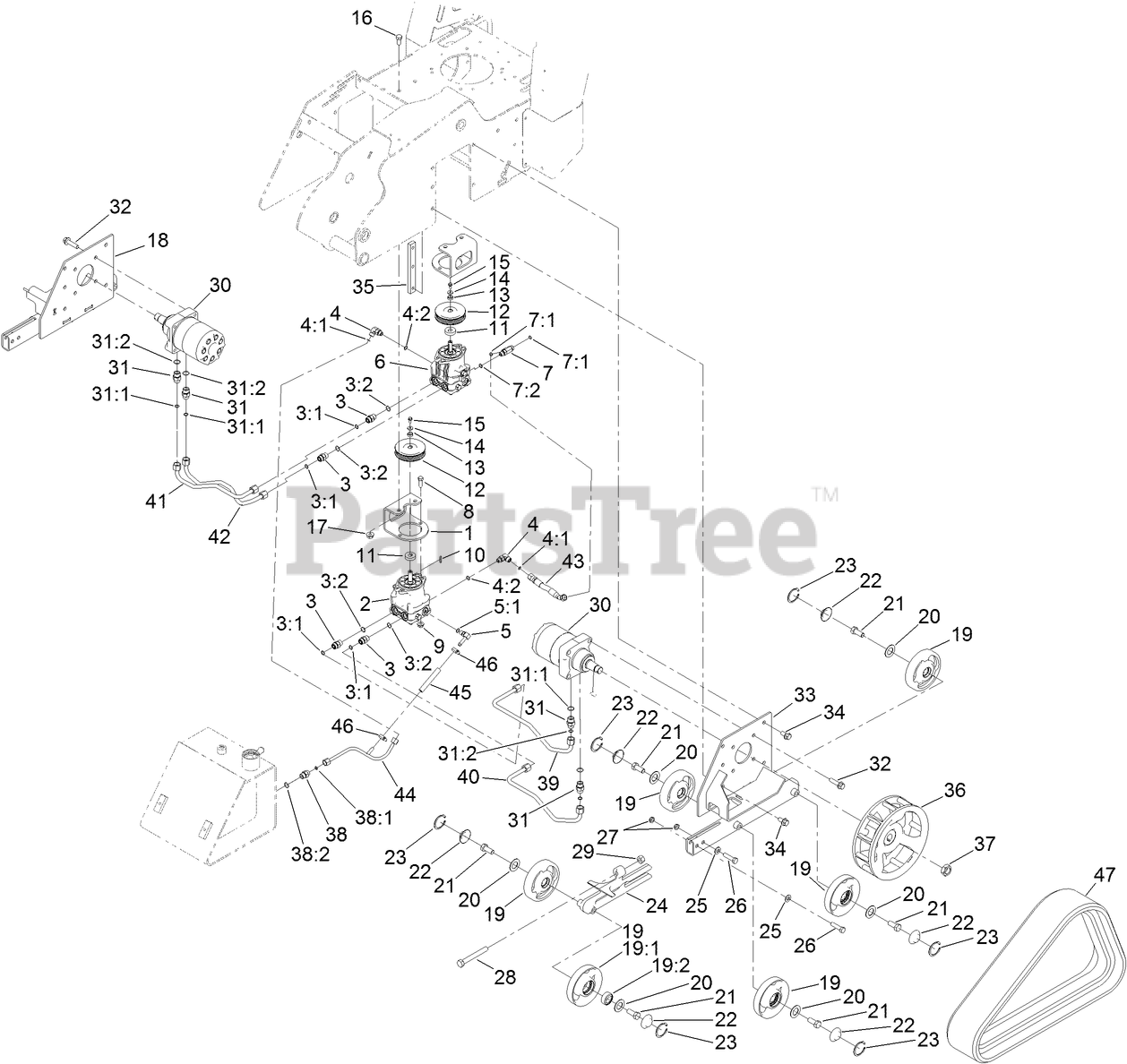

Track Drive Assembly Parts Diagram

  • Title

1

Toro 115-1289-03

BRACKET-MOUNT, PUMP

$83.99

$

Usually ships in 3-6 days

0

2

Toro 117-6409

RH HYD PUMP ASM

$1702.99

$

Usually ships in 3-6 days

0

3

Toro 340-4

FITTING-STRAIGHT

$13.99

$

In Stock, only 3 left!

0

3:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

3:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

4

Toro 340-77

FITTING-ELBOW, 90 DEG

$30.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

4:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

5

Toro 100-4887

FITTING-ELBOW, 90

$29.99

$

In Stock, only 1 left!

0

5:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

6

Toro 117-6410

LH HYD PUMP ASM

$1702.99

$

Usually ships in 3-6 days

0

7

Toro 340-86

FITTING-TEE

$46.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

7:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

8

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

9

Toro 32128-42

NUT-HF

$1.49

$

Usually ships in 3-6 days

0

10

Toro 80-6090

KEY-PUMP

$10.99

$

In Stock, only 2 left!

0

11

Toro 115-4002

SPACER

$47.99

$

In Stock, only 1 left!

0

12

Toro 115-1298

SHEAVE

$319.99

$

Usually ships in 3-6 days

0

13

Toro 108-4211

BUSHING

$1.49

$

In Stock, Qty 14

0

14

Toro 73-3580

WASHER

$4.49

$

In Stock, Qty 11

0

15

Toro 33103-016

SCREW-HHF

$6.99

$

In Stock, Qty 6

0

16

Toro 325-4

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

17

Toro 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 10

0

18

Toro 114-2993-03

FRAME-TRACK, RH

$812.99

$

Usually ships in 3-6 days

0

19

Toro 112-4817

WHEEL-TENSIONER
(Superseded to 138-3139)

$184.99

$

Usually ships in 3-6 days

0

19:1

Toro 114-3014-03

WHEEL-TRACK

$136.99

$

In Stock, only 1 left!

0

19:2

Toro 120-5378

BEARING-BALL

$18.99

$

In Stock, Qty 20+

0

20

Toro 106-7585

GASKET-BOGIE

$2.49

$

In Stock, Qty 8

0

21

Toro 327-4

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

22

Toro 106-7557

CAP-WHEEL, BEARING

$5.99

$

In Stock, only 3 left!

0

23

Toro 106-7595

RING-SNAP, INTERNAL

$5.99

$

In Stock, Qty 7

0

24

Toro 114-3077-03

TENSIONER-TRACK
(Superseded to 114-3077-05)

$289.99

$

Usually ships in 3-6 days

0

25

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 325-8

SCREW-HH

$5.99

$

In Stock, only 3 left!

0

27

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

28

Toro 112-4874

SCREW-HH, TAP

$13.99

$

In Stock, only 2 left!

0

29

Toro 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 15

0

30

Toro 104-8470

HYD WHEEL MOTOR ASM

$3045.99

$

Usually ships in 3-6 days

0

31

Toro 340-6

FITTING-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

31:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

31:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

32

Toro 3234-27

SCREW-HHF

$7.99

$

Usually ships in 3-6 days

0

33

Toro 114-2992-03

FRAME-TRACK, LH
(Superseded to 114-2992-05)

$788.99

$

Usually ships in 3-6 days

0

34

Toro 3234-6

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

35

Toro 114-3091

BAR-THREAD

$59.99

$

Usually ships in 3-6 days

0

36

Toro 117-6426-03

WHEEL-DRIVE

$1269.99

$

Usually ships in 3-6 days

0

37

Toro 106-8159

NUT-LOCK

$32.99

$

Usually ships in 3-6 days

0

38

Toro 340-3

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

38:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

38:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

39

Toro 115-1285

TUBE-HYD

$135.99

$

Usually ships in 3-6 days

0

40

Toro 115-1286

TUBE-HYD

$129.99

$

Usually ships in 3-6 days

0

41

Toro 115-1287

TUBE-HYD

$133.99

$

Usually ships in 3-6 days

0

42

Toro 115-1288

TUBE-HYD

$164.99

$

Usually ships in 3-6 days

0

43

Toro 115-1297

HOSE-HYD

$81.99

$

Usually ships in 3-6 days

0

44

Toro 117-1305

TUBE-HYD

$137.99

$

Usually ships in 3-6 days

0

45

Toro 115-4083

HOSE

$13.99

$

Usually ships in 3-6 days

0

46

Toro 2412-36

CLAMP-HOSE

$2.49

$

In Stock, Qty 5

0

47

Toro 112-4816

TRACK-RUBBER

$921.99

$

Usually ships in 3-6 days

0
