22973 HD (TRX-20) - Toro Trencher (SN: 314000001 - 314999999) (2014) Boom Assembly No. 104-1949 Parts Diagram

Trencher

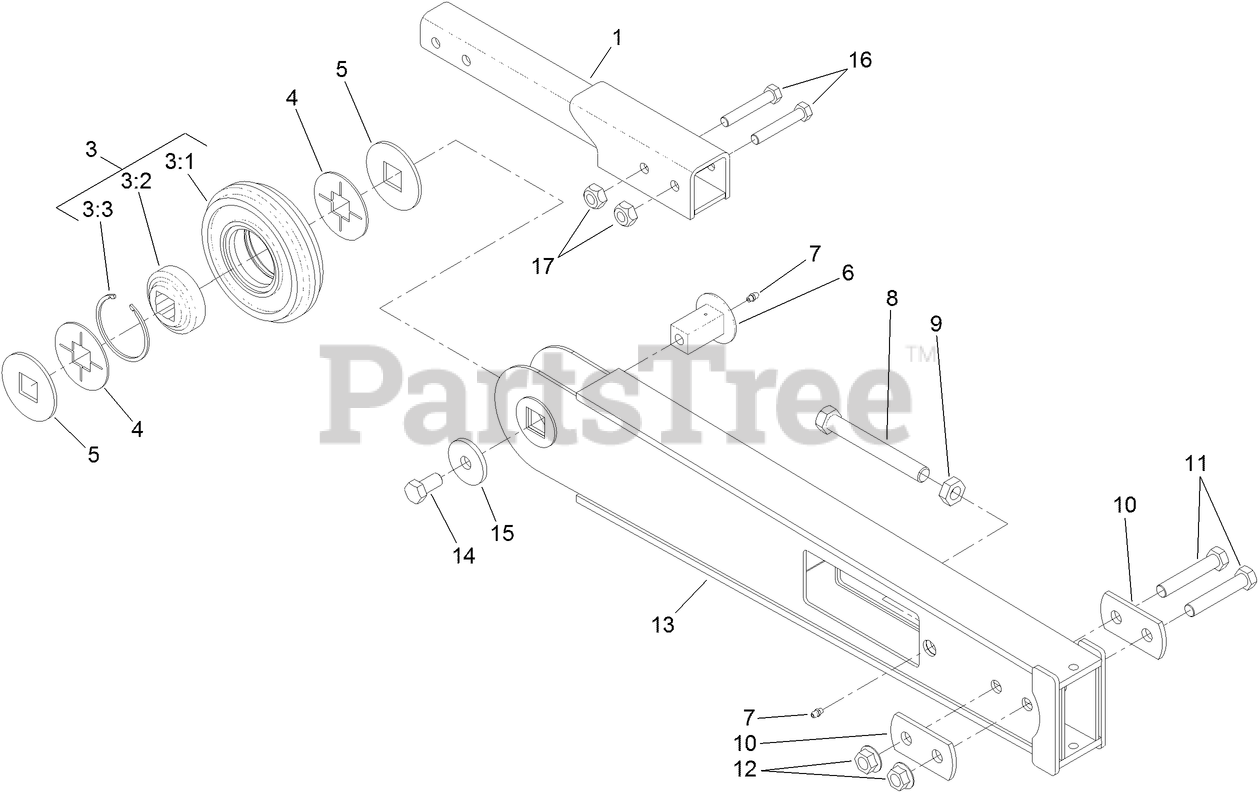

Boom Assembly No. 104-1949 Parts Diagram

  • Title

1

Toro 117-3443-03

EXTENSION-SAFETY BAR

$208.99

$

Usually ships in 3-6 days

0

3

Toro 107-9325

TRENCHER ROLLER ASM

$667.99

$

Usually ships in 3-6 days

0

3:1

Toro 104-1951

ROLLER-NOSE

$359.99

$

Usually ships in 3-6 days

0

3:2

Toro 104-1995

BEARING

$370.99

$

Usually ships in 3-6 days

0

3:3

Toro 104-1945

RING-RETAINING

$24.99

$

In Stock, only 2 left!

0

4

Toro 104-1943

SPACER-ROLLER

$86.99

$

In Stock, only 2 left!

0

5

Toro 104-1942

CAP-ROLLER

$67.99

$

In Stock, only 2 left!

0

6

Toro 108-5549

AXLE-ROLLER
(Superseded to 145-3338)

$45.99

$

Usually ships in 3-6 days

0

7

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

8

Toro 104-1941

BOLT-ADJUSTMENT

$95.99

$

In Stock, only 1 left!

0

9

Toro 104-1944

NUT-JAM

$15.99

$

In Stock, only 2 left!

0

10

Toro 104-1983-03

PLATE-SUPPORT

$53.99

$

Usually ships in 3-6 days

0

11

Toro 327-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

12

Toro 32128-50

NUT-FLANGE

$5.99

$

In Stock, Qty 20+

0

13

Toro 115-0781-03

BOOM ASM

$1306.99

$

Usually ships in 3-6 days

0

14

Toro 327-3

SCREW-HH

$2.49

$

In Stock, only 2 left!

0

15

Toro 104-5901

WASHER

$21.99

$

In Stock, only 2 left!

0

16

Toro 325-12

SCREW-HH

$6.99

$

In Stock, Qty 20+

0

17

Toro 32146-13

NUT-HEX

$4.99

$

In Stock, only 2 left!

0
