22973 (TRX-20) - Toro Trencher (SN: 314000301 - 314999999) (2014) Trencher Assembly Parts Diagram

Trencher

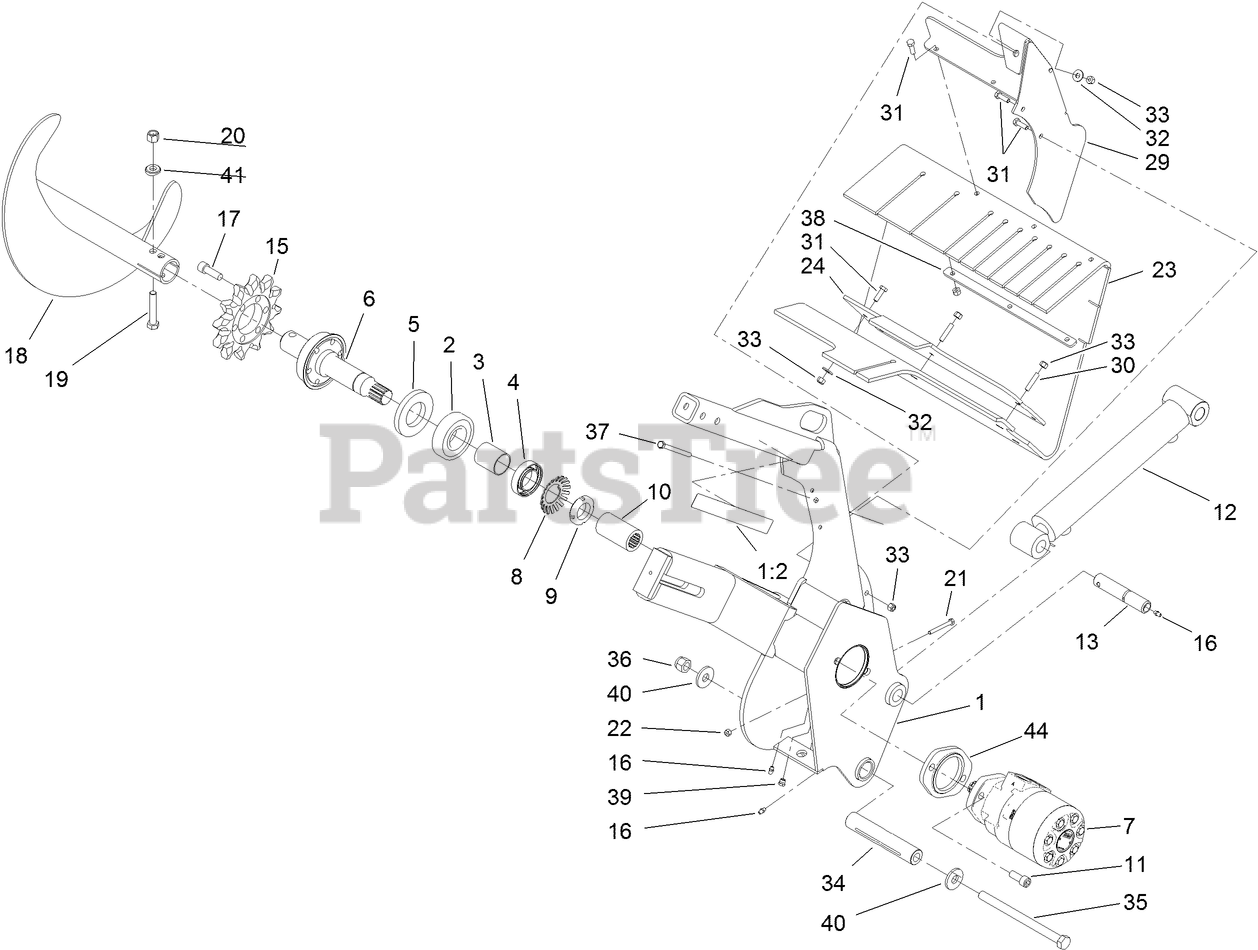

Trencher Assembly Parts Diagram

  • Title

1

Toro 114-8631

TRENCHER HEAD ASM

$

$

Not available

1:2

Toro 99-9952

DECAL-DANGER

$23.99

$

Usually ships in 3-6 days

0

2

Toro 106-8871

BEARING-BALL

$40.99

$

In Stock, only 1 left!

0

3

Toro 112-4979

SPACER

$18.99

$

Usually ships in 3-6 days

0

4

Toro 111199

BEARING-BALL

$143.99

$

In Stock, only 2 left!

0

5

Toro 114-2955

SEAL-GREASE

$101.99

$

In Stock, only 2 left!

0

6

Toro 112-4993

SHAFT-TRENCHER

$900.99

$

Usually ships in 3-6 days

0

7

Toro 131-0654

HYD MOTOR ASM

$1436.99

$

Usually ships in 3-6 days

0

8

Toro 114-2956

LOCKWASHER-BEARING

$44.99

$

In Stock, only 1 left!

0

9

Toro 88-1450

LOCKNUT-BEARING

$52.99

$

In Stock, only 2 left!

0

10

Toro 114-2954

SPLINE-COLLAR

$76.99

$

Usually ships in 3-6 days

0

11

Toro 131-0661

SCREW-HSH

$11.99

$

Usually ships in 3-6 days

0

12

Toro 121-1955

HYD CYLINDER ASM

$1073.99

$

Usually ships in 3-6 days

0

13

Toro 120-7352

PIN-PIVOT

$97.99

$

Usually ships in 3-6 days

0

15

Toro 104-1964

SPROCKET-TRENCHER

$345.99

$

In Stock, only 2 left!

0

16

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

17

Toro 3274-4

SCREW-HSH

$2.99

$

In Stock, Qty 5

0

18

Toro 117-8852-03

AUGER-TRENCHER
(Superseded to 137-3737-03)

$

$

Not available

19

Toro 325-13

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

20

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

21

Toro 321-18

SCREW-HH

$2.49

$

In Stock, Qty 17

0

22

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

23

Toro 114-8569

SHIELD-DIRT

$507.99

$

Usually ships in 3-6 days

0

24

Toro 115-1220-03

BAR-CLAMP

$120.99

$

Usually ships in 3-6 days

0

29

Toro 115-1279-03

BRACKET-SHIELD

$

$

Not available

30

Toro 115-4049

SCREW-HSH

$6.49

$

Usually ships in 3-6 days

0

31

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

34

Toro 121-4571

SPACER-PIVOT

$289.99

$

In Stock, only 1 left!

0

35

Toro 117-6327

BOLT-HH

$53.99

$

In Stock, only 2 left!

0

36

Toro 3296-53

NUT-LOCK, NI

$2.99

$

In Stock, Qty 12

0

37

Toro 322-23

SCREW-HH
(Superseded to 321-9)

$5.49

$

In Stock, only 3 left!

0

38

Toro 115-4001-03

PLATE-STRAP, SHIELD

$

$

Not available

39

Toro 302-34

FITTING-LUBE

$12.99

$

Usually ships in 3-6 days

0

40

Toro 104-9216

WASHER-HARDENED

$7.49

$

In Stock, only 2 left!

0

41

Toro 117-3479

WASHER-SADDLE

$19.99

$

In Stock, only 4 left!

0

44

Toro 131-0653-03

PLATE-SPACER

$101.99

$

Usually ships in 3-6 days

0
