22975 - Toro 2ft Trencher Boom and Bar for Dingo and Dingo TX 2ft Trencher Boom Assembly Parts Diagram

2ft Trencher Boom and Bar for Dingo and Dingo TX

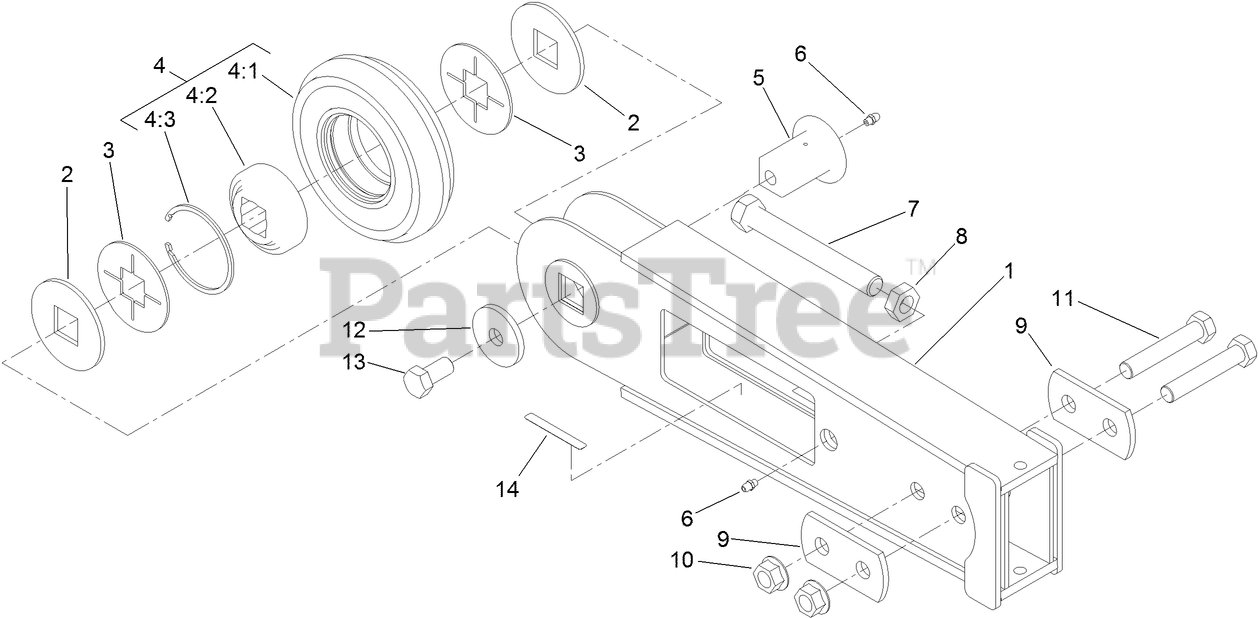

2ft Trencher Boom Assembly Parts Diagram

  • Title

1

Toro 115-0784-03

BOOM ASM

$1470.99

$

Usually ships in 3-6 days

0

2

Toro 104-1942

CAP-ROLLER

$67.99

$

In Stock, only 2 left!

0

3

Toro 104-1943

SPACER-ROLLER

$86.99

$

In Stock, only 2 left!

0

4

Toro 107-9325

TRENCHER ROLLER ASM

$667.99

$

Usually ships in 3-6 days

0

4:1

Toro 104-1951

ROLLER-NOSE

$359.99

$

Usually ships in 3-6 days

0

4:2

Toro 104-1995

BEARING

$370.99

$

Usually ships in 3-6 days

0

4:3

Toro 104-1945

RING-RETAINING

$24.99

$

In Stock, only 2 left!

0

5

Toro 108-5549

AXLE-ROLLER
(Superseded to 145-3338)

$45.99

$

Usually ships in 3-6 days

0

6

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

7

Toro 104-1941

BOLT-ADJUSTMENT

$95.99

$

In Stock, only 1 left!

0

8

Toro 104-1944

NUT-JAM

$15.99

$

In Stock, only 2 left!

0

9

Toro 104-1983-03

PLATE-SUPPORT

$53.99

$

Usually ships in 3-6 days

0

10

Toro 32128-50

NUT-FLANGE

$5.99

$

In Stock, Qty 20+

0

11

Toro 327-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

12

Toro 104-5901

WASHER

$21.99

$

In Stock, only 2 left!

0

13

Toro 327-3

SCREW-HH

$2.49

$

In Stock, only 2 left!

0

14

Toro 133-8061

DECAL-WARNING

$1.49

$

Usually ships in 3-6 days

0
