22983 (TRX-250) - Toro Trencher (SN: 413000000 - 415299999) Hydraulic Assembly Parts Diagram

Trencher

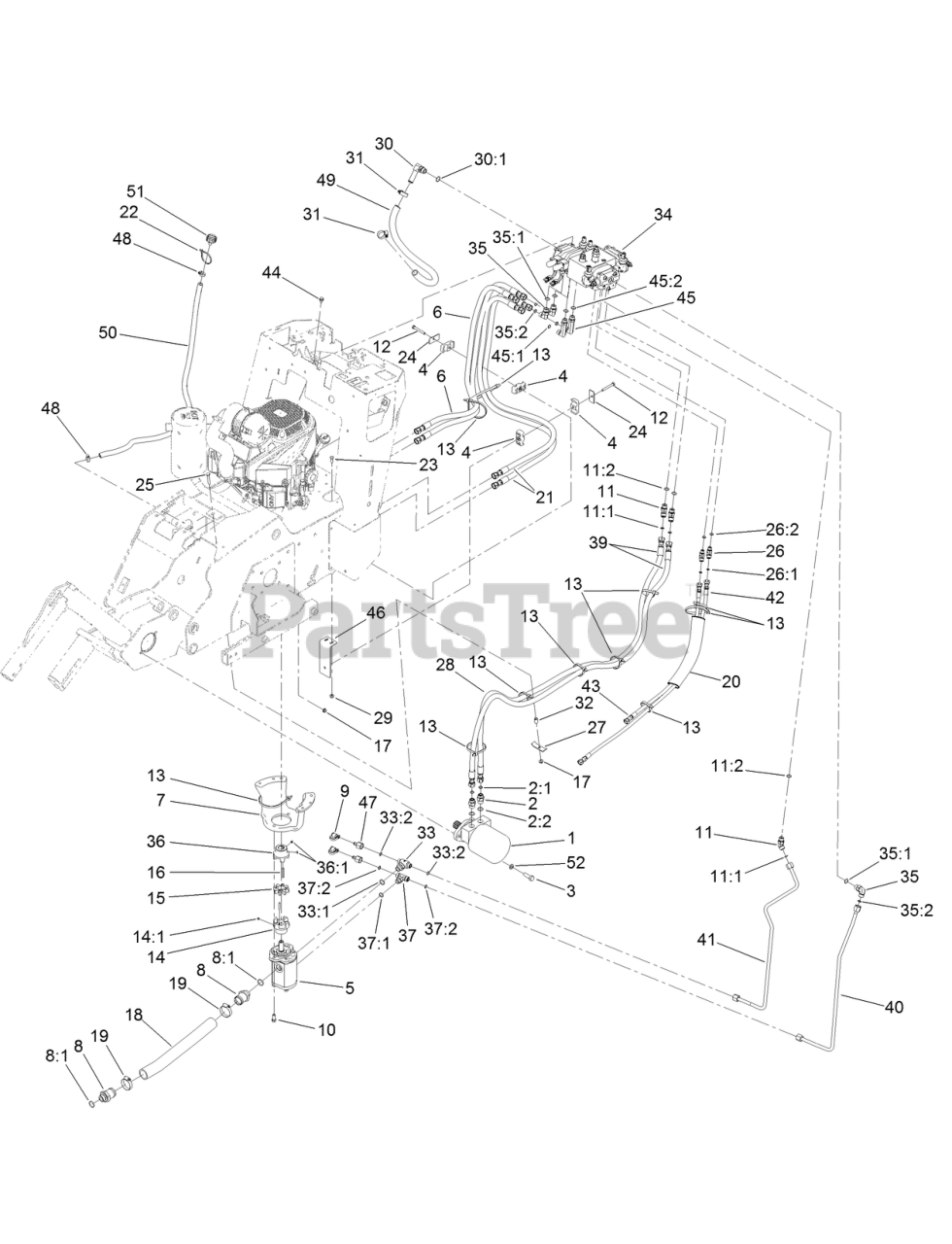

Hydraulic Assembly Parts Diagram

  • Title

1

Toro 117-6306

HYDRAULIC MOTOR ASM

$1912.99

$

Usually ships in 3-6 days

0

2

Toro 340-6

FITTING-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

2:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

3

Toro 325-6

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

4

Toro 94-8105

CLAMP-TUBE

$7.99

$

In Stock, only 2 left!

0

5

Toro 137-7630

PUMP-HYD

$1377.99

$

Usually ships in 3-6 days

0

6

Toro 144-7474

HOSE ASM-HYD

$101.99

$

Usually ships in 3-6 days

0

7

Toro 137-7634-03

MOUNT-PUMP

$202.99

$

Usually ships in 3-6 days

0

8

Toro 138-7126

FITTING-STR

$136.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

9

Toro 354-79

CAP-DUST

$10.99

$

Usually ships in 3-6 days

0

10

Toro 324-4

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

11

Toro 340-101

FITTING-HYD, 45 DEG

$41.99

$

Usually ships in 3-6 days

0

11:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

11:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

12

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 18

0

13

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

14

Toro 114-2933

COUPLER-FLEX

$138.99

$

Usually ships in 3-6 days

0

14:1

Toro 105-4068

SCREW-SET, HSH

$14.99

$

Usually ships in 3-6 days

0

15

Toro 93-8827

COUPLER-SPIDER

$53.99

$

In Stock, only 2 left!

0

16

Toro 608006

KEY-SQUARE

$5.99

$

In Stock, only 2 left!

0

17

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

18

Toro 138-7128

HOSE-SUCTION, HYD

$71.99

$

Usually ships in 3-6 days

0

19

Toro 2412-130

CLAMP-HOSE

$4.99

$

Usually ships in 3-6 days

0

20

Toro 115-4064

SLEEVE-PROTECTIVE

$44.99

$

Usually ships in 3-6 days

0

21

Toro 144-7473

HOSE ASM-HYD

$114.99

$

Usually ships in 3-6 days

0

22

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

23

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

24

Toro 69-9761

PLATE-COVER

$10.99

$

Usually ships in 3-6 days

0

25

Toro 322-10

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

26

Toro 340-87

FITTING-ELBOW, 45 DEG

$21.99

$

Usually ships in 3-6 days

0

26:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

26:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

27

Toro 100-4860

BRACKET-CLAMP

$40.99

$

Usually ships in 3-6 days

0

28

Toro 99-5648

SLEEVE-PROTECTIVE

$92.99

$

Usually ships in 3-6 days

0

29

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

30

Toro 87-8170

FITTING-90

$52.99

$

Usually ships in 3-6 days

0

30:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

31

Toro 2412-129

CLAMP-HOSE

$5.99

$

In Stock, only 3 left!

0

32

Toro 93-5023

SPACER

$14.99

$

Usually ships in 3-6 days

0

33

Toro 130-8775

FITTING-HYD

$

$

Currently unavailable

33:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

33:2

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

34

Toro 145-3263

VALVE ASM

$6464.99

$

Usually ships in 3-6 days

0

35

Toro 340-98

FITTING-ELBOW, 90 DEG

$37.99

$

In Stock, only 2 left!

0

35:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

35:2

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

36

Toro 138-7101

HUB-FLEX

$83.99

$

Usually ships in 3-6 days

0

36:1

Toro 105-4068

SCREW-SET, HSH

$14.99

$

Usually ships in 3-6 days

0

37

Toro 340-157

FITTING-HYD, TEE

$66.99

$

Usually ships in 3-6 days

0

37:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

37:2

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

39

Toro 144-7470

HOSE ASM-HYD

$167.99

$

Usually ships in 3-6 days

0

40

Toro 137-7698

HYD TUBE ASM

$88.99

$

Usually ships in 3-6 days

0

41

Toro 137-3724

HYD TUBE ASM

$99.99

$

Usually ships in 3-6 days

0

42

Toro 144-7471

HOSE ASM-HYD
(Superseded to 161-6877)

$79.99

$

Usually ships in 3-6 days

0

43

Toro 144-7472

HOSE ASM-HYD

$72.99

$

Usually ships in 3-6 days

0

44

Toro 68-9410

SCREW-HHF

$9.49

$

Usually ships in 3-6 days

0

45

Toro 99-6160

FITTING-ELBOW 90 LONG

$147.99

$

Usually ships in 3-6 days

0

45:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

45:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

46

Toro 137-3736-03

BRACKET-SUPPORT, HOSE

$50.99

$

Usually ships in 3-6 days

0

47

Toro 100-5616

FITTING

$80.99

$

Usually ships in 3-6 days

0

48

Toro 2412-36

CLAMP-HOSE

$2.49

$

In Stock, Qty 5

0

49

Toro 138-3197

HOSE-COOLER

$37.99

$

Usually ships in 3-6 days

0

50

Toro 114-3042

HOSE-BREATHER

$52.99

$

Usually ships in 3-6 days

0

51

Toro 68-6150

BREATHER

$31.99

$

In Stock, only 2 left!

0

52

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0
