22983 (TRX-250) - Toro Trencher (SN: 413000000 - 415299999) Track Assembly Parts Diagram

Trencher

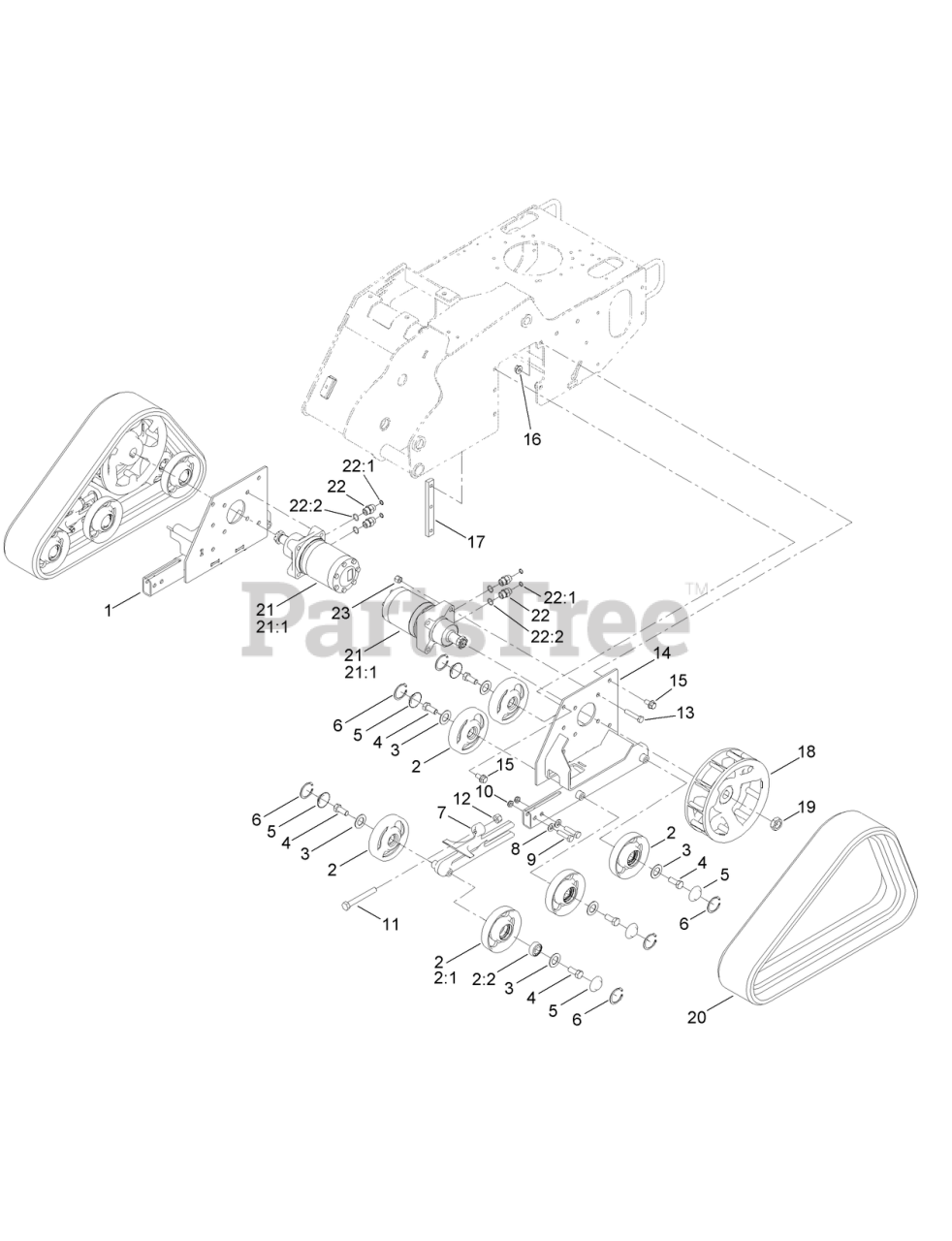

Track Assembly Parts Diagram

  • Title

1

Toro 114-2993-03

FRAME-TRACK, RH

$812.99

$

Usually ships in 3-6 days

0

2

Toro 138-3139

TENSIONER WHEEL ASM

$184.99

$

Usually ships in 3-6 days

0

2:1

Toro 138-7118

WHEEL-TRACK

$

$

Currently unavailable

2:2

Toro 120-5378

BEARING-BALL

$18.99

$

In Stock, Qty 20+

0

3

Toro 106-7585

GASKET-BOGIE

$2.49

$

In Stock, Qty 8

0

4

Toro 327-4

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

5

Toro 106-7557

CAP-WHEEL, BEARING

$5.99

$

In Stock, only 3 left!

0

6

Toro 106-7595

RING-SNAP, INTERNAL

$5.99

$

In Stock, Qty 7

0

7

Toro 114-3077-03

TENSIONER-TRACK
(Superseded to 114-3077-05)

$289.99

$

Usually ships in 3-6 days

0

8

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 325-8

SCREW-HH

$5.99

$

In Stock, only 3 left!

0

10

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

11

Toro 112-4874

SCREW-HH, TAP

$13.99

$

In Stock, only 2 left!

0

12

Toro 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 15

0

13

Toro 325-10

SCREW-HH

$5.99

$

In Stock, only 1 left!

0

14

Toro 114-2992-03

FRAME-TRACK, LH
(Superseded to 114-2992-05)

$788.99

$

Usually ships in 3-6 days

0

15

Toro 3234-6

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

16

Toro 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 10

0

17

Toro 114-3091

BAR-THREAD

$59.99

$

Usually ships in 3-6 days

0

18

Toro 117-6426-03

WHEEL-DRIVE

$1269.99

$

Usually ships in 3-6 days

0

19

Toro 106-8159

NUT-LOCK

$32.99

$

Usually ships in 3-6 days

0

20

Toro 112-4816

TRACK-RUBBER

$921.99

$

Usually ships in 3-6 days

0

21

Toro 137-3866

MOTOR-WHEEL, HYDRAULIC

$1872.99

$

Usually ships in 3-6 days

0

21:1

Toro 145-0616

SEAL KIT
(Superseded to 161-7208)

$225.99

$

Usually ships in 3-6 days

0

22

Toro 340-6

FITTING-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

22:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

23

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0
