22984 (TRX-300) - Toro Trencher (SN: 408000000 - 414499999) Engine and Muffler Assembly Parts Diagram

Trencher

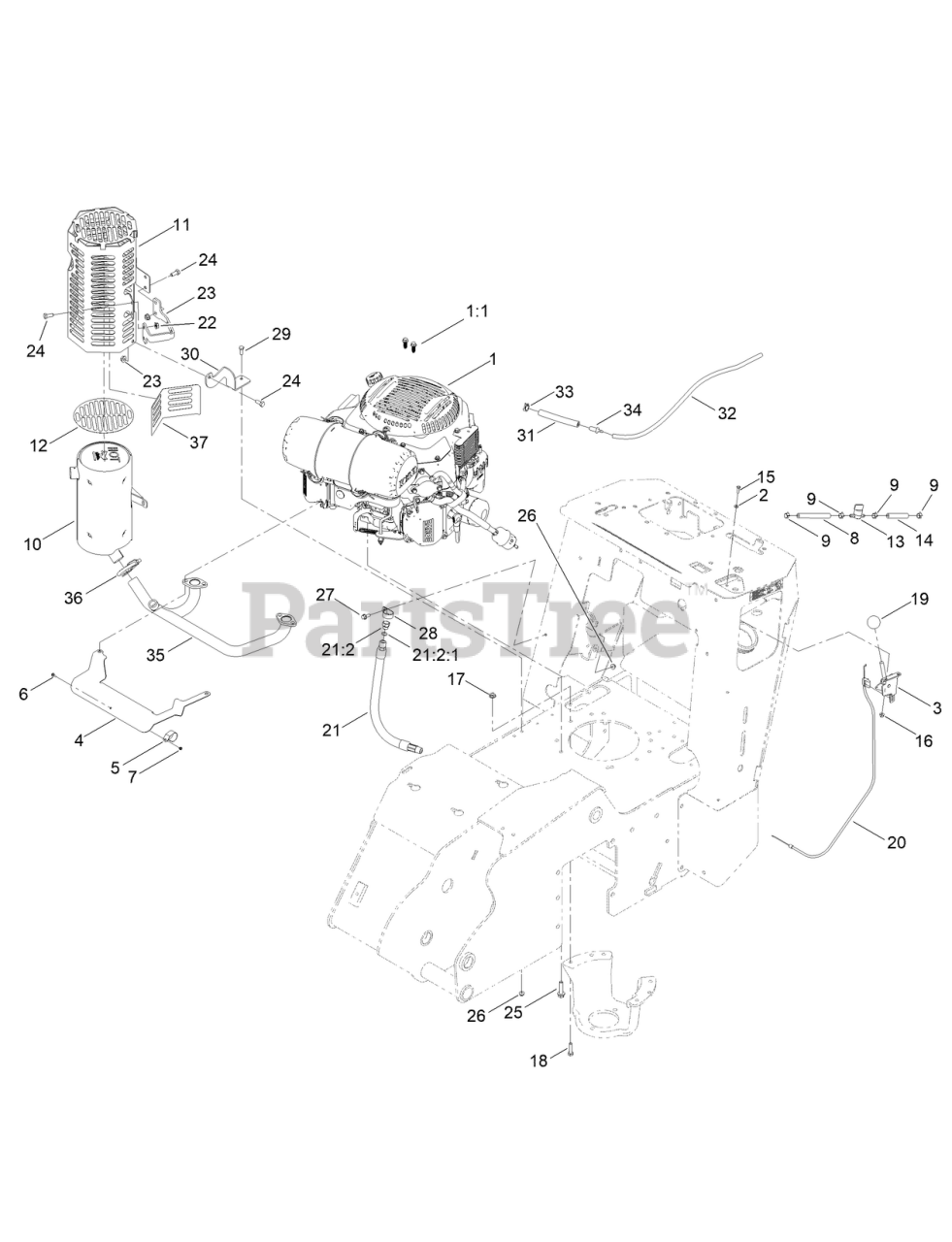

Engine and Muffler Assembly Parts Diagram

  • Title

1

Toro 138-3130

ENGINE-KOHLER, PS-ECV749-3068

Note: This is a Kohler part. Please use the Kohler Engine catalog.

$7153.99

$

Usually ships in 3-6 days

0

1:1

Toro 145-0610

SCREW-HI-LOW, KOHLER

$8.99

$

Usually ships in 3-6 days

0

2

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

3

Toro 110-5547

LEVER-CONTROL

$44.99

$

In Stock, Qty 5

0

4

Toro 137-7691

SHIELD-HEAT

$51.99

$

Usually ships in 3-6 days

0

5

Toro 115-6488

CLAMP

$6.49

$

Usually ships in 3-6 days

0

6

Toro 115-6494

SCREW-PAN

$1.99

$

Usually ships in 3-6 days

0

7

Toro 115-6495

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

8

Toro 109-0295

HOSE-FUEL

$3.99

$

Usually ships in 3-6 days

0

9

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

10

Toro 138-7138

MUFFLER-KOHLER

$227.99

$

Usually ships in 3-6 days

0

11

Toro 139-1310-03

GUARD-MUFFLER

$266.99

$

Usually ships in 3-6 days

0

12

Toro 131-0604

FOIL-GUARD

$13.99

$

Usually ships in 3-6 days

0

13

Toro 1-603770

VALVE-FUEL

$9.49

$

In Stock, Qty 6

0

14

Toro 109-0304

HOSE-FUEL

$2.49

$

In Stock, only 2 left!

0

15

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 16

0

16

Toro 120-4578

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

17

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

18

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

19

Toro 233-42

KNOB

$15.99

$

In Stock, only 2 left!

0

20

Toro 115-1211

CABLE-CONTROL

$30.99

$

In Stock, Qty 9

0

21

Toro 116-5316

OIL DRAIN HOSE ASM

$62.99

$

In Stock, Qty 11

0

21:2

Toro 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$9.49

$

In Stock, only 2 left!

0

21:2:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

22

Toro 138-3101-03

BRACKET-MUFFLER

$31.99

$

Usually ships in 3-6 days

0

23

Toro 32128-26

NUT-FLANGE

$6.99

$

Usually ships in 3-6 days

0

24

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 32144-102

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

26

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

27

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

28

Toro 2412-106

CLAMP-R

$2.99

$

Usually ships in 3-6 days

0

29

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Toro 139-1335-03

BRACKET-GUARD, MUFFLER

$34.99

$

Usually ships in 3-6 days

0

31

Toro 138-3150

HOSE-VENT

$5.49

$

Usually ships in 3-6 days

0

32

Toro 138-3151

HOSE-VENT

$10.99

$

Usually ships in 3-6 days

0

33

Toro 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

34

Toro 116-4630

FITTING-ORIFICE, STRAIGHT

$5.99

$

Usually ships in 3-6 days

0

35

Toro 138-7139

MANIFOLD-KOHLER

$112.99

$

Usually ships in 3-6 days

0

36

Toro 2112-11

CLAMP-MUFFLER

$8.99

$

In Stock, Qty 15

0

37

Toro 139-1322

GUARD-FOIL

$7.99

$

Usually ships in 3-6 days

0
