23120 - Toro Seeder Box Kit for Soil Cultivator Attachment for Dingo Compact Utility Loader Seeder Box Assembly Parts Diagram

Seeder Box Kit for Soil Cultivator Attachment for Dingo Compact Utility Loader

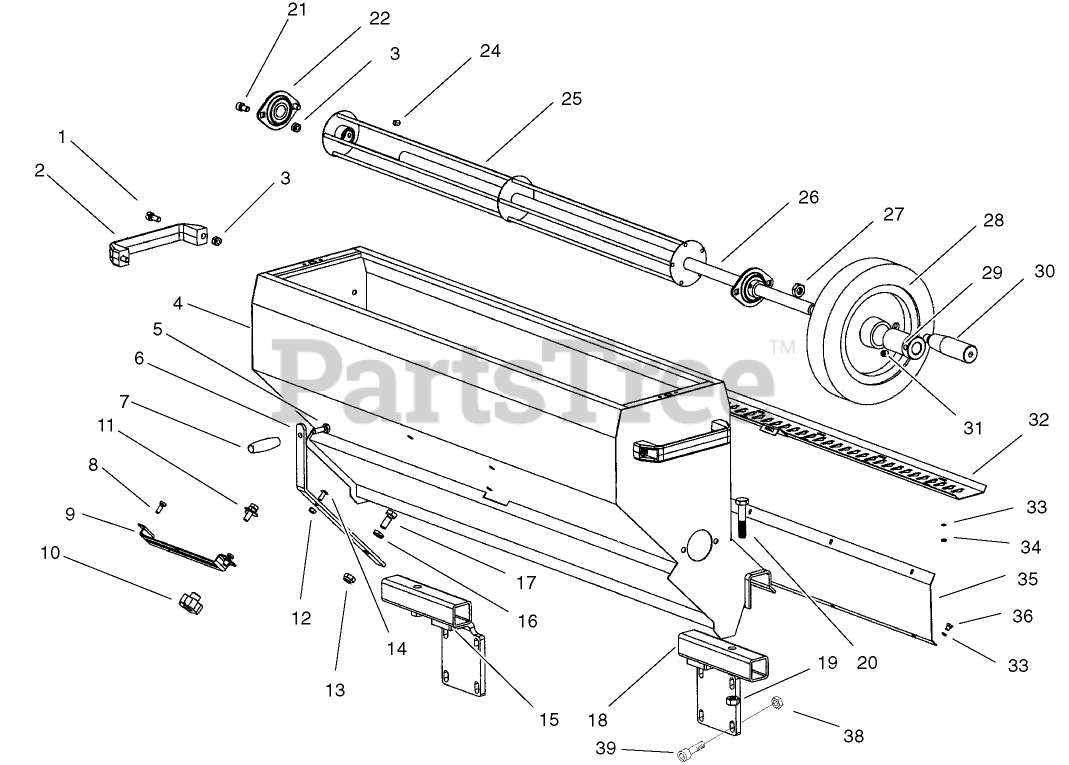

Seeder Box Assembly Parts Diagram

  • Title

1

Toro 104-5953

DISCONTINUED

$

$

Not available

2

Toro 104-5954

HANDLE

$

$

Not available

3

Toro 104-5955

DISCONTINUED

$

$

Not available

4

Toro 104-5956

HOPPER

$

$

Not available

5

Toro 57-6380

See Supercession: 33114-025
(Superseded to 33114-025)

$1.99

$

In Stock, Qty 14

0

6

Toro 104-5957

BAR-CLOSING

$

$

Not available

7

Toro 104-5958

DISCONTINUED

$

$

Not available

8

Toro 104-5959

SCREW

$

$

Not available

9

Toro 104-5960

GUIDE-RATE, SEED

$

$

Not available

10

Toro 104-5961

HANDLE-RATE, SEED

$

$

Not available

11

Toro 104-5962

DISCONTINUED

$

$

Not available

12

Toro 104-5963

DISCONTINUED

$

$

Not available

13

Toro 33025-00

NUT-LOCK, NI

$1.49

$

In Stock, only 1 left!

0

14

Toro 104-5964

DISCONTINUED

$

$

Not available

15

Toro 104-5965

DISCONTINUED

$

$

Not available

16

Toro 104-5966

DISCONTINUED

$

$

Not available

17

Toro 48-7780

See Supercession: 33115-025
(Superseded to 33115-025)

$1.99

$

Usually ships in 3-6 days

0

18

Toro 104-5967

LH MOUNTING ASM

$

$

Not available

19

Toro 33026-00

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

20

Toro 33116-060

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

21

Toro 104-5968

DISCONTINUED

$

$

Not available

22

Toro 104-5969

BEARING ASM

$

$

Not available

24

Toro 104-5970

DISCONTINUED

$

$

Not available

25

Toro 104-5971

MIXER ASM

$

$

Not available

26

Toro 104-5972

AXIS-MIXER

$

$

Not available

27

Toro 104-5973

NUT

$8.49

$

Usually ships in 3-6 days

0

28

Toro 104-5974

WHEEL-DRIVE

$

$

Not available

29

Toro 104-5975

WHEEL HUB

$418.99

$

Usually ships in 3-6 days

0

30

Toro 104-5976

CRANK

$

$

Not available

31

Toro 104-5977

DISCONTINUED

$

$

Not available

32

Toro 104-5978

PLATE-RACK, RATE

$545.99

$

Usually ships in 3-6 days

0

33

Toro 104-5979

DISCONTINUED

$

$

Not available

34

Toro 104-5980

DISCONTINUED

$

$

Not available

35

Toro 104-5981

PLATE-COVER

$

$

Not available

36

Toro 104-5982

DISCONTINUED

$

$

Not available

38

Toro 33025-00

NUT-LOCK, NI

$1.49

$

In Stock, only 1 left!

0

39

Toro 104-5983

DISCONTINUED

$

$

Not available
