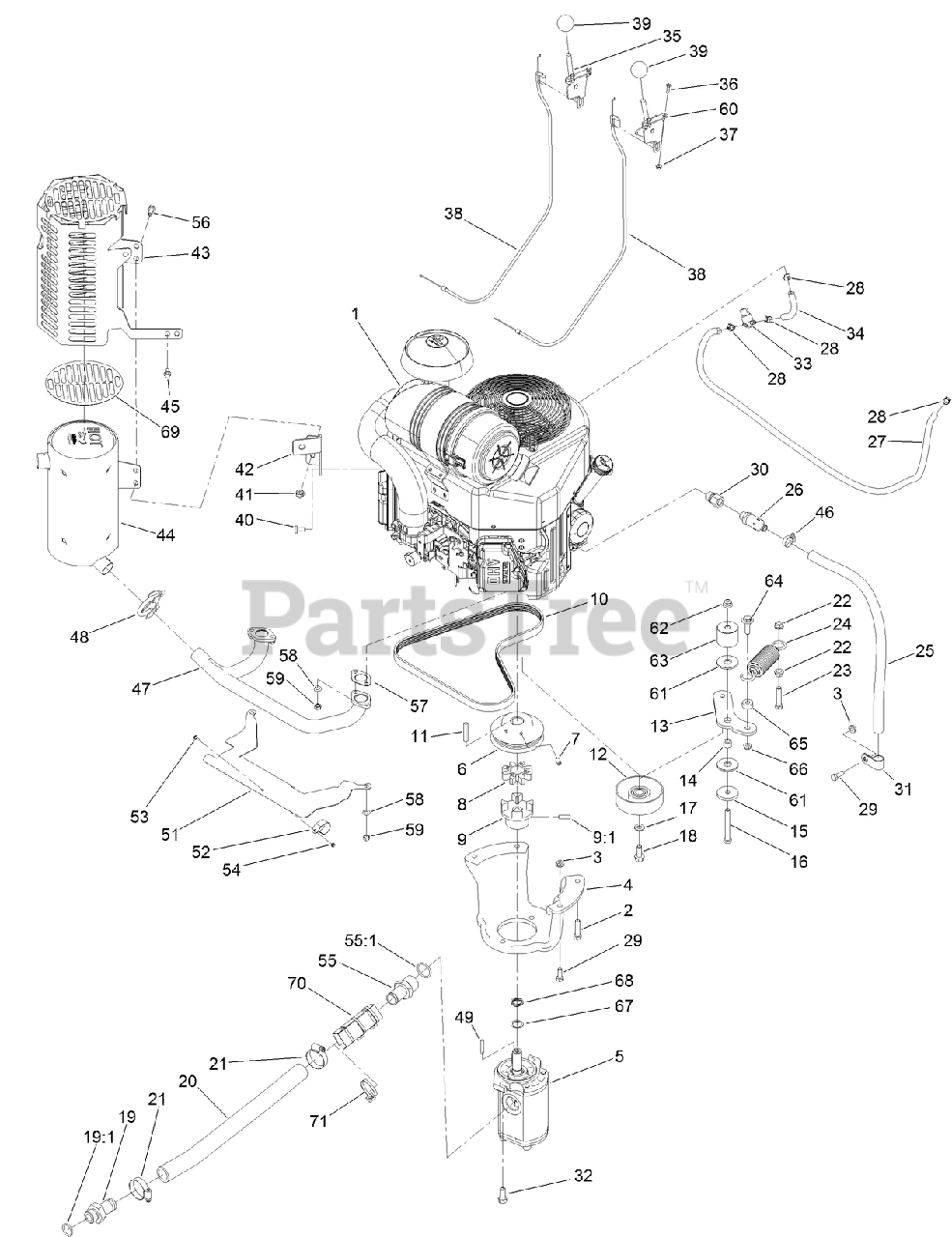

23208 (STX-26) - Toro Stump Grinder (SN: 405700000 - 407969999) Engine Assembly Parts Diagram

Stump Grinder

Engine Assembly Parts Diagram

  • Title

1

Toro 133-8077

ENGINE-KAWASAKI, FX730V

$

$

Not available

2

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

4

Toro 115-1480-03

MOUNT-PUMP

$221.99

$

Usually ships in 3-6 days

0

5

Toro 117-6444

GEAR PUMP ASM

$1771.99

$

Usually ships in 3-6 days

0

6

Toro 114-8559-03

PULLEY-ENGINE
(Superseded to 145-3291)

$71.99

$

In Stock, only 2 left!

0

7

Toro 3246-6

SCREW-SET, HSH

$8.49

$

In Stock, only 2 left!

0

8

Toro 93-8827

COUPLER-SPIDER

$53.99

$

In Stock, only 2 left!

0

9

Toro 114-2933

COUPLER-FLEX

$138.99

$

Usually ships in 3-6 days

0

9:1

Toro 100-7594

SCREW-SET

$2.99

$

In Stock, only 1 left!

0

10

Toro 114-2991

BELT-V

$66.99

$

In Stock, only 2 left!

0

11

Toro 608006

KEY-SQUARE

$5.99

$

In Stock, only 2 left!

0

12

Toro 95-8802

PULLEY-IDLER

$85.99

$

In Stock, only 2 left!

0

13

Toro 125-0252

ARM-IDLER

$91.99

$

In Stock, only 2 left!

0

14

Toro 1-413088

BUSHING-LEVER, LIFT

$11.99

$

In Stock, Qty 20+

0

15

Toro 110-9981

WASHER-PLAIN

$16.99

$

In Stock, Qty 20+

0

16

Toro 323-14

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

19

Toro 99-3017

FITTING

$89.99

$

Usually ships in 3-6 days

0

19:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

20

Toro 114-2917

HOSE-SUCTION

$108.99

$

In Stock, only 1 left!

0

21

Toro 2412-111

CLAMP

$5.49

$

Usually ships in 3-6 days

0

22

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 121-4523

SPRING-EXTENSION

$48.99

$

In Stock, only 1 left!

0

25

Toro 99-1356

See Supercession: 98-2708
(Superseded to 98-2708)

$53.99

$

Usually ships in 3-6 days

0

26

Toro 92-6877

VALVE-DRAIN, OIL

$45.99

$

In Stock, only 2 left!

0

27

Toro 110-3372

HOSE-FUEL

$36.99

$

Usually ships in 3-6 days

0

28

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

29

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

30

Toro 103-1966

ADAPTER

$19.99

$

In Stock, only 2 left!

0

31

Toro 2412-81

CLAMP-R

$4.99

$

Usually ships in 3-6 days

0

32

Toro 324-4

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

33

Toro 1-603770

VALVE-FUEL

$9.49

$

In Stock, Qty 6

0

34

Toro 109-0295

HOSE-FUEL

$3.99

$

Usually ships in 3-6 days

0

35

Toro 108-9730

LEVER-CONTROL

$47.99

$

In Stock, only 2 left!

0

36

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 16

0

37

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, only 4 left!

0

38

Toro 115-1211

CABLE-CONTROL

$30.99

$

In Stock, Qty 9

0

39

Toro 233-42

KNOB

$15.99

$

In Stock, only 2 left!

0

40

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

41

Toro 112-2844

NUT-HF

$1.49

$

In Stock, Qty 5

0

42

Toro 115-9233-03

BRACKET-MOUNT, MUFFLER

$

$

Not available

43

Toro 137-4879-03

GUARD-MUFFLER
(Superseded to 137-4879-05)

$254.99

$

Usually ships in 3-6 days

0

44

Toro 120-7536

MUFFLER

$241.99

$

In Stock, only 1 left!

0

45

Toro 33103-016

SCREW-HHF

$6.99

$

In Stock, Qty 6

0

46

Toro 2412-36

CLAMP-HOSE

$2.49

$

In Stock, Qty 5

0

47

Toro 120-7535

MANIFOLD, MUFFLER

$119.99

$

Usually ships in 3-6 days

0

48

Toro 2112-11

CLAMP-MUFFLER

$8.99

$

In Stock, Qty 15

0

49

Toro 27-8590

KEY-SQUARE

$6.99

$

Usually ships in 3-6 days

0

51

Toro 115-9227

PLATE-SHIELD, HEAT

$99.99

$

Usually ships in 3-6 days

0

52

Toro 115-6488

CLAMP

$6.49

$

Usually ships in 3-6 days

0

53

Toro 115-6494

SCREW-PAN

$1.99

$

Usually ships in 3-6 days

0

54

Toro 115-6495

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

55

Toro 354-78

FITTING-STR

$65.99

$

Usually ships in 3-6 days

0

55:1

Toro 237-146

O-RING

$5.49

$

In Stock, Qty 7

0

56

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0

57

Toro 1-653313

GASKET-EXHAUST

$5.99

$

Usually ships in 3-6 days

0

58

Toro 115-6496

WASHER-SPRING
(Superseded to 114-3550)

$1.49

$

In Stock, Qty 20+

0

59

Toro 115-6611

NUT-HEX

$5.49

$

Usually ships in 3-6 days

0

60

Toro 110-5547

LEVER-CONTROL

$44.99

$

In Stock, Qty 5

0

61

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.99

$

In Stock, Qty 20+

0

62

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

63

Toro 125-0251

SPACER-IDLER

$69.99

$

In Stock, only 1 left!

0

64

Toro 614672

SCREW-SHOULDER, HWH

$3.49

$

In Stock, only 2 left!

0

65

Toro 104-8426

SPACER

$10.99

$

In Stock, only 2 left!

0

66

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, only 4 left!

0

67

Toro 115-7210

WASHER-THRUST

$7.49

$

Usually ships in 3-6 days

0

68

Toro 121-4517

WASHER-WAVE

$4.49

$

Usually ships in 3-6 days

0

69

Toro 131-0604

FOIL-GUARD

$13.99

$

Usually ships in 3-6 days

0

70

Toro AU112950

PROTECTOR-HOSE

$32.99

$

Usually ships in 3-6 days

0

71

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
