23210 (STX-26) - Toro Stump Grinder (SN: 312000001 - 312999999) (2012) Oil Cooler Assembly Parts Diagram

Stump Grinder

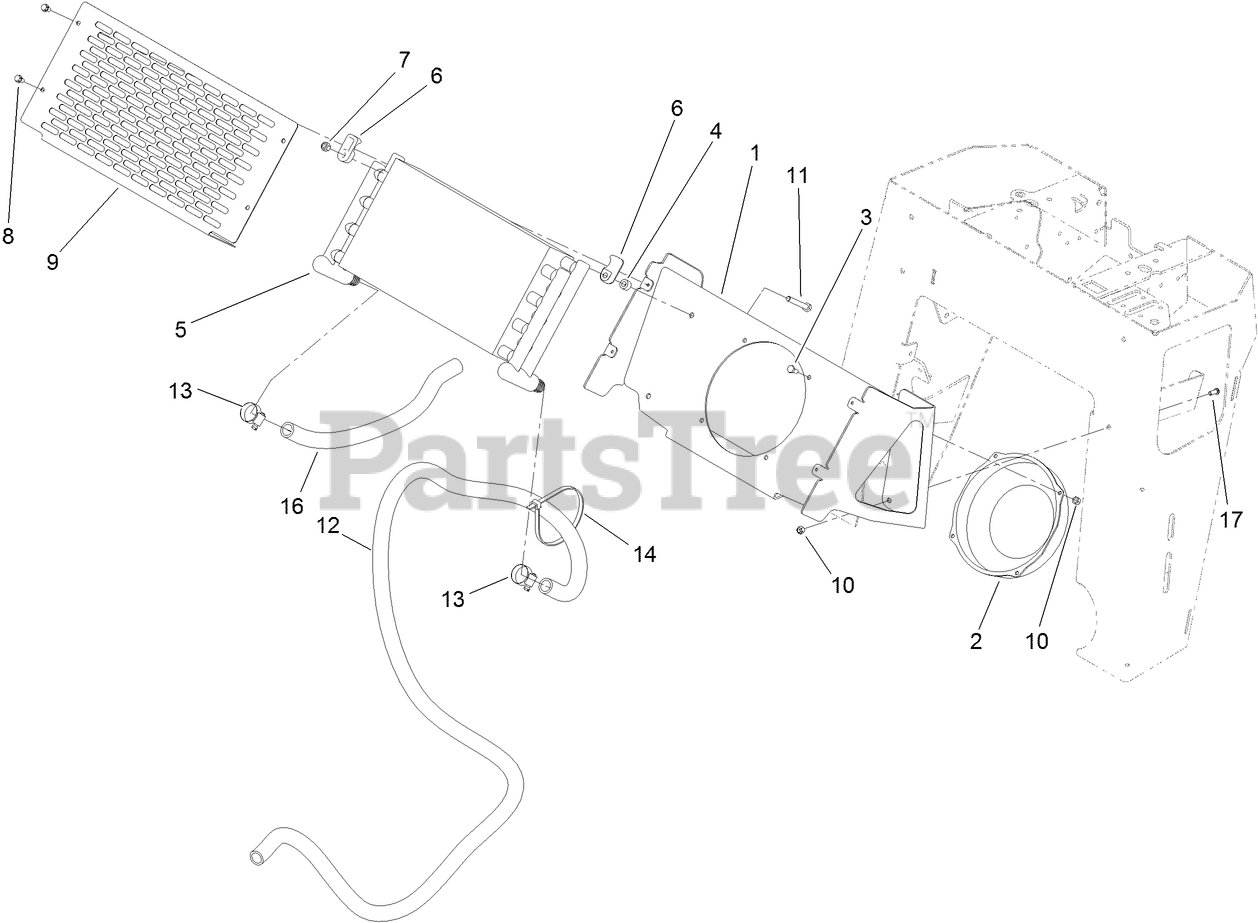

Oil Cooler Assembly Parts Diagram

  • Title

1

Toro 117-6296-01

MOUNT-COOLER

$286.99

$

Usually ships in 3-6 days

0

2

Toro 104-2809

FAN

$573.99

$

Usually ships in 3-6 days

0

3

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 98-4695

SPACER

$8.49

$

Usually ships in 3-6 days

0

5

Toro 117-6320

COOLER-OIL

$1250.99

$

Usually ships in 3-6 days

0

6

Toro 105-3943

CLAMP-COOLER, OIL

$11.99

$

In Stock, only 3 left!

0

7

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

9

Toro 119-4633-01

COVER-COOLER

$170.99

$

Usually ships in 3-6 days

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 14

0

12

Toro 119-4607

HOSE-RETURN

$131.99

$

Usually ships in 3-6 days

0

13

Toro 2412-129

CLAMP-HOSE

$5.99

$

In Stock, only 3 left!

0

14

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

16

Toro 119-4571

HOSE-RETURN

$27.99

$

Usually ships in 3-6 days

0

17

Toro 3274-31

SCREW-HSBH

$1.49

$

In Stock, only 2 left!

0
