23212 (STX-38) - Toro Stump Grinder (SN: 313000001 - 313999999) (2013) Cooler Assembly Parts Diagram

Stump Grinder

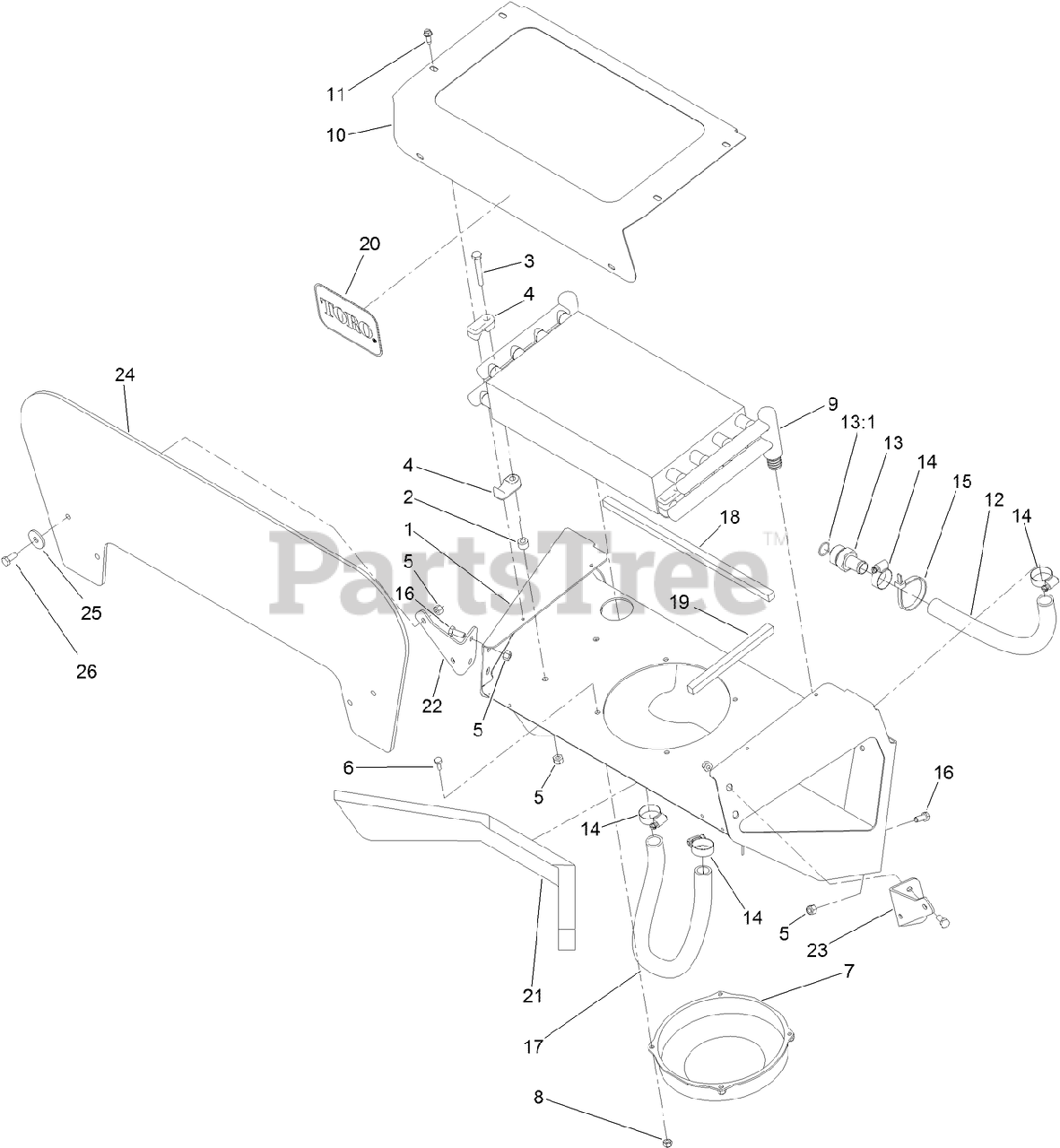

Cooler Assembly Parts Diagram

  • Title

1

Toro 121-1180-01

MOUNT-COOLER

$

$

Not available

2

Toro 98-4695

SPACER

$8.49

$

Usually ships in 3-6 days

0

3

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 18

0

4

Toro 105-3943

CLAMP-COOLER, OIL

$11.99

$

In Stock, only 3 left!

0

5

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 120-7390

FAN

$448.99

$

Usually ships in 3-6 days

0

8

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

9

Toro 117-6320

COOLER-OIL

$1250.99

$

Usually ships in 3-6 days

0

10

Toro 125-0308-01

COVER-COOLER

$175.99

$

Usually ships in 3-6 days

0

11

Toro 32104-95

SCREW-HWH

$0.99

$

In Stock, Qty 7

0

12

Toro 121-4537

HOSE-HYD

$41.99

$

Usually ships in 3-6 days

0

13

Toro 107-8652

FITTING-STRAIGHT

$181.99

$

Usually ships in 3-6 days

0

13:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

14

Toro 2412-129

CLAMP-HOSE

$5.99

$

In Stock, only 3 left!

0

15

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

16

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 125-0266

HOSE-RETURN

$34.99

$

Usually ships in 3-6 days

0

18

Toro 125-0319

FOAM-SEAL

$20.99

$

Usually ships in 3-6 days

0

19

Toro 125-0324

FOAM-SEAL

$20.99

$

Usually ships in 3-6 days

0

20

Toro 104-3989

DECAL

$66.99

$

In Stock, only 4 left!

0

21

Toro 125-0316

FOAM-SEAL

$

$

Not available

22

Toro 125-0350-01

BRACKET-SHIELD, RH

$22.99

$

Usually ships in 3-6 days

0

23

Toro 125-0351-01

BRACKET-SHIELD, LH

$22.99

$

Usually ships in 3-6 days

0

24

Toro 125-0340

SHIELD-CHIP

$497.99

$

Usually ships in 3-6 days

0

25

Toro 63-8410

WASHER

$2.49

$

In Stock, only 1 left!

0

26

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0
