23212 (STX-38) - Toro Stump Grinder (SN: 313000001 - 313999999) (2013) Track Assembly Parts Diagram

Stump Grinder

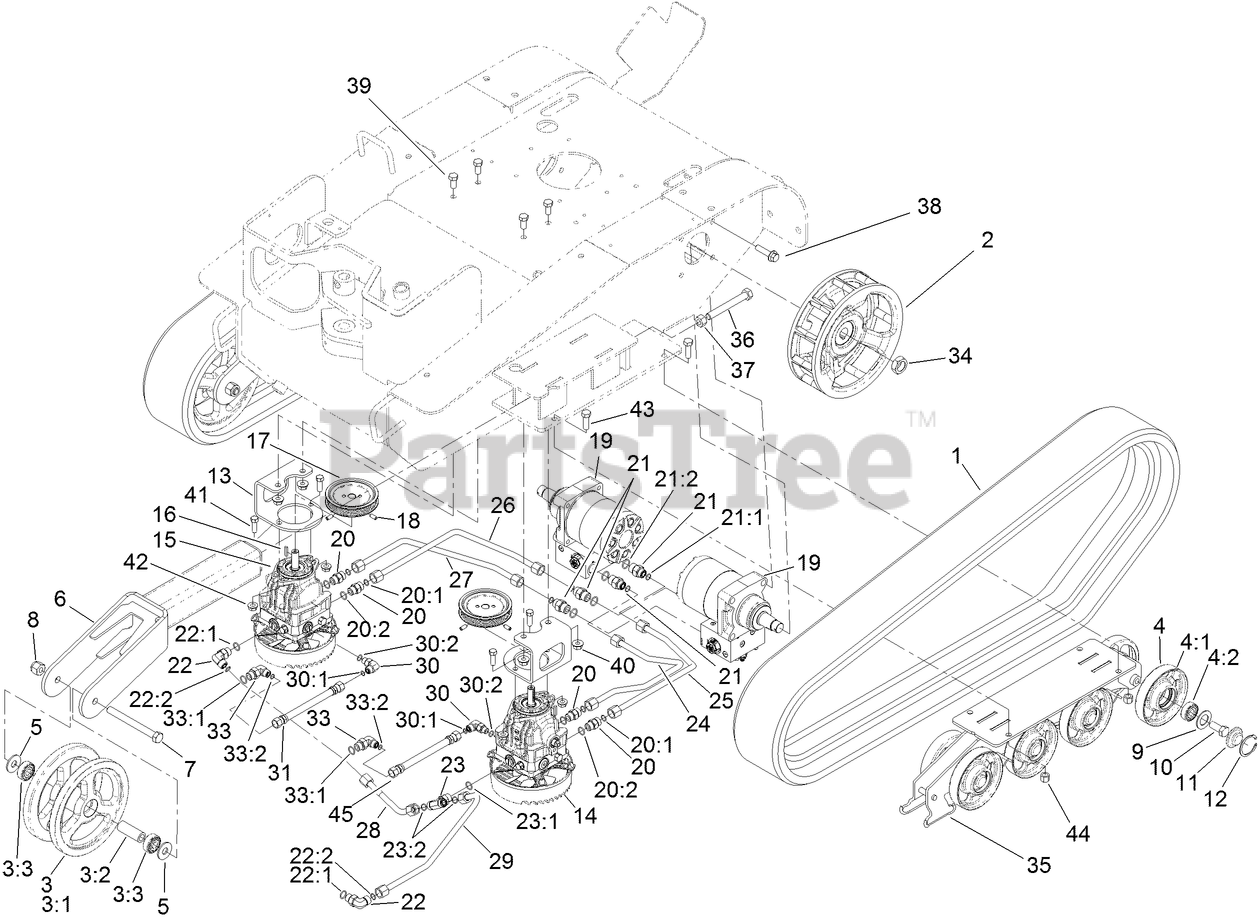

Track Assembly Parts Diagram

  • Title

1

Toro 121-1021

TRACK-RUBBER

$1435.99

$

Usually ships in 3-6 days

0

2

Toro 117-6426-03

WHEEL-DRIVE

$1269.99

$

Usually ships in 3-6 days

0

3

Toro 104-5745

TENSIONER WHEEL ASM

$825.99

$

Usually ships in 3-6 days

0

3:1

Toro 104-5747-03

WHEEL-TENSIONER
(Superseded to 104-5745)

$825.99

$

Usually ships in 3-6 days

0

3:2

Toro 98-9835

SPACER-WHEEL, TENSIONER

$19.99

$

In Stock, only 2 left!

0

3:3

Toro 120-5378

BEARING-BALL

$18.99

$

In Stock, Qty 20+

0

4

Toro 112-4817

WHEEL-TENSIONER
(Superseded to 138-3139)

$184.99

$

Usually ships in 3-6 days

0

4:1

Toro 114-3014-03

WHEEL-TRACK

$136.99

$

In Stock, only 1 left!

0

4:2

Toro 120-5378

BEARING-BALL

$18.99

$

In Stock, Qty 20+

0

5

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

6

Toro 121-1018-03

ARM-TENSIONER

$526.99

$

Usually ships in 3-6 days

0

7

Toro 327-17

SCREW-HH

$13.99

$

In Stock, Qty 11

0

8

Toro 3296-24

NUT-HEX

$5.49

$

In Stock, Qty 20+

0

9

Toro 106-7585

GASKET-BOGIE

$2.49

$

In Stock, Qty 8

0

10

Toro 327-4

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Toro 106-7557

CAP-WHEEL, BEARING

$5.99

$

In Stock, only 3 left!

0

12

Toro 106-7595

RING-SNAP, INTERNAL

$5.99

$

In Stock, Qty 7

0

13

Toro 115-1289-01

BRACKET-MOUNT, PUMP

$

$

Not available

14

Toro 121-1953

PUMP-HYD, LH

$1625.99

$

Usually ships in 3-6 days

0

15

Toro 121-1954

PUMP-HYD, RH

$1625.99

$

Usually ships in 3-6 days

0

16

Toro 80-6090

KEY-PUMP

$10.99

$

In Stock, only 2 left!

0

17

Toro 109-2202

SHEAVE

$175.99

$

Usually ships in 3-6 days

0

18

Toro 3246-6

SCREW-SET, HSH

$8.49

$

In Stock, only 2 left!

0

19

Toro 121-1957

HYD MOTOR ASM

$3087.99

$

Usually ships in 3-6 days

0

20

Toro 340-4

FITTING-STRAIGHT

$13.99

$

In Stock, only 3 left!

0

20:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

20:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

21

Toro 340-6

FITTING-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

21:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

22

Toro 340-98

FITTING-ELBOW, 90 DEG

$37.99

$

In Stock, only 2 left!

0

22:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

22:2

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

23

Toro 340-157

FITTING-HYD, TEE

$66.99

$

Usually ships in 3-6 days

0

23:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

23:2

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

24

Toro 121-1124

TUBE-HYD

$78.99

$

In Stock, only 1 left!

0

25

Toro 121-1125

TUBE-HYD

$77.99

$

Usually ships in 3-6 days

0

26

Toro 121-1126

TUBE-HYD

$78.99

$

Usually ships in 3-6 days

0

27

Toro 121-1127

TUBE-HYD

$89.99

$

Usually ships in 3-6 days

0

28

Toro 121-1198

TUBE-HYD

$57.99

$

Usually ships in 3-6 days

0

29

Toro 121-1130

TUBE-HYD

$77.99

$

Usually ships in 3-6 days

0

30

Toro 340-77

FITTING-ELBOW, 90 DEG

$30.99

$

Usually ships in 3-6 days

0

30:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

30:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

31

Toro 94-4712

DISCONTINUED

$74.99

$

Usually ships in 3-6 days

0

33

Toro 340-18

FITTING-HYD, 90 DEG

$46.99

$

Usually ships in 3-6 days

0

33:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

33:2

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

34

Toro 106-8159

NUT-LOCK

$32.99

$

Usually ships in 3-6 days

0

35

Toro 121-0883-01

MOUNT-WHEEL

$721.99

$

Usually ships in 3-6 days

0

36

Toro 125-0357

SCREW-HH, TAP

$45.99

$

In Stock, only 2 left!

0

37

Toro 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 15

0

38

Toro 3234-27

SCREW-HHF

$7.99

$

Usually ships in 3-6 days

0

39

Toro 325-4

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

40

Toro 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 10

0

41

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

42

Toro 32128-42

NUT-HF

$1.49

$

Usually ships in 3-6 days

0

43

Toro 325-6

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

44

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

45

Toro 76-9420

HOSE-HYD

$87.99

$

Usually ships in 3-6 days

0
