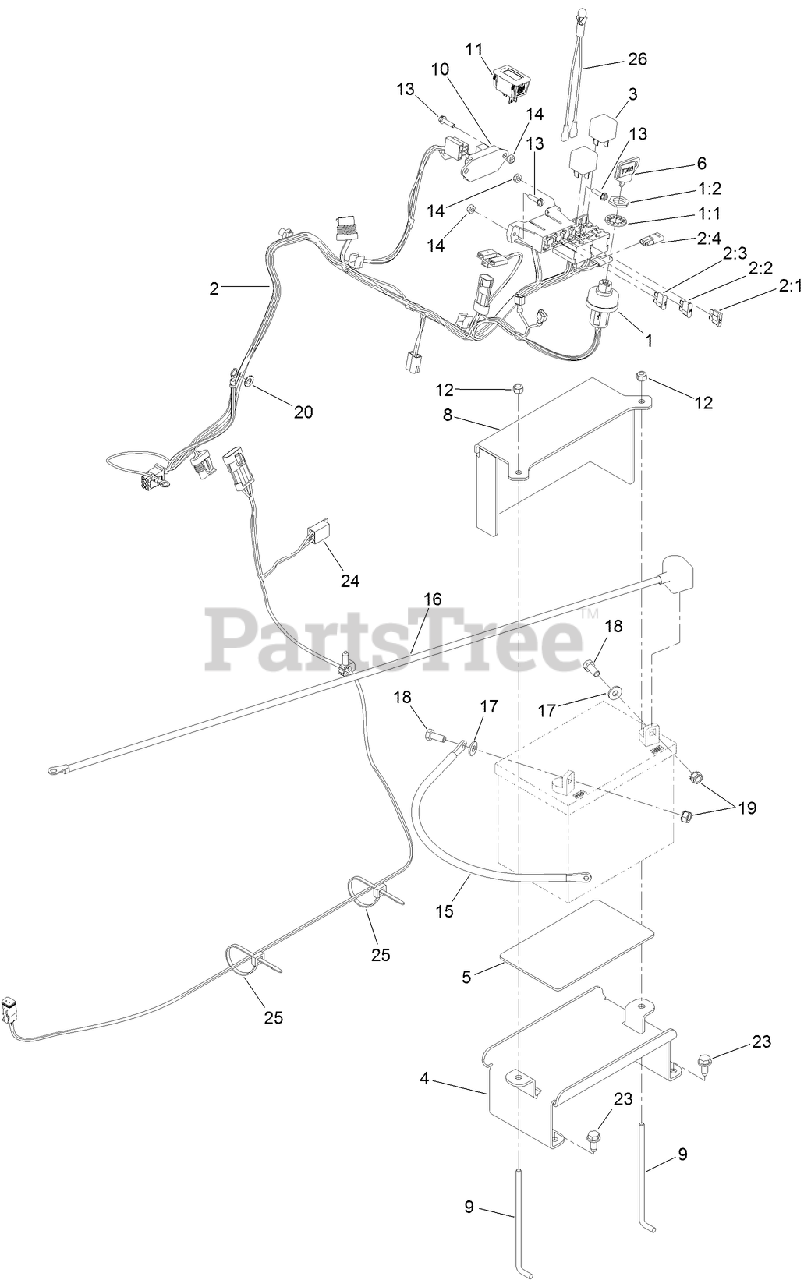

23214 (STX-38) - Toro EFI Stump Grinder with Intelli-Sweep (SN: 414000000 - 414673649) Electrical Assembly Parts Diagram

EFI Stump Grinder with Intelli-Sweep

Electrical Assembly Parts Diagram

  • Title

1

Toro 111216

See Supercession: 103990
(Superseded to 103990)

$30.99

$

In Stock, Qty 9

0

1:1

Toro 9201604

WASHER-LOCK

$0.99

$

In Stock, only 2 left!

0

1:2

Toro 101884

NUT

$7.99

$

In Stock, only 1 left!

0

2

Toro 130-7572

HARNESS-WIRE

$447.99

$

Usually ships in 3-6 days

0

2:1

Toro 109103

FUSE-BLADE, 30 AMP

$7.49

$

In Stock, only 4 left!

0

2:2

Toro 110928

FUSE-BLADE, 5 AMP

$9.49

$

Usually ships in 3-6 days

0

2:3

Toro 109101

FUSE-BLADE, 20 AMP

$2.49

$

In Stock, Qty 11

0

2:4

Toro 116-0053

CAP-PLUG

$44.99

$

Usually ships in 3-6 days

0

3

Toro 98-7249

RELAY

$25.99

$

In Stock, Qty 10

0

4

Toro 131-0727-01

TRAY-BATTERY

$136.99

$

Usually ships in 3-6 days

0

5

Toro 62-4300

PAD-SKID, ANTI

$22.99

$

Usually ships in 3-6 days

0

6

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

8

Toro 131-0739-03

COVER-BATTERY
(Superseded to 131-0739-05)

$78.99

$

Usually ships in 3-6 days

0

9

Toro 104-8567

HOLDOWN-BATTERY

$31.99

$

In Stock, only 2 left!

0

10

Toro 100-6170

MODULE-DELAY

$67.99

$

In Stock, only 2 left!

0

11

Toro 120-2244

HOURMETER

$76.99

$

In Stock, Qty 5

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

14

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 131-0738

CABLE-BATTERY, POSITIVE

$46.99

$

Usually ships in 3-6 days

0

16

Toro 121-4437

CABLE-BATTERY, NEGATIVE

$40.99

$

Usually ships in 3-6 days

0

17

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 32149-1

NUT-KEPS

$6.99

$

In Stock, only 2 left!

0

20

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

23

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

24

Toro 121-4319

HARNESS-WIRE

$86.99

$

Usually ships in 3-6 days

0

25

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

26

Toro 1-643267

INDICATOR-LED, RED

$27.99

$

In Stock, only 2 left!

0
