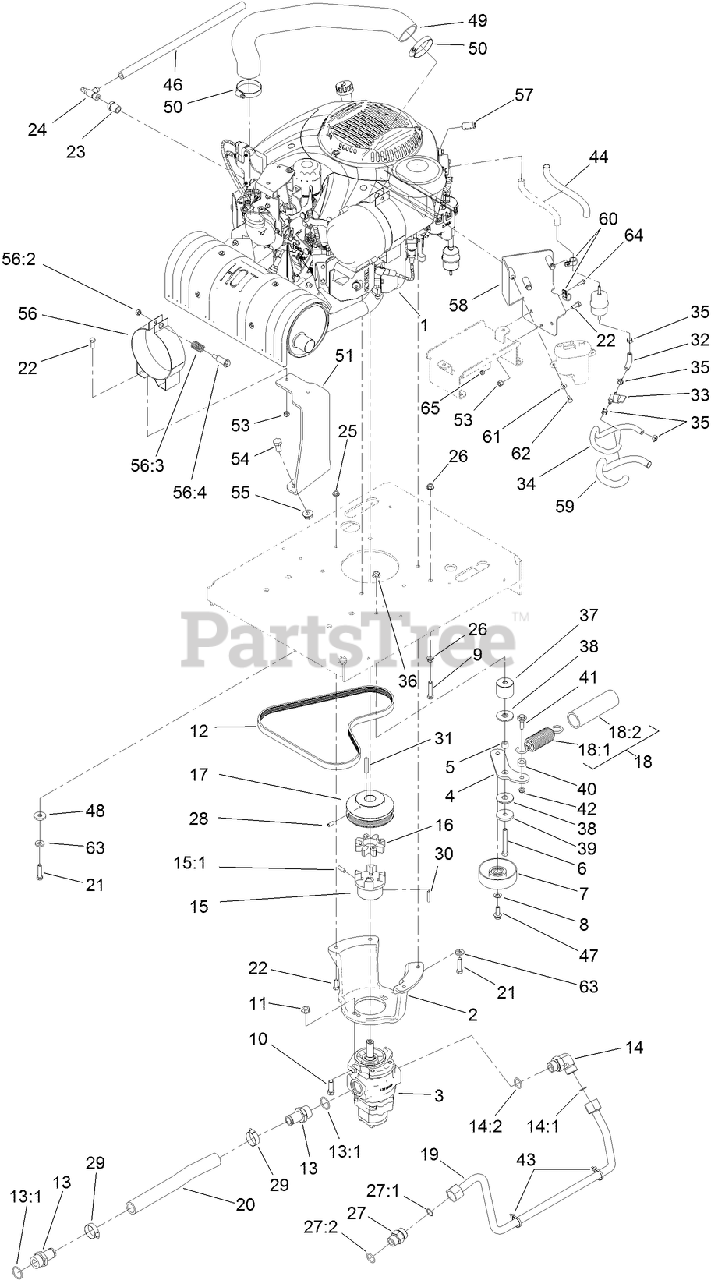

23214 (STX-38) - Toro EFI Stump Grinder with Intelli-Sweep (SN: 414000000 - 414673649) Engine Assembly Parts Diagram

EFI Stump Grinder with Intelli-Sweep

Engine Assembly Parts Diagram

  • Title

1

Toro 140-3630

ENGINE-KOHLER

Note: This is a Kohler part. Please use the Kohler Engine catalog.

$17831.99

$

Usually ships in 3-6 days

0

2

Toro 132-8665-0P

MOUNT-PUMP [PRIMED]

$

$

Currently unavailable

3

Toro 121-1952

GEAR PUMP ASM

$1787.99

$

Usually ships in 3-6 days

0

4

Toro 125-0252

ARM-IDLER

$91.99

$

In Stock, only 2 left!

0

5

Toro 1-413088

BUSHING-LEVER, LIFT

$11.99

$

In Stock, Qty 20+

0

6

Toro 323-14

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

7

Toro 95-8802

PULLEY-IDLER

$85.99

$

In Stock, only 2 left!

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

11

Toro 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

0

12

Toro 121-4326

BELT-V

$39.99

$

Usually ships in 3-6 days

0

13

Toro 354-78

FITTING-STR

$65.99

$

Usually ships in 3-6 days

0

13:1

Toro 237-146

O-RING

$5.49

$

In Stock, Qty 7

0

14

Toro 340-142

FITTING-ELBOW-90

$105.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

14:2

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

15

Toro 121-4330

See Supercession: 121-4330-03
(Superseded to 121-4330-03)

$343.99

$

Usually ships in 3-6 days

0

15:1

Toro 100-7594

SCREW-SET

$2.99

$

In Stock, only 1 left!

0

16

Toro 104-3542

SPIDER

$89.99

$

Usually ships in 3-6 days

0

17

Toro 121-1028

See Supercession: 121-1028-03
(Superseded to 121-1028-03)

$

$

Not available

18

Toro 138-3161

SPRING AND RETAINER KIT

$51.99

$

Usually ships in 3-6 days

0

18:1

Toro 121-4523

SPRING-EXTENSION

$48.99

$

In Stock, only 2 left!

0

18:2

Toro 138-3160

RETAINER-SPRING

$22.99

$

Usually ships in 3-6 days

0

19

Toro 121-1128

TUBE-HYD

$137.99

$

Usually ships in 3-6 days

0

20

Toro 121-4340

HOSE-SUCTION

$44.99

$

Usually ships in 3-6 days

0

21

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

23

Toro 103-1390

BUSHING

$6.99

$

Usually ships in 3-6 days

0

24

Toro 103-1965

VALVE-DRAIN, OIL

$62.99

$

Usually ships in 3-6 days

0

25

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

26

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

27

Toro 340-9

FITTING-HYD, STRAIGHT

$107.99

$

Usually ships in 3-6 days

0

27:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

27:2

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

28

Toro 3246-6

SCREW-SET, HSH

$8.49

$

In Stock, only 2 left!

0

29

Toro 2412-34

CLAMP-HOSE

$2.99

$

In Stock, only 2 left!

0

30

Toro 27-8590

KEY-SQUARE

$6.99

$

Usually ships in 3-6 days

0

31

Toro 608006

KEY-SQUARE

$5.99

$

In Stock, only 2 left!

0

32

Toro 99-9415

HOSE-FUEL

$3.99

$

In Stock, only 3 left!

0

33

Toro 1-603770

VALVE-FUEL

$9.49

$

In Stock, Qty 6

0

34

Toro 109-0298

HOSE-FUEL

$17.99

$

Usually ships in 3-6 days

0

35

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

36

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

37

Toro 125-0251

SPACER-IDLER

$69.99

$

In Stock, only 1 left!

0

38

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.99

$

In Stock, Qty 20+

0

39

Toro 110-9981

WASHER-PLAIN

$16.99

$

In Stock, Qty 20+

0

40

Toro 104-8426

SPACER

$10.99

$

In Stock, only 1 left!

0

41

Toro 614672

SCREW-SHOULDER, HWH

$3.49

$

In Stock, only 2 left!

0

42

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, only 4 left!

0

43

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

44

Toro 131-0736

SLEEVE-THERMAL

$6.49

$

Usually ships in 3-6 days

0

46

Toro 98-4667

HOSE

$29.99

$

Usually ships in 3-6 days

0

47

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

48

Toro 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

49

Toro 131-0616

HOSE-INTAKE, AIR

$105.99

$

Usually ships in 3-6 days

0

50

Toro 2412-42

CLAMP-HOSE

$11.99

$

Usually ships in 3-6 days

0

51

Toro 131-0730-01

PLATE-MOUNT, FILTER

$70.99

$

Usually ships in 3-6 days

0

53

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

54

Toro 325-4

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

55

Toro 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 10

0

56

Toro 100-4825

BAND-MOUNTING, AIR CLEANER

$128.99

$

Usually ships in 3-6 days

0

56:2

Toro 94-3653

BOLT

$23.99

$

Usually ships in 3-6 days

0

56:3

Toro 94-3654

SPRING

$11.99

$

Usually ships in 3-6 days

0

56:4

Toro 48-9510

NUT
(Superseded to 33024-00)

$1.49

$

Usually ships in 3-6 days

0

57

Toro 112-1540

FERRITE-SNAP ON

$26.99

$

Usually ships in 3-6 days

0

58

Toro 131-0728-01

BRACKET-PUMP, FUEL

$148.99

$

Usually ships in 3-6 days

0

59

Toro 131-0575

SLEEVE-THERMAL

$19.99

$

Usually ships in 3-6 days

0

60

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

61

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

62

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

63

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

64

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

65

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+
