23516 - Toro 18" Walk-Behind Aerator (SN: 313000001 - 313999999) (2013) Frame Assembly Parts Diagram

18" Walk-Behind Aerator

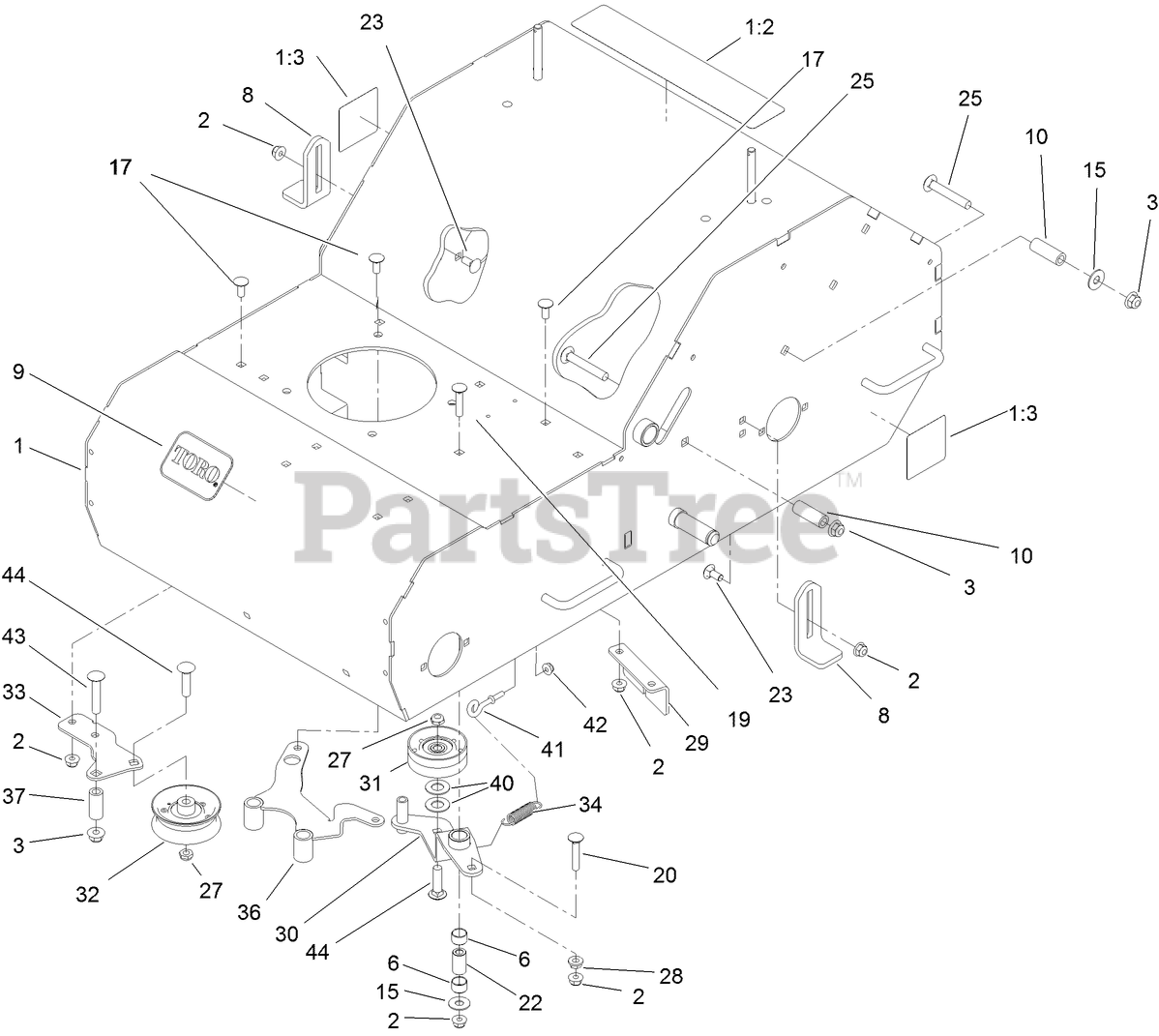

Frame Assembly Parts Diagram

  • Title

1

Toro 125-3855

FRAME ASM

$1152.99

$

Usually ships in 3-6 days

0

1:2

Toro 121-2009

DECAL-WARNING, AERATOR

$

$

Not available

1:3

Toro 121-6150

DECAL-WARNING

$2.99

$

Usually ships in 3-6 days

0

2

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 103-6111

BEARING

$8.49

$

In Stock, only 4 left!

0

8

Toro 121-4871

See Supercession: 116-9886
(Superseded to 116-9886)

$16.99

$

Usually ships in 3-6 days

0

9

Toro 70-2200

DECAL

$5.99

$

In Stock, only 4 left!

0

10

Toro 95-6448

SPACER

$6.49

$

Usually ships in 3-6 days

0

15

Toro 1126

WASHER-FLAT

$1.49

$

In Stock, Qty 6

0

17

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

19

Toro 3230-4

BOLT-CARR

$4.49

$

In Stock, Qty 20+

0

20

Toro 3230-5

BOLT-CAR

$0.99

$

In Stock, Qty 19

0

22

Toro 103-7108

BUSHING-ARM, IDLER

$28.99

$

Usually ships in 3-6 days

0

23

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

25

Toro 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

27

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, only 3 left!

0

28

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

29

Toro 125-3941-03

BRACKET-MOUNT, CABLE

$

$

Currently unavailable

30

Toro 127-4047-03

DISCONTINUED

$

$

Not available

31

Toro 116-6361

PULLEY

$64.99

$

In Stock, Qty 10

0

32

Toro 1-323285

See Supercession: 130-8362
(Superseded to 130-8362)

$56.99

$

In Stock, only 3 left!

0

33

Toro 127-4053-03

BRACKET-MOUNT, PULLEY

$

$

Currently unavailable

34

Toro 121-4409

SPRING-EXTENSION

$10.99

$

Usually ships in 3-6 days

0

36

Toro 127-4063-03

GUIDE-BELT

$

$

Currently unavailable

37

Toro 104-0151

SPACER

$15.99

$

In Stock, only 2 left!

0

40

Toro 117-1240

WASHER

$2.99

$

In Stock, Qty 5

0

41

Toro 611243

BOLT-EYE

$22.99

$

Usually ships in 3-6 days

0

42

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

43

Toro 117-9971

BOLT-CARRIAGE

$3.99

$

Usually ships in 3-6 days

0

44

Toro 3231-26

SCREW-CARR

$5.99

$

In Stock, only 4 left!

0
