23516 - Toro 18" Walk-Behind Aerator (SN: 313000001 - 313999999) (2013) Handle Assembly Parts Diagram

18" Walk-Behind Aerator

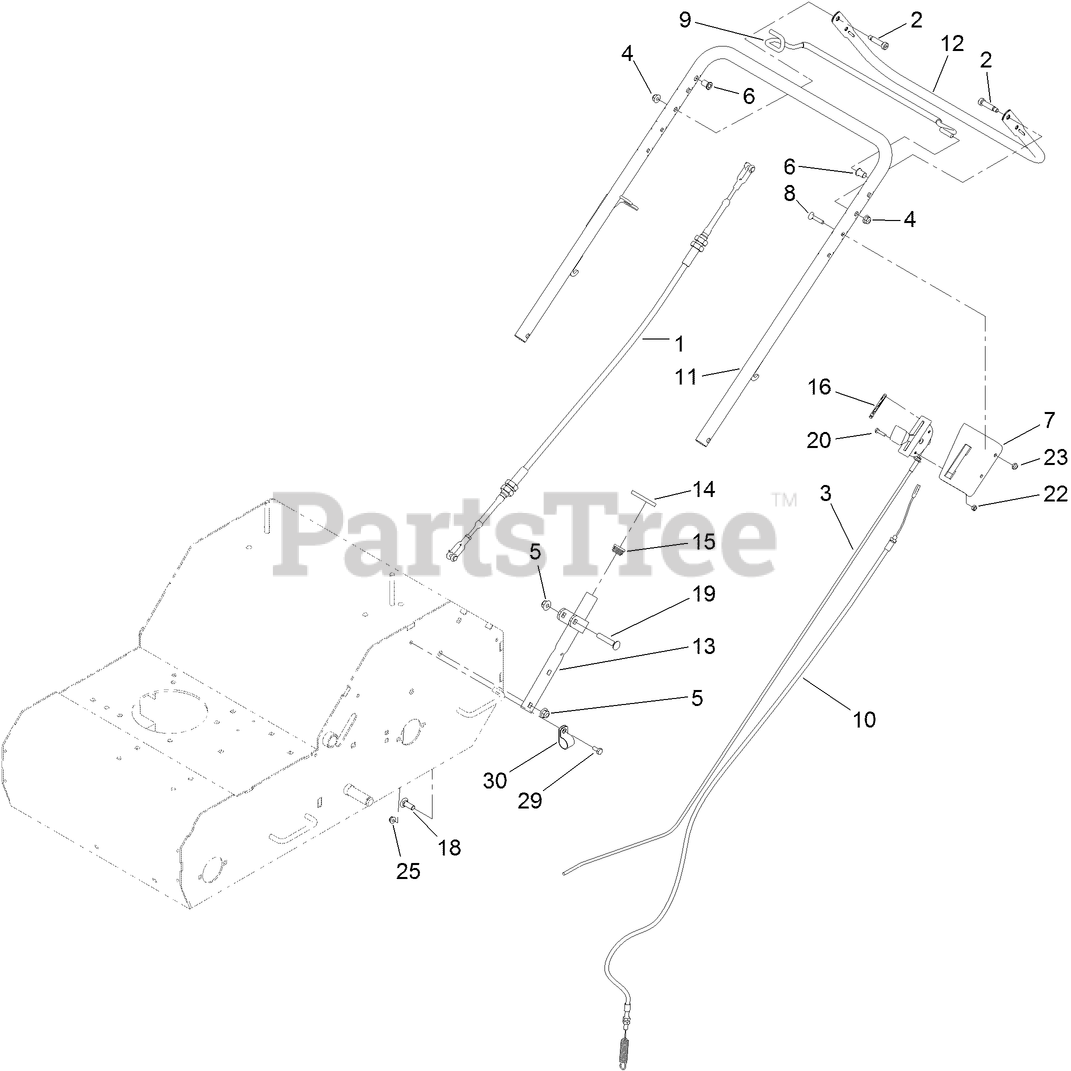

Handle Assembly Parts Diagram

  • Title

1

Toro 121-6230

CABLE-PUSH/PULL
(Superseded to 130-2160)

$

$

Not available

2

Toro 65-9340

BOLT-SHOULDER

$

$

Not available

3

Toro 103-6123

CONTROL-THROTTLE

$

$

Not available

4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 109-2713

BUSHING

$6.99

$

In Stock, only 3 left!

0

7

Toro 127-4058-03

BRACKET-THROTTLE

$66.99

$

Usually ships in 3-6 days

0

8

Toro 109-8144

BOLT-HANDLE
(Superseded to 117-7737)

$2.49

$

In Stock, Qty 7

0

9

Toro 127-4054

BAIL-TRACTION

$

$

Not available

10

Toro 121-4860

CABLE-IDLER

$80.99

$

Usually ships in 3-6 days

0

11

Toro 121-4862-03

HANDLE

$246.99

$

Usually ships in 3-6 days

0

12

Toro 125-3854-03

DISCONTINUED

$

$

Not available

13

Toro 121-4866-03

MOUNT-HANDLE

$71.99

$

Usually ships in 3-6 days

0

14

Toro 121-6202

RING-HANDLE LOCK

$8.99

$

Usually ships in 3-6 days

0

15

Toro 121-4870

PLUG

$2.99

$

Usually ships in 3-6 days

0

16

Toro 121-6222

DECAL-THROTTLE/CHOKE

$5.49

$

Usually ships in 3-6 days

0

18

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

19

Toro 3231-6

SCREW-CARR

$3.49

$

In Stock, Qty 18

0

20

Toro 3250-27

SCREW-PPH

$0.99

$

In Stock, only 1 left!

0

22

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 3296-56

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

25

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

29

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Toro 2412-41

CLAMP-R

$6.49

$

Usually ships in 3-6 days

0
