23740 - Toro Walk-Behind Rotary Power Broom (SN: 314000001 - 314999999) (2014) Wheel Clutch Sprocket Assembly Parts Diagram

Walk-Behind Rotary Power Broom

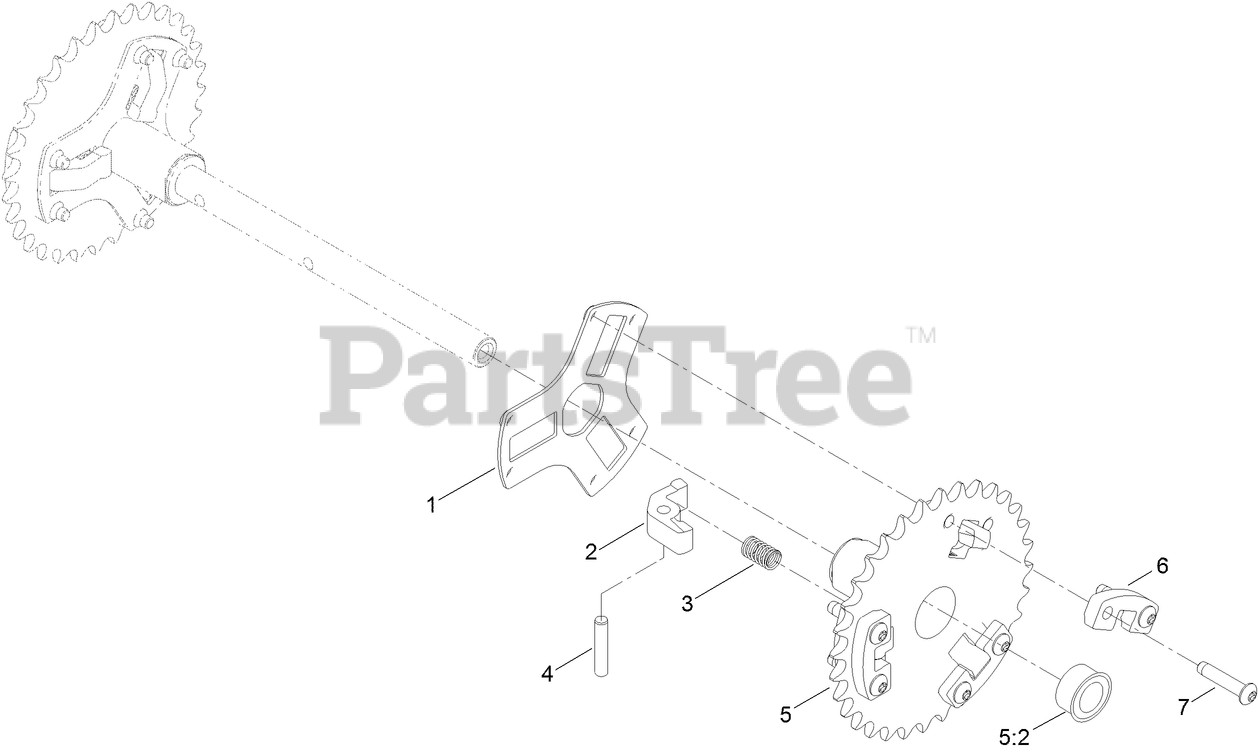

Wheel Clutch Sprocket Assembly Parts Diagram

  • Title

1

Toro 107-8886

RETAINER-PIN, PAWL
(Superseded to 136-7318)

$7.49

$

Usually ships in 3-6 days

0

2

Toro 107-8879

PAWL-CLUTCH

$8.99

$

Usually ships in 3-6 days

0

3

Toro 107-8885

SPRING-COMPRESSION

$2.99

$

In Stock, Qty 6

0

4

Toro 107-8899

PIN-DOWEL

Note: Apply light coat of oil before assembly.

$2.99

$

In Stock, only 2 left!

0

5

Toro 107-8895

32T SPROCKET ASM

$103.99

$

Usually ships in 3-6 days

0

5:2

Toro 108-2973

BUSHING-FLANGE

$6.99

$

In Stock, only 3 left!

0

6

Toro 107-8880

SUPPORT-PAWL

$7.49

$

In Stock, only 1 left!

0

7

Toro 108-0035

SCREW-TTH, THREAD ROLLING

$2.99

$

Usually ships in 3-6 days

0
