23741 - Toro Walk-Behind Rotary Power Broom (SN: 415000000 - 416299999) Broom and Deflector Assembly Parts Diagram

Walk-Behind Rotary Power Broom

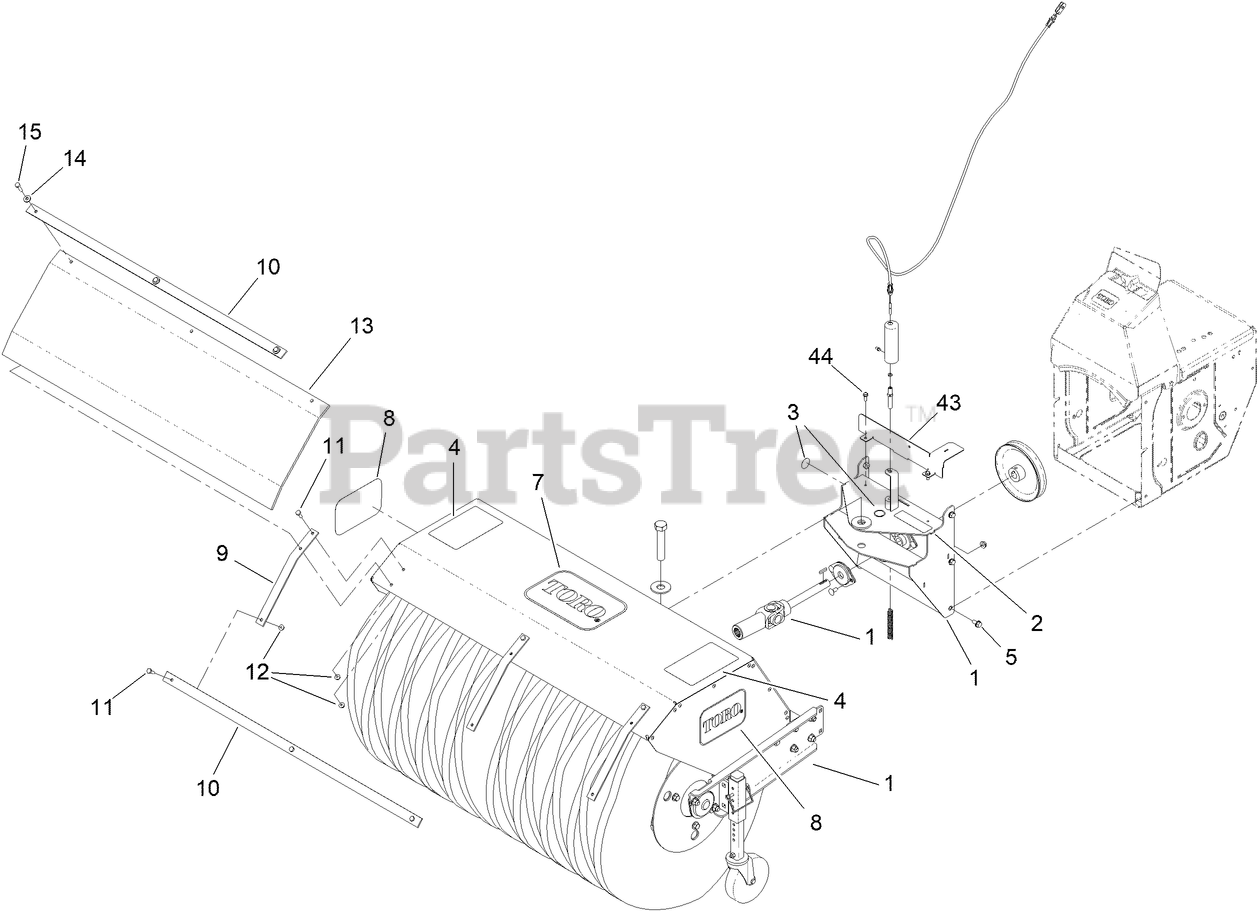

Broom and Deflector Assembly Parts Diagram

  • Title

1

Toro 144-0310

MB BROOM-TORO

$

$

Currently unavailable

2

Toro 112-9028

DECAL-COVER, MISSING

$25.99

$

In Stock, only 1 left!

0

3

Toro 115-2903

DECAL-GREASE

$8.49

$

Usually ships in 3-6 days

0

4

Toro 142-9656

DECAL-WARNING FLY OBJ-ENTANGLE

$

$

Currently unavailable

5

Toro 32144-14

SCREW-HWHTF

$5.49

$

In Stock, only 2 left!

0

7

Toro 66-6140

DECAL

$29.99

$

In Stock, only 1 left!

0

8

Toro 62-5550

DECAL

$11.99

$

In Stock, only 2 left!

0

9

Toro 116-8869-03

STRAP-SUPPORT, DEFLECTOR

$20.99

$

Usually ships in 3-6 days

0

10

Toro 116-8880-03

STRAP-SUPPORT, BROOM DEFLECTOR

$33.99

$

Usually ships in 3-6 days

0

11

Toro 137-3042

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

12

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Toro 116-8864

DEFLECTOR-BROOM

$81.99

$

Usually ships in 3-6 days

0

14

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

15

Toro 120-4654

SCREW-HHF

$6.99

$

Usually ships in 3-6 days

0

43

Toro 139-9928-01

PLATE-COVER

$45.99

$

Usually ships in 3-6 days

0

44

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0
