23800 (2024) - Toro Directional Drill (SN: 313000501 - 313999999) (2013) Engine Accessory Assembly Parts Diagram

Directional Drill

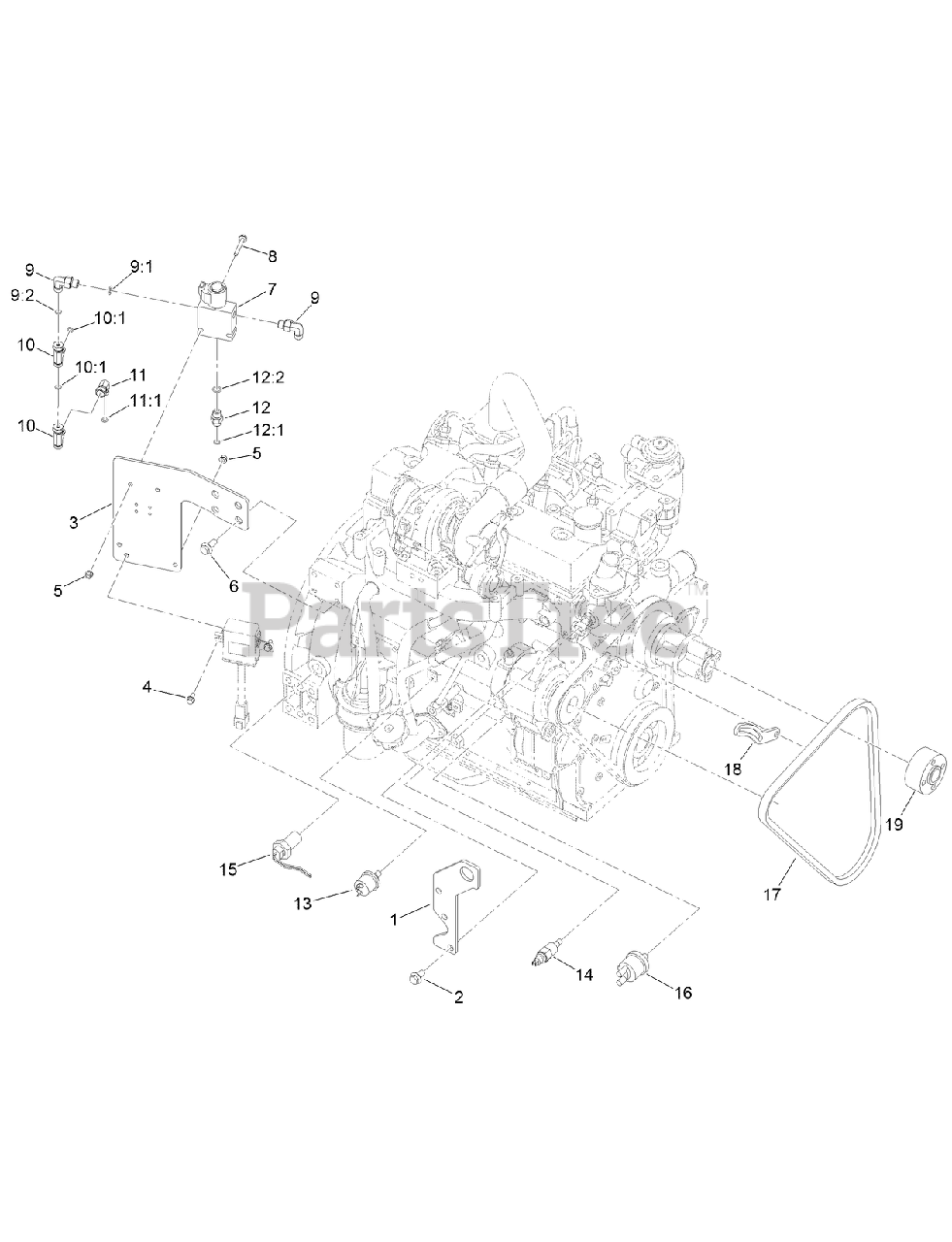

Engine Accessory Assembly Parts Diagram

  • Title

1

Toro AU110823-03

PLATE-POINT, HOIST

$

$

Currently unavailable

2

Toro 33105-020

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

3

Toro AU130554-03

PLATE-MOUNT

$

$

Not available

4

Toro 33103-016

SCREW-HHF

$6.99

$

In Stock, Qty 6

0

5

Toro 81-0130

NUT-FLANGE, NI

$1.99

$

Usually ships in 3-6 days

0

6

Toro 33105-025

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

7

Toro 125-4467

VALVE-SOLENOID

$349.99

$

Usually ships in 3-6 days

0

8

Toro 33103-045

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

9

Toro 340-82

FITTING-ELBOW, 90 DEG

$25.99

$

In Stock, only 2 left!

0

9:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

9:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

10

Toro 340-151

FITTING-HYD

$104.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-75

See Supercession: 237-21
(Superseded to 237-21)

$0.99

$

In Stock, Qty 10

0

11

Toro 92-2745

FITTING-ADAPTOR

$97.99

$

Usually ships in 3-6 days

0

11:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

12

Toro 340-1

FITTING-STRAIGHT

$11.99

$

Usually ships in 3-6 days

0

12:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

12:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

13

Toro AU8NG10019-28

SENSOR-PRESSURE, OIL

$

$

Currently unavailable

14

Toro AU8NG10019-29

SENSOR-COOLANT

$

$

Currently unavailable

15

Toro AU8NG10019-30

SENSOR-RPM, MAG PICKUP

$

$

Currently unavailable

16

Toro AU8NG10019-27

SENSOR-PRESSURE, OIL

$

$

Currently unavailable

17

Toro 127-5323

BELT-V

$

$

Currently unavailable

18

Toro 127-5324-03

BRACKET-ALTERNATOR

$

$

Currently unavailable

19

Toro 130-4471

SPACER-FAN

$

$

Currently unavailable
