23800 TE (2024) - Toro Directional Drill (SN: 314000501 - 314999999) (2014) 3 Spool Hydraulic Valve and Fitting Assembly Parts Diagram

Directional Drill

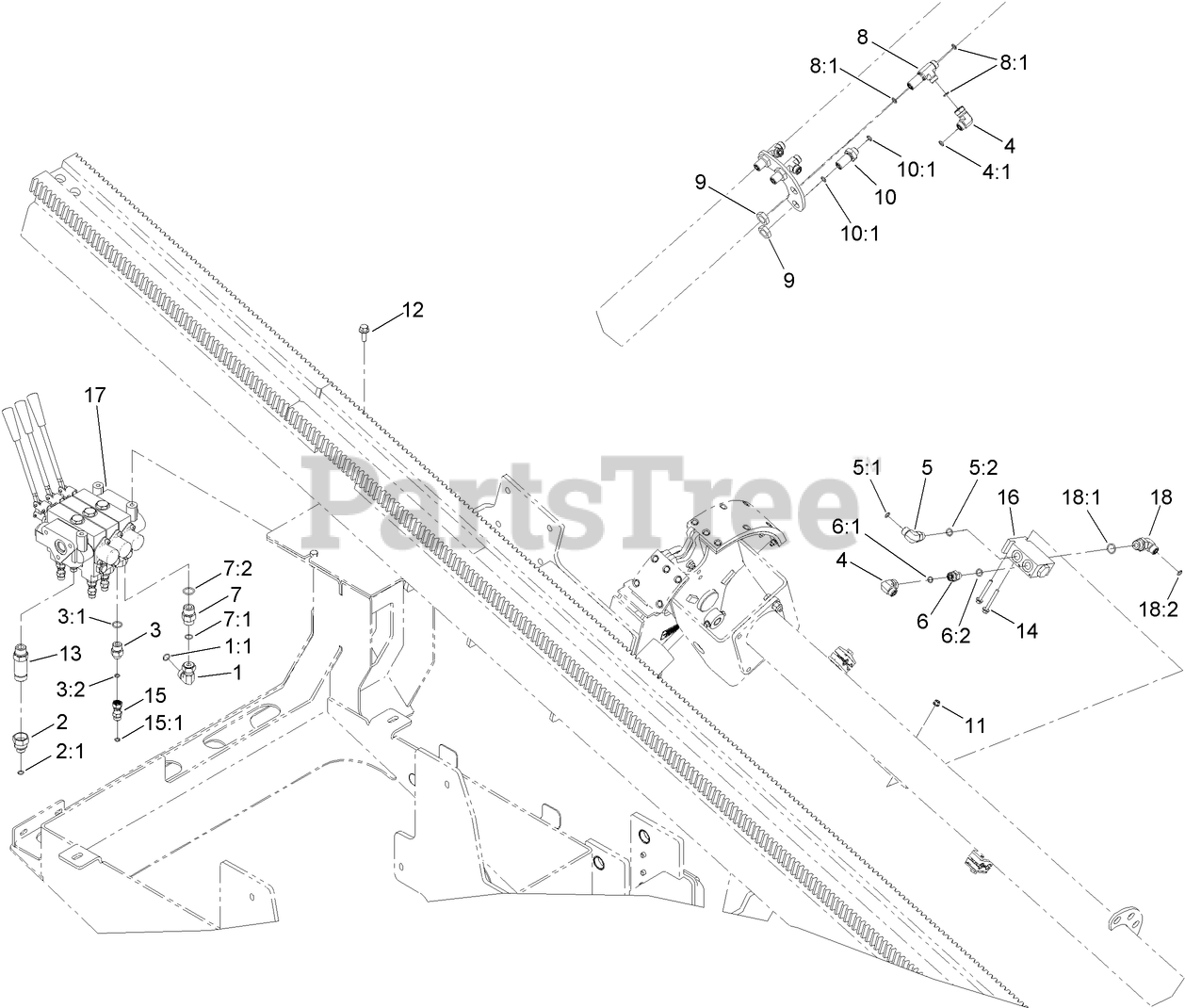

3 Spool Hydraulic Valve and Fitting Assembly Parts Diagram

  • Title

1

Toro 94-6031

FITTING-HYD

$80.99

$

Usually ships in 3-6 days

0

1:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

2

Toro 98-7067

FITTING-HYD

$50.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

3

Toro 340-133

FITTING-STR

$47.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

3:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

4

Toro 340-159

FITTING-HYD, 90 DEG

$73.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

5

Toro 340-77

FITTING-ELBOW, 90 DEG

$30.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

5:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

6

Toro 340-2

FITTING-STRAIGHT

$13.99

$

In Stock, only 2 left!

0

6:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

6:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

7

Toro 340-6

FITTING-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

7:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

8

Toro 340-68

FITTING-TEE, BULKHEAD

$57.99

$

In Stock, only 2 left!

0

8:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

9

Toro 340-70

NUT-LOCK

$2.99

$

Usually ships in 3-6 days

0

10

Toro 340-71

FITTING-STRAIGHT, BULKHEAD

$24.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

11

Toro 81-0130

NUT-FLANGE, NI

$1.99

$

Usually ships in 3-6 days

0

12

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

13

Toro AU8OA41010

CONNECTOR

$

$

Currently unavailable

14

Toro 33103-050

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

15

Toro AU111506

FITTING-STRAIGHT

$

$

Currently unavailable

15:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

16

Toro AU112323

HYD FLOW DIVIDER VALVE ASM

$

$

Currently unavailable

17

Toro AU8HV80153

3 SPOOL HYD VALVE ASM

$

$

Currently unavailable

17:1

Toro AU8HV80153-1

SVL REPLACEMENT SEAL KIT

Note: Not illustrated

$

$

Currently unavailable

17:2

Toro AU8HV80010-12

SEAL KIT (O-RING INLET SECTION)

Note: Not illustrated

$

$

Currently unavailable

17:3

Toro AU8HV80010-13

SEAL KIT (O-RING OUTLET SECTION)

Note: Not illustrated

$

$

Currently unavailable

18

Toro 340-18

FITTING-HYD, 90 DEG

$46.99

$

Usually ships in 3-6 days

0

18:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

18:2

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0
