23800 TE (2024) - Toro Directional Drill (SN: 314000501 - 314999999) (2014) 4 Section Hydraulic Valve and Fitting Assembly Parts Diagram

Directional Drill

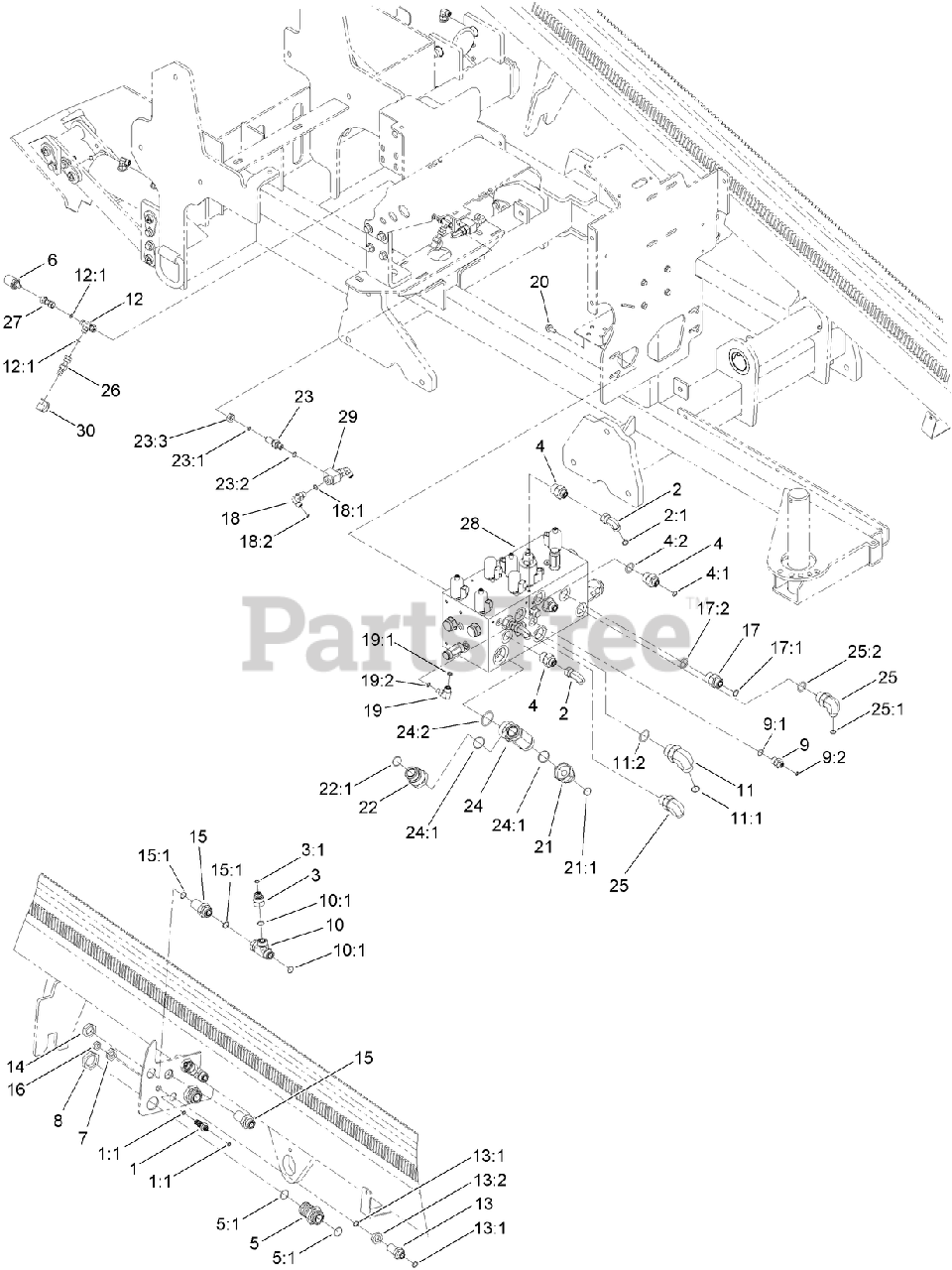

4 Section Hydraulic Valve and Fitting Assembly Parts Diagram

  • Title

1

Toro 94-1444

UNION-BULKHEAD

$53.99

$

Usually ships in 3-6 days

0

1:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

2

Toro 94-6031

FITTING-HYD

$80.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

3

Toro 98-7067

FITTING-HYD

$50.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

4

Toro 100-4240

FITTING-STR

$22.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

4:2

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

5

Toro 106-0060

ADAPTER-HYD

$114.99

$

Usually ships in 3-6 days

0

5:1

Toro 340-65

O-RING

$5.99

$

In Stock, Qty 5

0

6

Toro 125-6579

TRANSDUCER

$

$

Currently unavailable

7

Toro 340-127

NUT-BULKHEAD

$7.99

$

Usually ships in 3-6 days

0

8

Toro 340-128

NUT-BULKHEAD

$9.99

$

Usually ships in 3-6 days

0

9

Toro 340-133

FITTING-STR

$47.99

$

Usually ships in 3-6 days

0

9:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

9:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

10

Toro 340-147

FITTING-HYD, TEE

$130.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

11

Toro 340-15

FITTING-ELBOW 90

$75.99

$

Usually ships in 3-6 days

0

11:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

11:2

Toro 237-146

O-RING

$5.49

$

In Stock, Qty 7

0

12

Toro 340-151

FITTING-HYD

$104.99

$

Usually ships in 3-6 days

0

12:1

Toro 237-75

See Supercession: 237-21
(Superseded to 237-21)

$0.99

$

In Stock, Qty 10

0

13

Toro 340-161

FITTING-BULKHEAD

$115.99

$

Usually ships in 3-6 days

0

13:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

13:2

Toro 340-127

NUT-BULKHEAD

$7.99

$

Usually ships in 3-6 days

0

14

Toro 340-74

NUT-LOCK, BULKHEAD

$5.99

$

In Stock, only 2 left!

0

15

Toro 340-76

FITTING-BULKHEAD UNION, STRAIGHT

$60.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

16

Toro 340-78

NUT-LOCK

$2.99

$

Usually ships in 3-6 days

0

17

Toro 340-8

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

17:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

17:2

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

18

Toro 340-82

FITTING-ELBOW, 90 DEG

$25.99

$

In Stock, only 2 left!

0

18:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

18:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

19

Toro 340-97

FITTING-ELBOW, 90 DEG

$48.99

$

Usually ships in 3-6 days

0

19:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

19:2

Toro 237-78

O-RING

$4.99

$

In Stock, Qty 11

0

20

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

21

Toro 125-4533

FITTING-STRAIGHT

$

$

Currently unavailable

21:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

22

Toro AU8OA82016

FITTING-REDUCER

$

$

Currently unavailable

22:1

Toro 340-65

O-RING

$5.99

$

In Stock, Qty 5

0

23

Toro AU8OAA0406

FITTING-STRAIGHT

$

$

Currently unavailable

23:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

23:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

23:3

Toro 340-78

NUT-LOCK

$2.99

$

Usually ships in 3-6 days

0

24

Toro AU8OB32020

FITTING-TEE

$

$

Currently unavailable

24:1

Toro 340-64

O-RING

$6.99

$

Usually ships in 3-6 days

0

24:2

Toro 237-101

O-RING

$3.99

$

Usually ships in 3-6 days

0

25

Toro 340-131

FITTING-HYD, 90 DEG

$159.99

$

Usually ships in 3-6 days

0

25:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

25:2

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

26

Toro 115-8886

NIPPLE-TEST

$80.99

$

Usually ships in 3-6 days

0

27

Toro AU8SA60404

FITTING-STRAIGHT

$47.99

$

Usually ships in 3-6 days

0

28

Toro AU114175

4 SECTION HYD VALVE ASM

$

$

Not available

29

Toro AU270083

VALVE-SHUTTLE, LOAD

$

$

Currently unavailable

30

Toro 354-79

CAP-DUST

$10.99

$

Usually ships in 3-6 days

0
