23800 TE (2024) - Toro Directional Drill (SN: 314000501 - 314999999) (2014) Fuel Tank and Hydraulic Tank Assembly Parts Diagram

Directional Drill

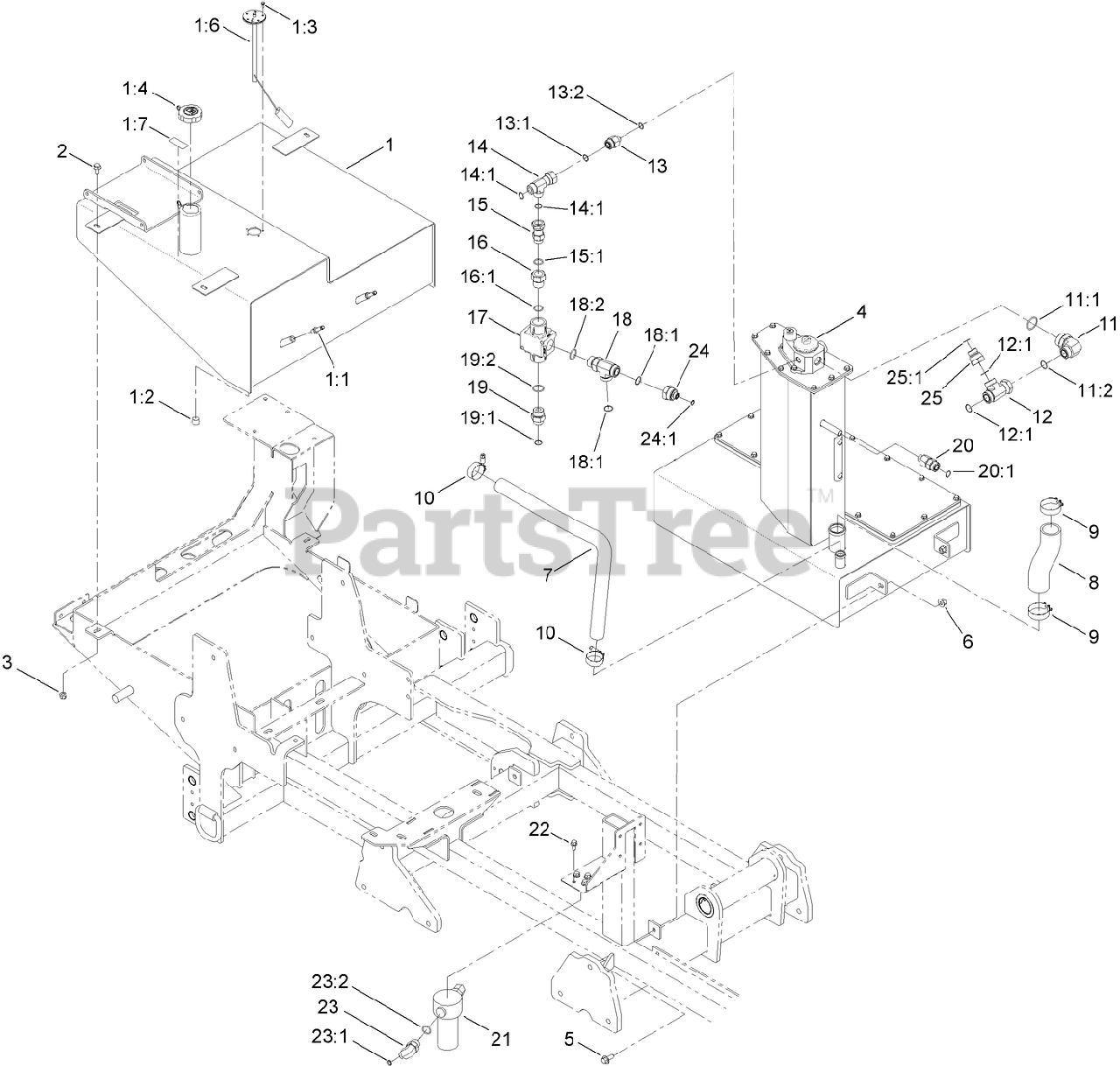

Fuel Tank and Hydraulic Tank Assembly Parts Diagram

  • Title

1

Toro 125-4516

FUEL TANK ASM

$

$

Currently unavailable

1:1

Toro AU217-151

STEM-STRAIGHT, BEAD

$28.99

$

Usually ships in 3-6 days

0

1:2

Toro AU217-439

PLUG-PIPE, HEX SOCKET

$1.99

$

Usually ships in 3-6 days

0

1:3

Toro 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 20+

0

1:4

Toro AU102188

CAP-DIESEL FUEL W/ LOCK

$

$

Currently unavailable

1:6

Toro AU118484A1

SENDER-FUEL

$

$

Not available

1:7

Toro 114-9600

DECAL-LOW SULFUR

$14.99

$

In Stock, only 3 left!

0

2

Toro 33105-025

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

3

Toro 103-9511

NUT-LOCK, NI

$2.99

$

In Stock, only 3 left!

0

4

Toro 125-4511

HYDRAULIC TANK ASM

$

$

Currently unavailable

5

Toro 33106-030

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

6

Toro 115-1115

NUT-LOCK, HHF

$2.99

$

Usually ships in 3-6 days

0

7

Toro AU113878

HOSE

$

$

Currently unavailable

8

Toro AU113880

HOSE

$

$

Currently unavailable

9

Toro AU8CL14032

CLAMP, T-BOLT

$

$

Currently unavailable

10

Toro AU109908

CLAMP-HOSE (T-BOLT)

$

$

Currently unavailable

11

Toro 340-79

FITTING-ELBOW 90

$234.99

$

Usually ships in 3-6 days

0

11:1

Toro 237-101

O-RING

$3.99

$

Usually ships in 3-6 days

0

11:2

Toro 340-65

O-RING

$5.99

$

In Stock, Qty 5

0

12

Toro AU8OR81616

FITTING-TEE

$

$

Currently unavailable

12:1

Toro 340-65

O-RING

$5.99

$

In Stock, Qty 5

0

13

Toro 98-9921

FITTING-STRAIGHT

$57.99

$

Usually ships in 3-6 days

0

13:1

Toro 237-145

See Supercession: 237-58
(Superseded to 237-58)

$2.99

$

Usually ships in 3-6 days

0

13:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

14

Toro AU8OR81212

FITTING-TEE

$

$

Currently unavailable

14:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

15

Toro 106-2009

FITTING-HYD, SWIVEL

$94.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

16

Toro AU8SA31612

FITTING-STRAIGHT

$

$

Currently unavailable

16:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

17

Toro AU8HV01001

VALVE-THERMOSTAT

$

$

Currently unavailable

18

Toro 104-3795

FITTING-TEE

$227.99

$

Usually ships in 3-6 days

0

18:1

Toro 340-65

O-RING

$5.99

$

In Stock, Qty 5

0

18:2

Toro 237-146

O-RING

$5.49

$

In Stock, Qty 7

0

19

Toro 340-91

FITTING-STR

$58.99

$

Usually ships in 3-6 days

0

19:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

19:2

Toro 237-146

O-RING

$5.49

$

In Stock, Qty 7

0

20

Toro AU8TA61212

FITTING-STRAIGHT

$

$

Currently unavailable

20:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

21

Toro AU8FL20024

FILTER-HYD, 350PSI (6 MICRON)

$

$

Currently unavailable

22

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

23

Toro 340-131

FITTING-HYD, 90 DEG

$159.99

$

Usually ships in 3-6 days

0

23:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

23:2

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

24

Toro AU8OA80816

FITTING-REDUCER

$

$

Not available

24:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

25

Toro AU8OA81216

FITTING-REDUCER

$

$

Currently unavailable

25:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0
