23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Battery Cables Assembly Parts Diagram

Directional Drill

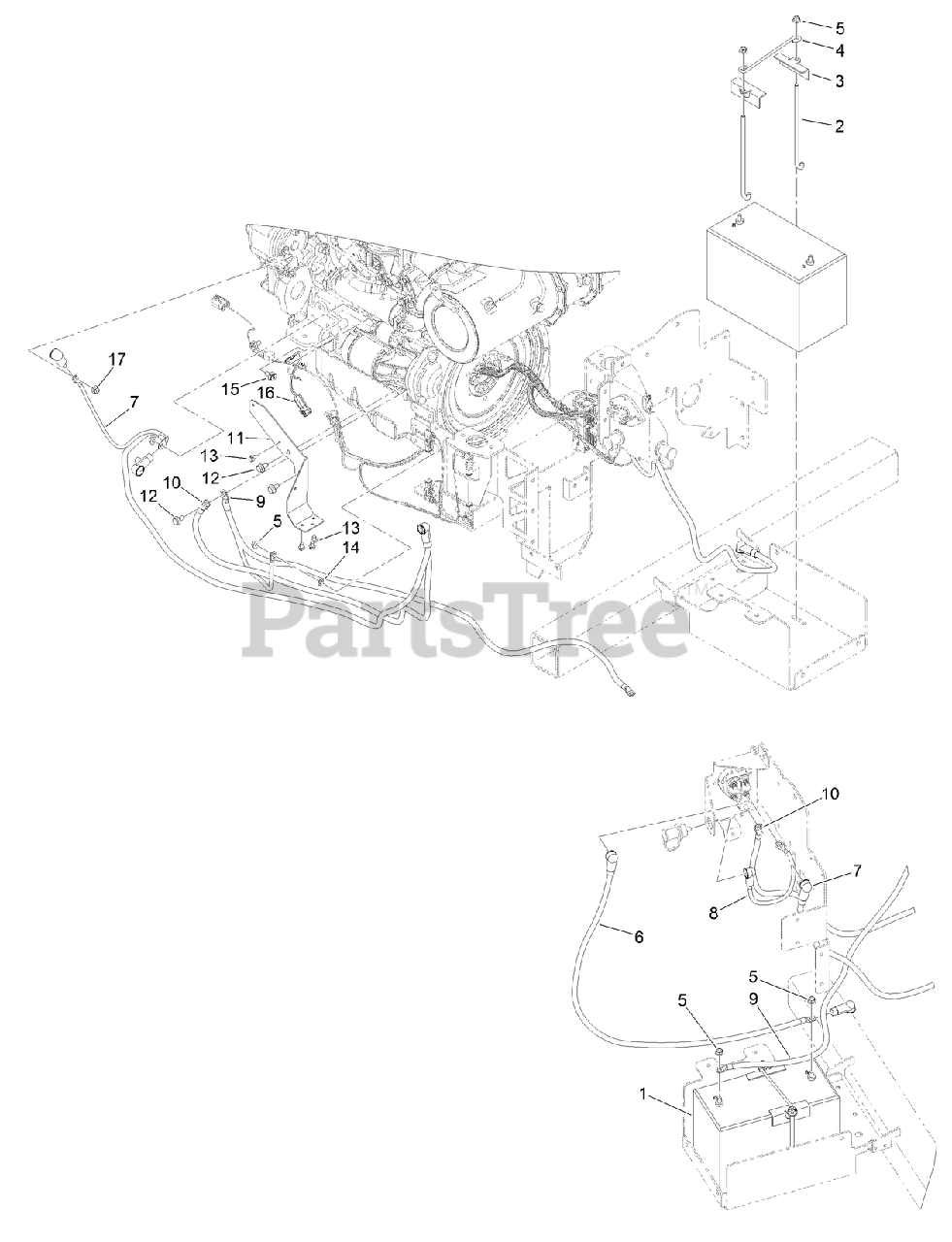

Battery Cables Assembly Parts Diagram

  • Title

1

BATTERY (1000CCA, WET)

Note: Not serviced separately

$

$

Not available

1

BATTERY (1000CCA, WET)

Note: Obtain locally.

$

$

Not available

2

Toro AUH436311

BOLT-HOLDDOWN, BATTERY

$50.99

$

Usually ships in 3-6 days

0

3

Toro AUD125079

ANGLE-HOLDDOWN, BATTERY

$32.99

$

Usually ships in 3-6 days

0

4

Toro AUD135073

BRACKET-HOLDDOWN, BATTERY

$59.99

$

Usually ships in 3-6 days

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 122-0864

CABLE-BATTERY, POSITIVE

$

$

Currently unavailable

7

Toro 122-0865

CABLE-BATTERY, POSITIVE

$

$

Currently unavailable

8

Toro 122-0867

CABLE-BATTERY, POSITIVE

$

$

Currently unavailable

9

Toro 122-0868

CABLE-BATTERY, NEGATIVE

$

$

Currently unavailable

10

Toro 122-0869

CABLE-BATTERY, NEGATIVE

$

$

Currently unavailable

11

Toro 122-0879-03

PLATE-ELECTRICAL, ENGINE

$

$

Currently unavailable

12

Toro 33105-020

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

13

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, only 3 left!

0

14

Toro 3255-9

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

15

Toro 32180-031

CLIP-TREE (W/TIE)

$8.99

$

Usually ships in 3-6 days

0

16

Toro 108-9470

HARNESS-WIRE, FUSIBLE LINK

$67.99

$

Usually ships in 3-6 days

0

17

Toro 33004-00

NUT-HF

$0.99

$

In Stock, Qty 6

0
