23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Crankshaft and Piston Assembly Parts Diagram

Directional Drill

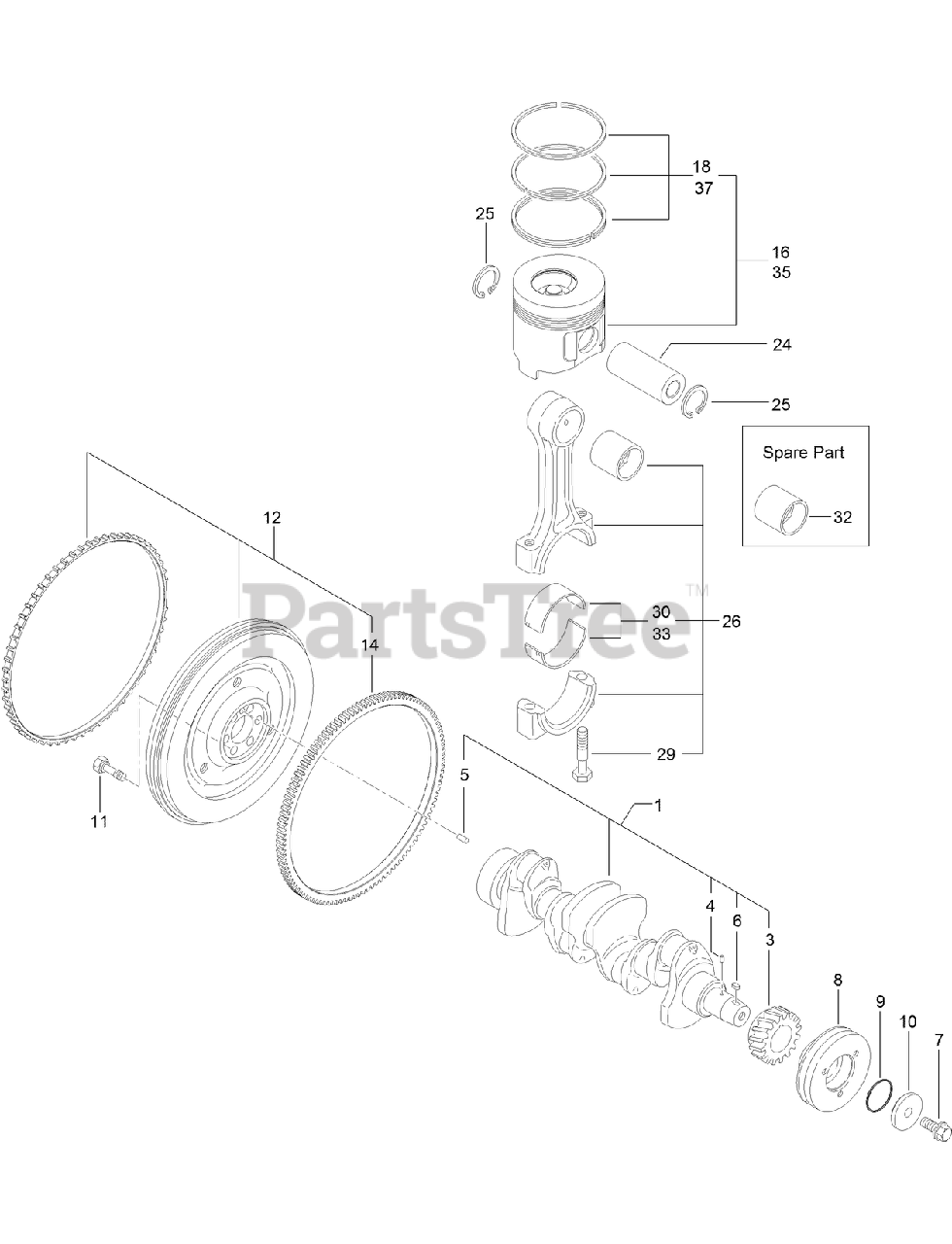

Crankshaft and Piston Assembly Parts Diagram

  • Title

1

Toro 133-6663

CRANKSHAFT ASM

$4655.99

$

Usually ships in 3-6 days

0

3

Toro 133-6645

GEAR-CRANKSHAFT

$351.99

$

Usually ships in 3-6 days

0

4

Toro 133-6611

PIN

$8.49

$

Usually ships in 3-6 days

0

5

Toro 133-6612

PIN-PARALLEL

$8.99

$

Usually ships in 3-6 days

0

6

Toro 125-7185

KEY

$2.99

$

Usually ships in 3-6 days

0

7

Toro 133-6670

BOLT

$51.99

$

Usually ships in 3-6 days

0

8

Toro 133-6662

PULLEY-V

$348.99

$

Usually ships in 3-6 days

0

9

Toro 133-6693

PACKING-WASHER

$75.99

$

Usually ships in 3-6 days

0

10

Toro 133-6694

WASHER-PULLEY, V

$95.99

$

Usually ships in 3-6 days

0

11

Toro 133-6610

BOLT-FLYWHEEL

$87.99

$

Usually ships in 3-6 days

0

12

Toro 137-5177

FLYWHEEL ASM

$2851.99

$

Usually ships in 3-6 days

0

14

Toro 133-6646

GEAR-RING

$150.99

$

Usually ships in 3-6 days

0

16

Toro 133-6766

PISTON ASM

$

$

Currently unavailable

18

Toro 133-6729

RING ASM

$122.99

$

Usually ships in 3-6 days

0

24

Toro 133-6607

PIN-PISTON

$312.99

$

Usually ships in 3-6 days

0

25

Toro 133-6795

RING

$6.49

$

Usually ships in 3-6 days

0

26

Toro 133-6647

CONNECTING ROD ASM

$849.99

$

Usually ships in 3-6 days

0

29

Toro 133-6648

BOLT-ROD, CONNECTING

$10.99

$

Usually ships in 3-6 days

0

30

Toro 133-6649

BEARING-PIN, CRANK

$28.99

$

Usually ships in 3-6 days

0

32

Toro 133-6651

BEARING-PIN, PISTON

$38.99

$

Usually ships in 3-6 days

0

33

Toro 133-6650

BEARING

$19.99

$

Usually ships in 3-6 days

0

35

Toro 133-6767

PISTON ASM

$590.99

$

Usually ships in 3-6 days

0

37

Toro 133-6730

RING ASM

$399.99

$

Usually ships in 3-6 days

0
