23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Cylinder Head and Cover Assembly Parts Diagram

Directional Drill

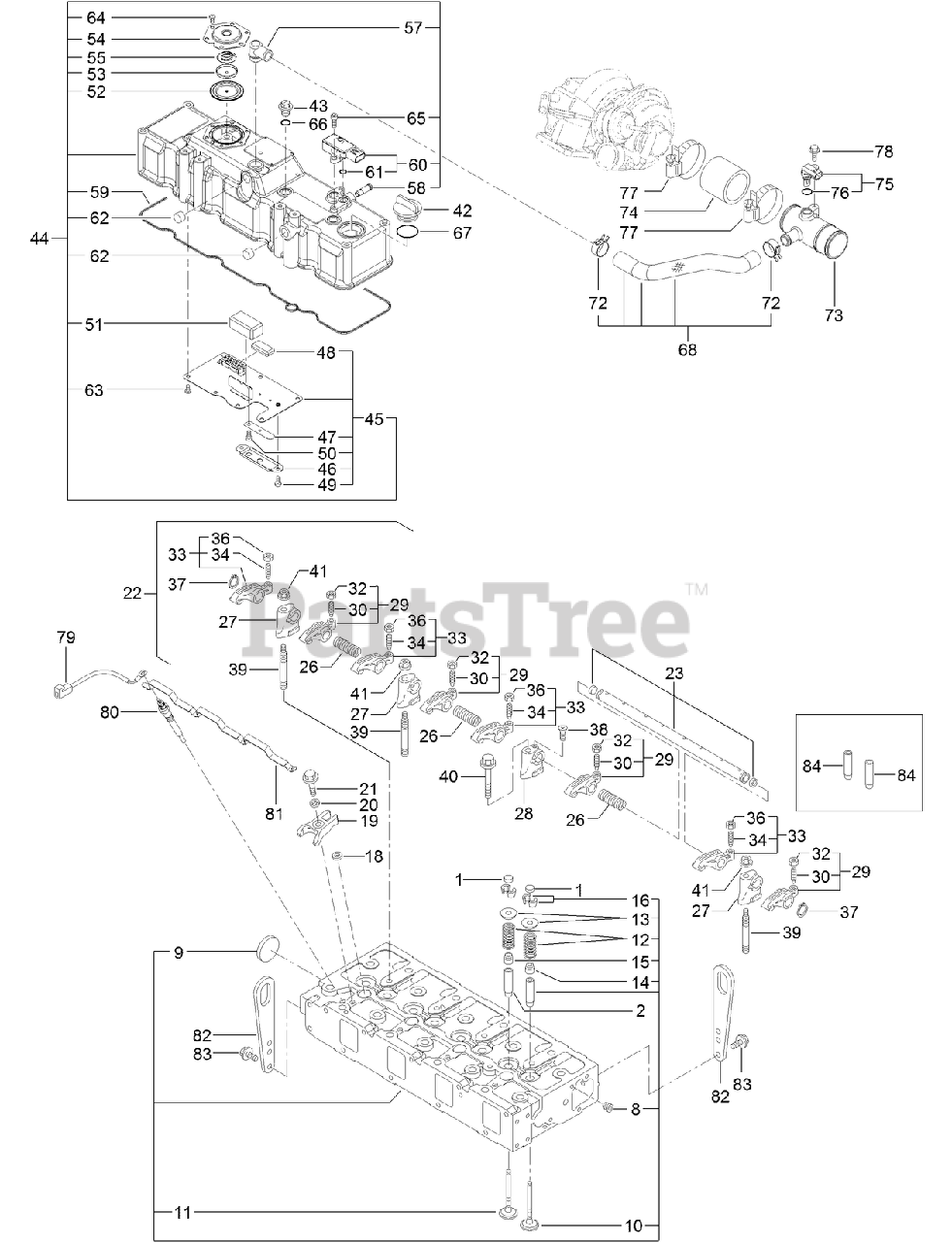

Cylinder Head and Cover Assembly Parts Diagram

  • Title

1

Toro 127-2996

CAP-VALVE

$5.99

$

Usually ships in 3-6 days

0

2

Toro 137-5184

CYLINDER HEAD ASM

$6337.99

$

Usually ships in 3-6 days

0

8

Toro 133-6797

PLUG

$7.49

$

Usually ships in 3-6 days

0

9

Toro 125-7240

PLUG

$4.99

$

Usually ships in 3-6 days

0

10

Toro 137-5174

VALVE-INTAKE

$139.99

$

Usually ships in 3-6 days

0

11

Toro 133-6634

VALVE-EXHAUST

$23.99

$

Usually ships in 3-6 days

0

12

Toro 133-6635

SPRING-VALVE

$11.99

$

Usually ships in 3-6 days

0

13

Toro 127-3013

RETAINER-SPRING

$

$

Currently unavailable

14

Toro 127-2986

SEAL-STEM, VALVE

$7.49

$

Usually ships in 3-6 days

0

15

Toro 127-3027

SEAL-STEM, VALVE

$7.99

$

Usually ships in 3-6 days

0

16

Toro 127-3186

PIN-COTTER

$18.99

$

Usually ships in 3-6 days

0

18

Toro 127-3021

GASKET-INJECTOR

$5.49

$

Usually ships in 3-6 days

0

19

Toro 133-6707

RETAINER-INJECTOR

$131.99

$

Usually ships in 3-6 days

0

20

Toro 127-2980

WASHER-INJECTOR

$20.99

$

Usually ships in 3-6 days

0

21

Toro 125-7217

BOLT

$5.49

$

Usually ships in 3-6 days

0

22

Toro 133-6636

ARM SUPPORT ASM

$1105.99

$

Usually ships in 3-6 days

0

23

Toro 133-6637

ROCKER SHAFT ASM

$115.99

$

Usually ships in 3-6 days

0

26

Toro 133-6638

SPRING-ARM, ROCKER

$9.99

$

Usually ships in 3-6 days

0

27

Toro 133-6639

SUPPORT-ARM, ROCKER

$60.99

$

Usually ships in 3-6 days

0

28

Toro 133-6640

SUPPORT-ARM, ROCKER

$60.99

$

Usually ships in 3-6 days

0

29

Toro 133-6642

ARM-ROCKER

$99.99

$

Usually ships in 3-6 days

0

30

Toro 125-7013

SCREW-ADJUST, VALVE

$28.99

$

Usually ships in 3-6 days

0

32

Toro 125-7014

NUT

$6.49

$

Usually ships in 3-6 days

0

33

Toro 133-6643

ARM-ROCKER

$99.99

$

Usually ships in 3-6 days

0

34

Toro 125-7013

SCREW-ADJUST, VALVE

$28.99

$

Usually ships in 3-6 days

0

36

Toro 125-7014

NUT

$6.49

$

Usually ships in 3-6 days

0

37

Toro 133-6794

RING

$4.49

$

Usually ships in 3-6 days

0

38

Toro 133-2503

SCREW

$3.99

$

Usually ships in 3-6 days

0

39

Toro 133-6641

STUD

$14.99

$

Usually ships in 3-6 days

0

40

Toro 133-2498

BOLT

$8.49

$

Usually ships in 3-6 days

0

41

Toro 125-7230

NUT

$3.49

$

Usually ships in 3-6 days

0

42

Toro 125-6972

COVER-FILLER

$13.99

$

In Stock, only 3 left!

0

43

Toro 125-6974

KNOB

$7.99

$

Usually ships in 3-6 days

0

44

Toro 133-6755

CYLINDER HEAD COVER ASM

$1453.99

$

Usually ships in 3-6 days

0

45

Toro 133-6704

PLATE-BAFFLE

$258.99

$

Usually ships in 3-6 days

0

46

Toro 133-6705

COVER-PLATE, SPRING

$47.99

$

Usually ships in 3-6 days

0

47

Toro 133-6696

SPRING-PLATE

$6.49

$

Usually ships in 3-6 days

0

48

Toro 133-6661

BAFFLE-BREATHER

$16.99

$

Usually ships in 3-6 days

0

49

Toro 133-2502

SCREW

$4.49

$

Usually ships in 3-6 days

0

50

Toro 133-2505

SCREW

$3.99

$

Usually ships in 3-6 days

0

51

Toro 125-7118

BAFFLE-BREATHER

$22.99

$

Usually ships in 3-6 days

0

52

Toro 125-6959

DIAPHRAGM

$67.99

$

Usually ships in 3-6 days

0

53

Toro 125-6960

PLATE

$19.99

$

Usually ships in 3-6 days

0

54

Toro 125-6961

PLATE-BREATHER

$33.99

$

Usually ships in 3-6 days

0

55

Toro 125-6962

SPRING-DIAPHRAGM

$22.99

$

Usually ships in 3-6 days

0

57

Toro 133-6603

ELBOW

$28.99

$

Usually ships in 3-6 days

0

58

Toro 127-3026

JOINT

$63.99

$

Usually ships in 3-6 days

0

59

Toro 132-4907

GASKET-COVER, HEAD

$73.99

$

Usually ships in 3-6 days

0

60

Toro 127-3029

SENSOR-PRESSURE

$1067.99

$

Usually ships in 3-6 days

0

61

Toro 127-3032

O RING-SENSOR, PRESSURE

$23.99

$

Usually ships in 3-6 days

0

62

Toro 125-6913

PLUG

$9.99

$

Usually ships in 3-6 days

0

63

Toro 125-7186

SCREW

$3.49

$

Usually ships in 3-6 days

0

64

Toro 125-7186

SCREW

$3.49

$

Usually ships in 3-6 days

0

65

Toro 127-3184

BOLT

$5.49

$

Usually ships in 3-6 days

0

66

Toro 93-0418

O-RING

$8.99

$

In Stock, only 3 left!

0

67

Toro 125-7197

O-RING

$3.49

$

Usually ships in 3-6 days

0

68

Toro 137-5183

BREATHER HOSE ASM

$110.99

$

Usually ships in 3-6 days

0

72

Toro 125-7040

CLIP-HOSE

$9.99

$

Usually ships in 3-6 days

0

73

Toro 137-5169

BREATHER JOINT

$175.99

$

Usually ships in 3-6 days

0

74

Toro 127-3133

HOSE-INTAKE

$52.99

$

Usually ships in 3-6 days

0

75

Toro 127-3030

SENSOR-TEMP, AIR

$255.99

$

Usually ships in 3-6 days

0

76

Toro 127-3033

O-RING

$15.99

$

Usually ships in 3-6 days

0

77

Toro 125-7190

CLAMP-HOSE

$14.99

$

Usually ships in 3-6 days

0

78

Toro 125-7208

BOLT

$4.49

$

Usually ships in 3-6 days

0

79

Toro 131-2704

HARNESS-WIRE

$32.99

$

Usually ships in 3-6 days

0

80

Toro 127-2991

PLUG-GLOW

$198.99

$

Usually ships in 3-6 days

0

81

Toro 133-6750

CONNECTOR-PLUG, GLOW

$56.99

$

Usually ships in 3-6 days

0

82

Toro 125-7111

LIFTER

$10.99

$

Usually ships in 3-6 days

0

83

Toro 125-7214

BOLT

$4.49

$

Usually ships in 3-6 days

0

84

Toro 127-2997

GUIDE-VALVE

$13.99

$

Usually ships in 3-6 days

0
