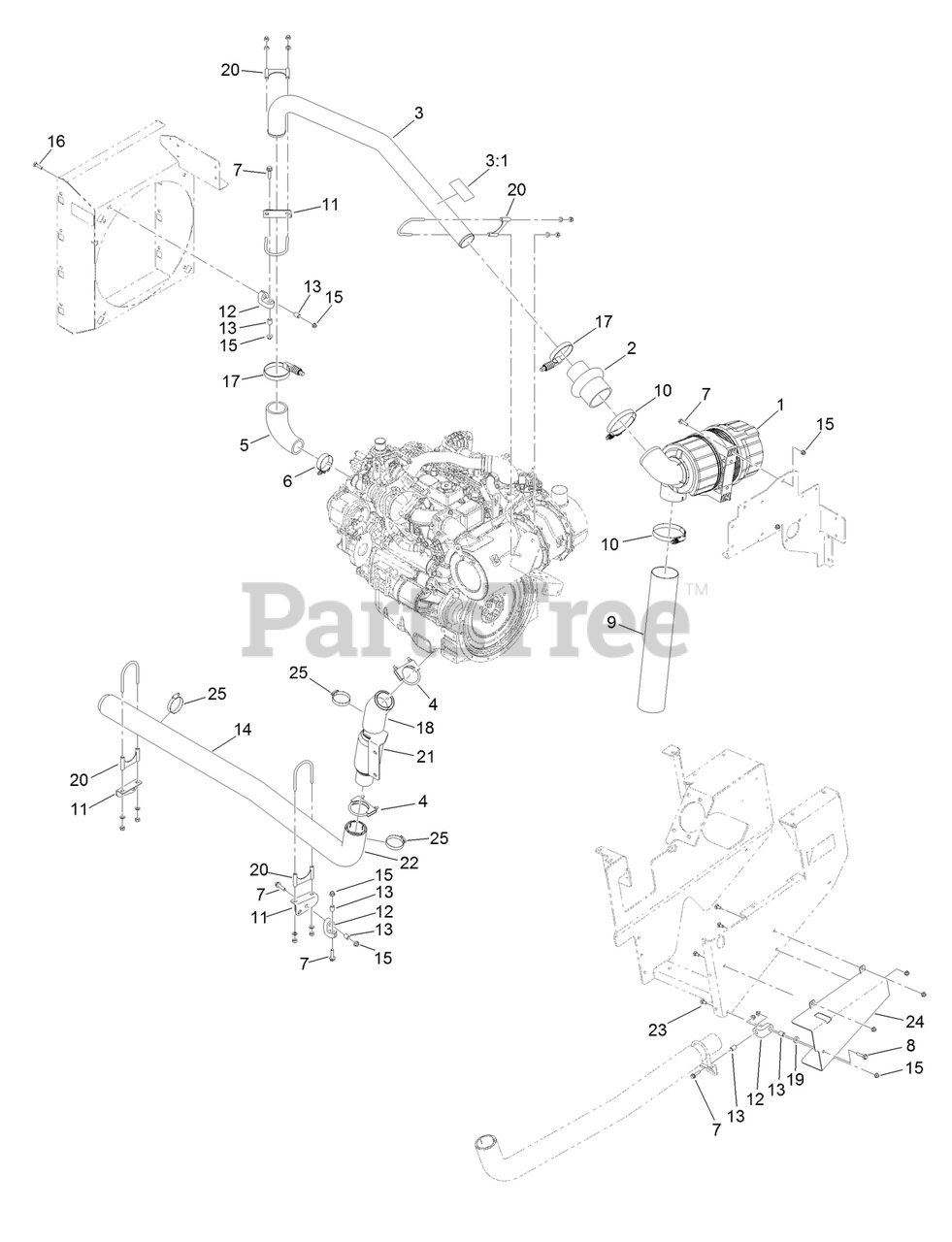

23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Engine Intake and Exhaust Assembly Parts Diagram

Directional Drill

Engine Intake and Exhaust Assembly Parts Diagram

  • Title

1

Toro 130-9160

AIR FILTER ASM

$628.99

$

Usually ships in 3-6 days

0

2

Toro 131-8861

HOSE-HUMP

$

$

Currently unavailable

3

Toro 137-8385

TUBE ASM-AIR INTAKE

$

$

Currently unavailable

3:1

Toro 125-6129

DECAL-WARNING, HOT SURFACE

$

$

Currently unavailable

4

Toro 112-7310

CLAMP-MUFFLER

$9.99

$

Usually ships in 3-6 days

0

5

Toro 131-8862

HOSE

$

$

Currently unavailable

6

Toro AU8CL14032

CLAMP, T-BOLT

$

$

Currently unavailable

7

Toro 119-4036

SCREW-HHF

$1.49

$

In Stock, Qty 6

0

8

Toro 115-1794

SCREW-HHF

$2.49

$

In Stock, Qty 6

0

9

Toro 131-8852

HOSE-INLET, AIR

$

$

Currently unavailable

10

Toro 131-2229

CLAMP-HOSE

$33.99

$

Usually ships in 3-6 days

0

11

Toro 131-8898-03

BRACKET-TUBE, INTAKE

$

$

Currently unavailable

12

Toro 95-5622

HANGER-RUBBER

$54.99

$

Usually ships in 3-6 days

0

13

Toro 93-5023

SPACER

$14.99

$

Usually ships in 3-6 days

0

14

Toro 138-1333

WRAP-THERMAL, EXHAUST

$

$

Currently unavailable

15

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 112-6950

SCREW-CARR

$0.99

$

In Stock, Qty 7

0

17

Toro AU21001153

CLAMP-TORQUE, CONSTANT

$

$

Currently unavailable

18

Toro 138-1332

WRAP-THERMAL, EXHAUST

$

$

Currently unavailable

19

Toro 26-4840

See Supercession: 5-0652
(Superseded to 5-0652)

$8.49

$

In Stock, only 2 left!

0

20

Toro 131-8895

CLAMP-GUILLOTINE

$

$

Currently unavailable

21

Toro 136-8930

PIPE-EXHAUST

$

$

Currently unavailable

22

Toro 137-8398

TUBE-EXHAUST

$

$

Currently unavailable

23

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

24

Toro 137-8322-03

GUARD-EXHAUST, LONG

$

$

Currently unavailable

25

Toro 2412-130

CLAMP-HOSE

$4.99

$

Usually ships in 3-6 days

0
