23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Hydraulic Fuel Tank and Fitting Assembly Parts Diagram

Directional Drill

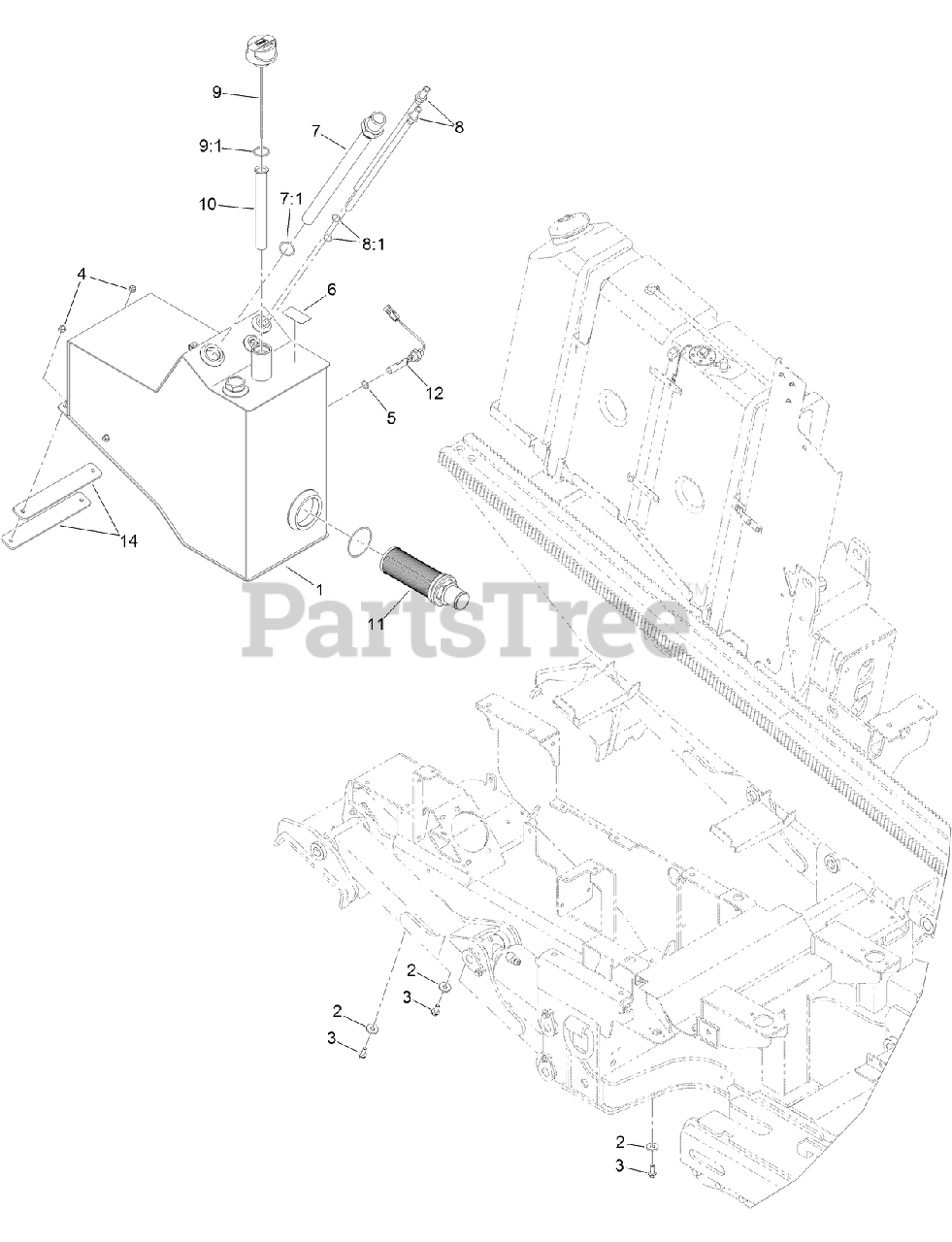

Hydraulic Fuel Tank and Fitting Assembly Parts Diagram

  • Title

1

Toro 136-6052

HYDRAULIC TANK ASM

$

$

Currently unavailable

2

Toro 114-4681

SCREW-HHF

$3.99

$

In Stock, Qty 6

0

3

Toro 3234-42

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

4

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

6

Toro 125-8483

DECAL-HYD FLUID

$19.99

$

Usually ships in 3-6 days

0

7

Toro 133-6322

DROP TUBE ASM

$

$

Currently unavailable

7:1

Toro 237-101

O-RING

$3.99

$

Usually ships in 3-6 days

0

8

Toro 133-6321

DROP TUBE ASM

$

$

Currently unavailable

8:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

9

Toro 133-6299

CAP-FILLER, BREATHER

$

$

Currently unavailable

9:1

Toro 237-101

O-RING

$3.99

$

Usually ships in 3-6 days

0

10

Toro 133-6312

SCREEN-FILL, HYDRAULIC

$

$

Currently unavailable

11

Toro 133-6298

STRAINER-SUCTION

$

$

Currently unavailable

12

Toro 83-1450

SENSOR-LEVEL, OIL

$424.99

$

Usually ships in 3-6 days

0

14

Toro 137-8375-03

STRAP-SPACER

$

$

Currently unavailable
