23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Hydraulic Tandem Pump Assembly No. 131-8949 Parts Diagram

Directional Drill

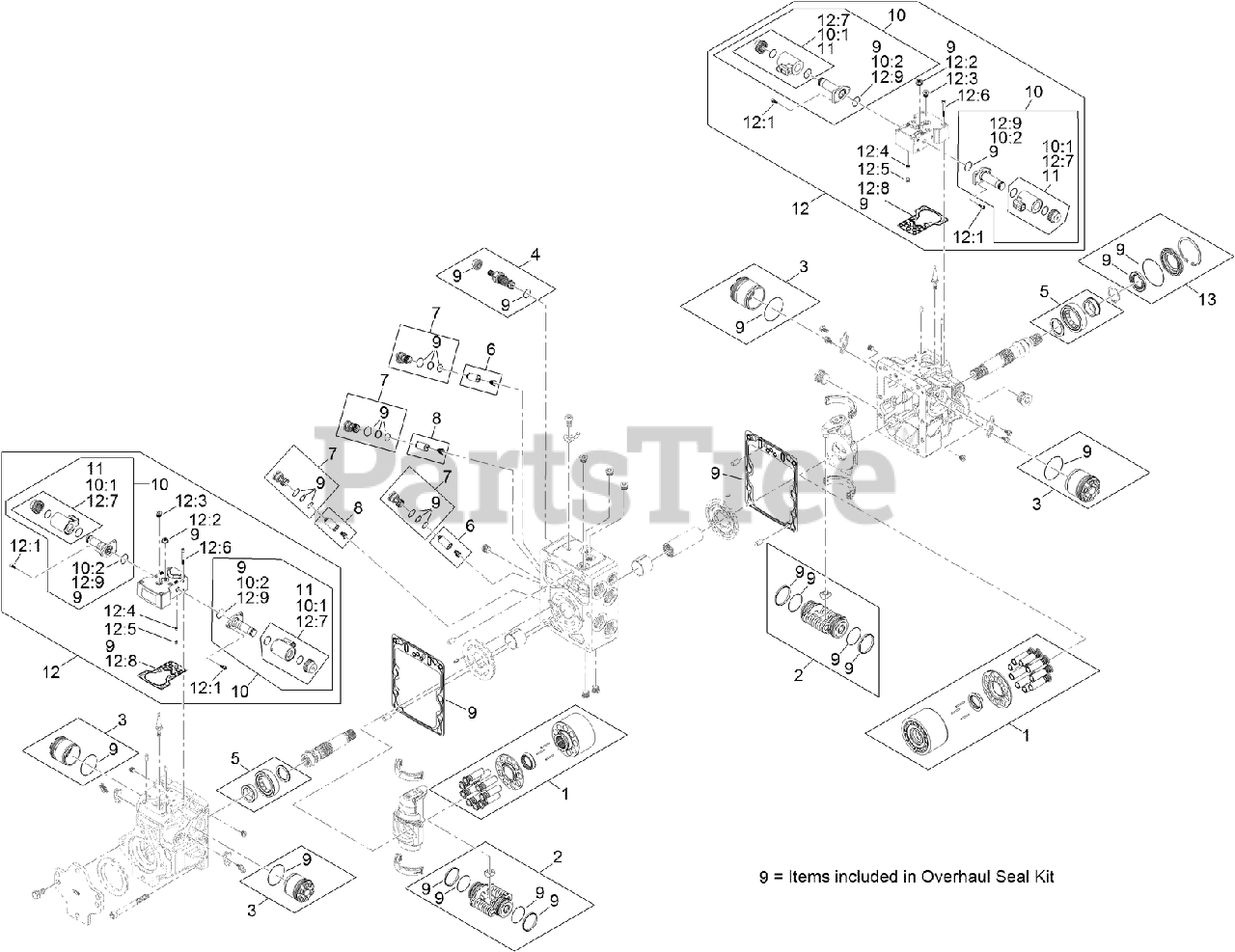

Hydraulic Tandem Pump Assembly No. 131-8949 Parts Diagram

  • Title

1

Toro 136-4995

CYLINDER BLOCK KIT

$

$

Currently unavailable

2

Toro 121-1725

SERVO PISTON ASM

$761.99

$

Usually ships in 3-6 days

0

3

Toro 136-4996

SERVO CYLINDER ASM

$206.99

$

Usually ships in 3-6 days

0

4

Toro 136-8296

CHARGE RELIEF VALVE KIT

$

$

Currently unavailable

5

Toro 125-5279

BEARING-ROLLER

$448.99

$

Usually ships in 3-6 days

0

6

Toro 136-4998

SCR VALVE ASM (330 BAR)

$

$

Currently unavailable

7

Toro 136-4999

SCR VALVE PLUG ASM

$

$

Currently unavailable

8

Toro 136-8294

SCR VALVE ASM (230 BAR)

$

$

Currently unavailable

9

Toro 136-8295

OVERHAUL SEAL KIT

$1154.99

$

Usually ships in 3-6 days

0

10

Toro 131-7636

SOLENOID VALVE ASM

$

$

Currently unavailable

10:1

Toro 125-5294

COIL KIT

$1672.99

$

Usually ships in 3-6 days

0

10:2

Toro 125-5288

O-RING

$54.99

$

Usually ships in 3-6 days

0

11

Toro 125-5294

COIL KIT

$1672.99

$

Usually ships in 3-6 days

0

12

Toro 125-5295

CONTROL KIT (12 VOLT)

$5512.99

$

Usually ships in 3-6 days

0

12:1

Toro 125-5272

SCREW

$14.99

$

Usually ships in 3-6 days

0

12:2

Toro 125-5273

NUT-SEAL

$34.99

$

Usually ships in 3-6 days

0

12:3

Toro 125-5302

PLUG

$40.99

$

Usually ships in 3-6 days

0

12:4

Toro 125-5266

SCREEN

$56.99

$

Usually ships in 3-6 days

0

12:5

Toro 125-5269

RING-LOCKING

$7.49

$

Usually ships in 3-6 days

0

12:6

Toro 125-5274

SCREW

$14.99

$

Usually ships in 3-6 days

0

12:7

Toro 125-5294

COIL KIT

$1672.99

$

Usually ships in 3-6 days

0

12:8

Toro 125-5283

GASKET-CONTROL

$

$

Not available

12:9

Toro 125-5288

O-RING

$54.99

$

Usually ships in 3-6 days

0

13

Toro 121-1729

SHAFT SEAL KIT

$230.99

$

Usually ships in 3-6 days

0
