23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Hydraulic Tank Hydraulic Hose Assembly Parts Diagram

Directional Drill

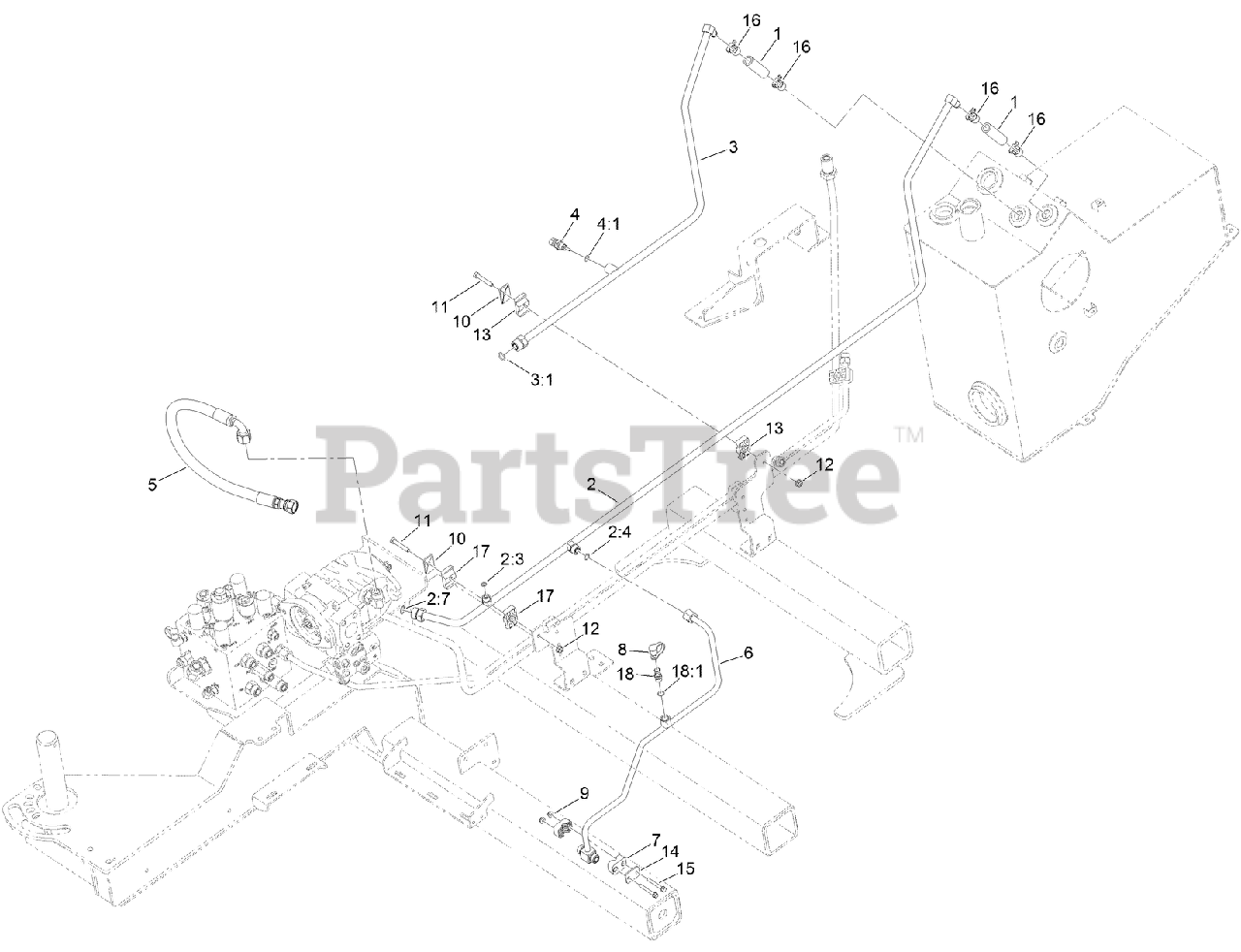

Hydraulic Tank Hydraulic Hose Assembly Parts Diagram

  • Title

1

Toro 114-4920

HOSE

$10.99

$

Usually ships in 3-6 days

0

2

Toro 136-8802

TUBE ASM-HYD

$

$

Currently unavailable

2:3

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

2:4

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

2:7

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

3

Toro 133-6112

TUBE ASM

$

$

Currently unavailable

3:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

4

Toro 110-8829

SENDER-TEMPERATURE

$129.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

5

Toro 133-6038

HOSE ASM-HYD

$

$

Currently unavailable

6

Toro 133-6123

TUBE ASM

$

$

Currently unavailable

7

Toro 136-8813

CLAMP-TUBE

$

$

Currently unavailable

8

Toro 354-79

CAP-DUST

$10.99

$

Usually ships in 3-6 days

0

9

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 69-9760

COVERPLATE

$7.49

$

Usually ships in 3-6 days

0

11

Toro 322-10

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

12

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 56-7971

CLAMP-TUBE

$28.99

$

Usually ships in 3-6 days

0

14

Toro 137-1775

PLATE-COVER, CLAMP

$

$

Currently unavailable

15

Toro 3234-34

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

16

Toro 2412-119

CLAMP-HOSE, WORM DRIVE

$2.49

$

Usually ships in 3-6 days

0

17

Toro 56-7977

CLAMP-TUBE

$2.99

$

Usually ships in 3-6 days

0

18

Toro 59-7410

FITTING-DIAGNOSTIC

$49.99

$

Usually ships in 3-6 days

0

18:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0
