23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Loading Manifold Assembly No. 133-5954 Parts Diagram

Directional Drill

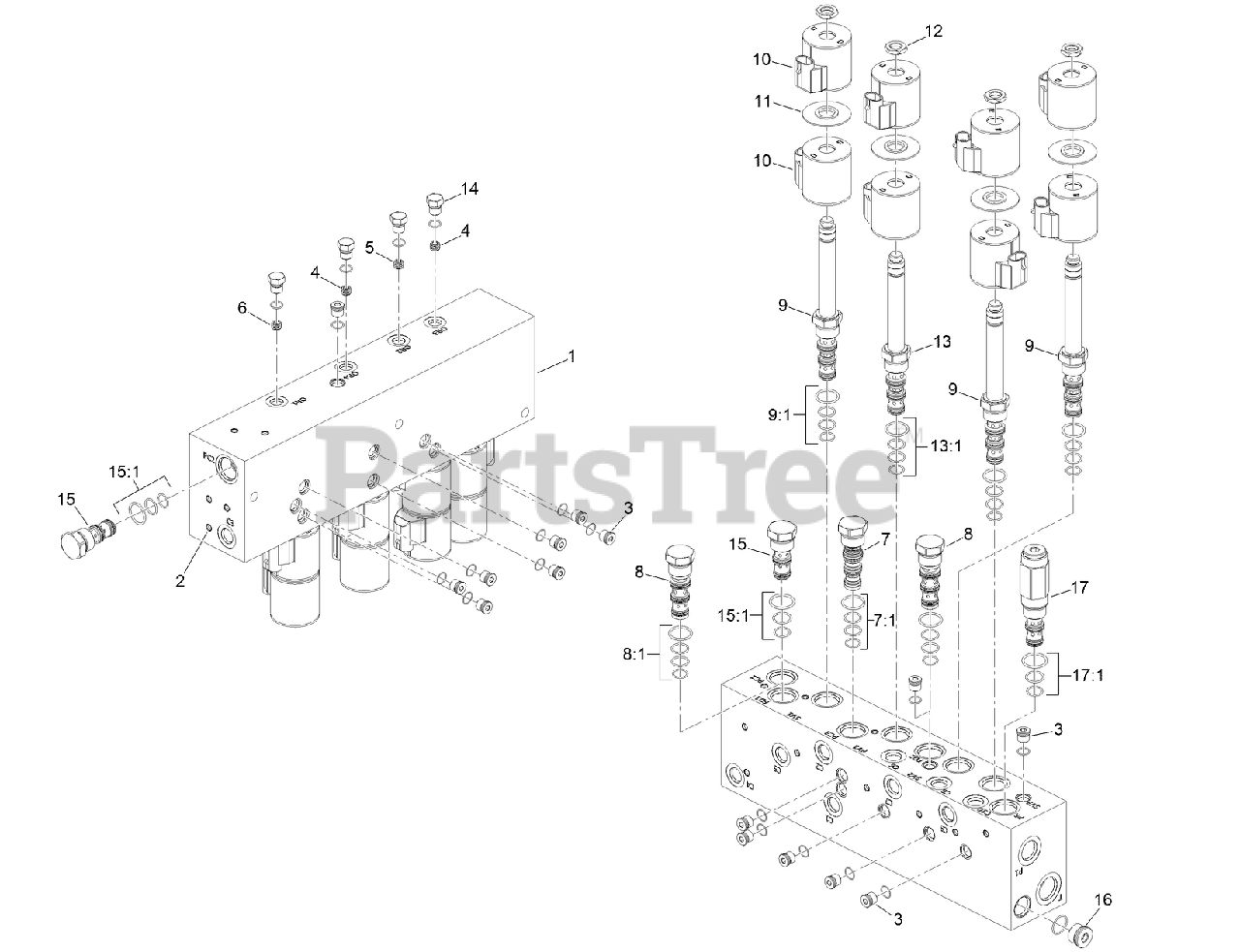

Loading Manifold Assembly No. 133-5954 Parts Diagram

  • Title

1

BLOCK-MANIFOLD

Note: Not serviced separately

$

$

Not available

2

Deck ASM

Note: Not serviced separately

$

$

Not available

3

Toro 112-9212

PLUG

$3.99

$

Usually ships in 3-6 days

0

4

Toro 137-5124

ORIFICE

$

$

Currently unavailable

5

Toro 137-5123

ORIFICE

$

$

Currently unavailable

6

Toro 137-5126

ORIFICE

$

$

Currently unavailable

7

Toro 137-5140

VALVE-CHECK

$

$

Currently unavailable

7:1

Toro 110-8908

SPOOL VALVE SEAL KIT

$40.99

$

Usually ships in 3-6 days

0

8

Toro 115-3024

VALVE-FLOW DIVIDER/COMBINER

$485.99

$

Usually ships in 3-6 days

0

8:1

Toro 115-3025

SEAL KIT

$43.99

$

Usually ships in 3-6 days

0

9

Toro AU112257

VALVE-CARTRIDGE, MOTOR SPOOL

$

$

Currently unavailable

9:1

Toro 110-8908

SPOOL VALVE SEAL KIT

$40.99

$

Usually ships in 3-6 days

0

10

Toro 110-6344

COIL-12V, DC

$225.99

$

Usually ships in 3-6 days

0

11

Toro 117-8316

SPACER-E COIL

$34.99

$

Usually ships in 3-6 days

0

12

Toro 110-2634

NUT-COIL

$7.99

$

Usually ships in 3-6 days

0

13

Toro AU116738

SOLENOID ASM

$

$

Currently unavailable

13:1

Toro 110-8908

SPOOL VALVE SEAL KIT

$40.99

$

Usually ships in 3-6 days

0

14

Toro 117-0115

PLUG

$19.99

$

Usually ships in 3-6 days

0

15

Toro 116-9718

VALVE-CHECK, P O

$544.99

$

Usually ships in 3-6 days

0

15:1

Toro 116-9719

SEAL KIT

$17.99

$

Usually ships in 3-6 days

0

16

Toro 106-1027

PLUG-HYD

$19.99

$

Usually ships in 3-6 days

0

17

Toro 137-5155

VALVE-REDUCING, PRESSURE

$

$

Currently unavailable

17:1

Toro 125-4334

SEAL KIT

$31.99

$

Usually ships in 3-6 days

0
