23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Lubrication and Oil System Assembly Parts Diagram

Directional Drill

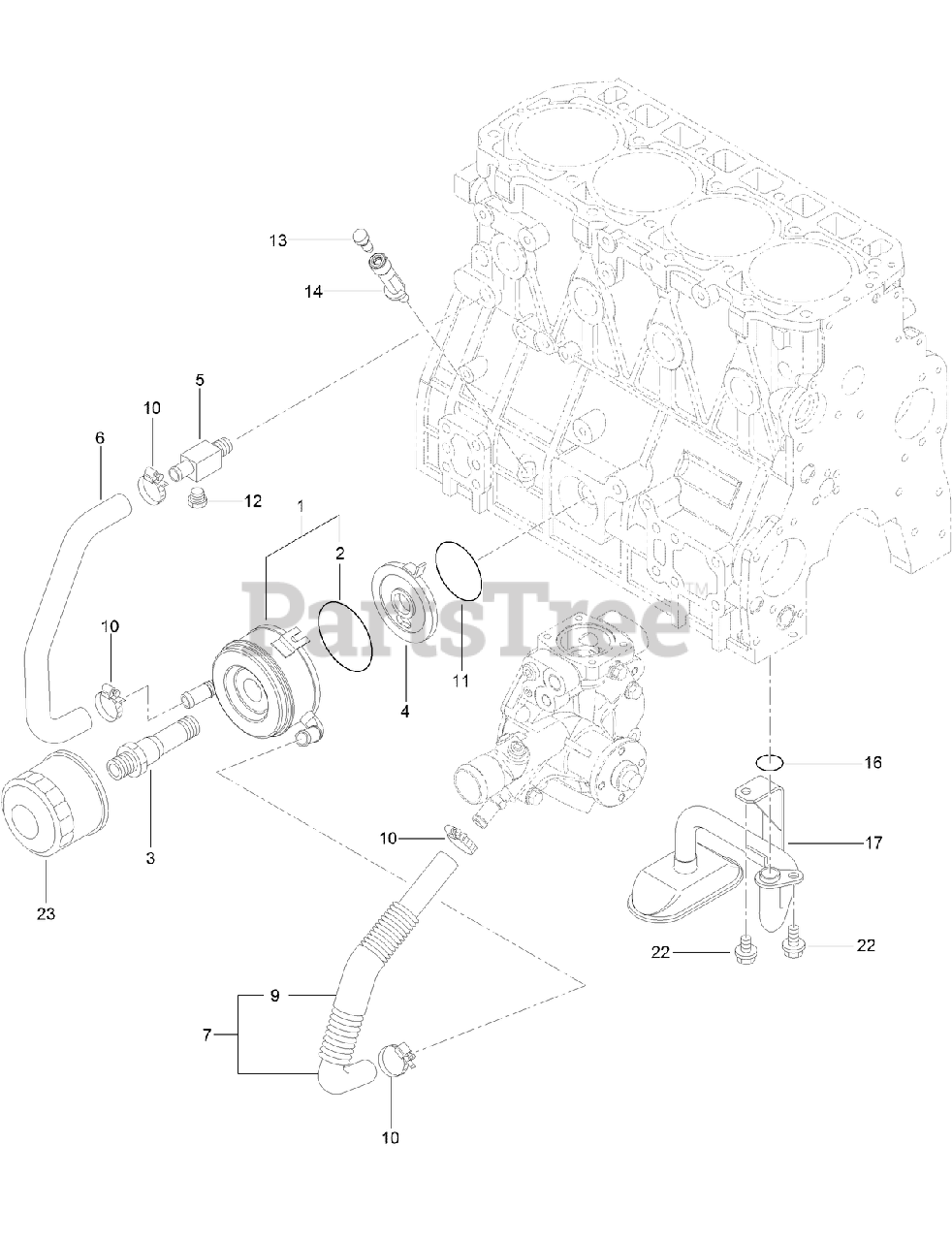

Lubrication and Oil System Assembly Parts Diagram

  • Title

1

Toro 127-3014

COOLER ASM

$2113.99

$

Usually ships in 3-6 days

0

2

Toro 127-2985

O-RING

$10.99

$

Usually ships in 3-6 days

0

3

Toro 133-6622

BOLT-COOLER

$420.99

$

Usually ships in 3-6 days

0

4

Toro 127-3015

BRACKET-COOLER

$

$

Currently unavailable

5

Toro 125-6990

JOINT

$76.99

$

Usually ships in 3-6 days

0

6

Toro 133-6667

PIPE-WATER

$73.99

$

Usually ships in 3-6 days

0

7

Toro 133-6620

PIPE-WATER

$73.99

$

Usually ships in 3-6 days

0

9

Toro 133-6621

TUBE-CORRUGATED

$34.99

$

Usually ships in 3-6 days

0

10

Toro 125-7188

CLAMP-HOSE

$3.99

$

Usually ships in 3-6 days

0

11

Toro 127-3176

O-RING

$4.99

$

Usually ships in 3-6 days

0

12

Toro 125-7171

PLUG-DRAIN

$27.99

$

Usually ships in 3-6 days

0

13

Toro 137-5132

PLUG-DIPSTICK

$13.99

$

Usually ships in 3-6 days

0

14

Toro 137-5161

GUIDE-DIPSTICK

$225.99

$

Usually ships in 3-6 days

0

16

Toro 133-6653

O-RING

$4.49

$

Usually ships in 3-6 days

0

17

Toro 137-5162

OIL PICKUP TUBE ASM

$436.99

$

Usually ships in 3-6 days

0

22

Toro 125-7212

BOLT

$3.49

$

Usually ships in 3-6 days

0

23

Toro 125-7025

FILTER-ENGINE

$16.99

$

In Stock, Qty 6

0
