23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Mud Pump Assembly Parts Diagram

Directional Drill

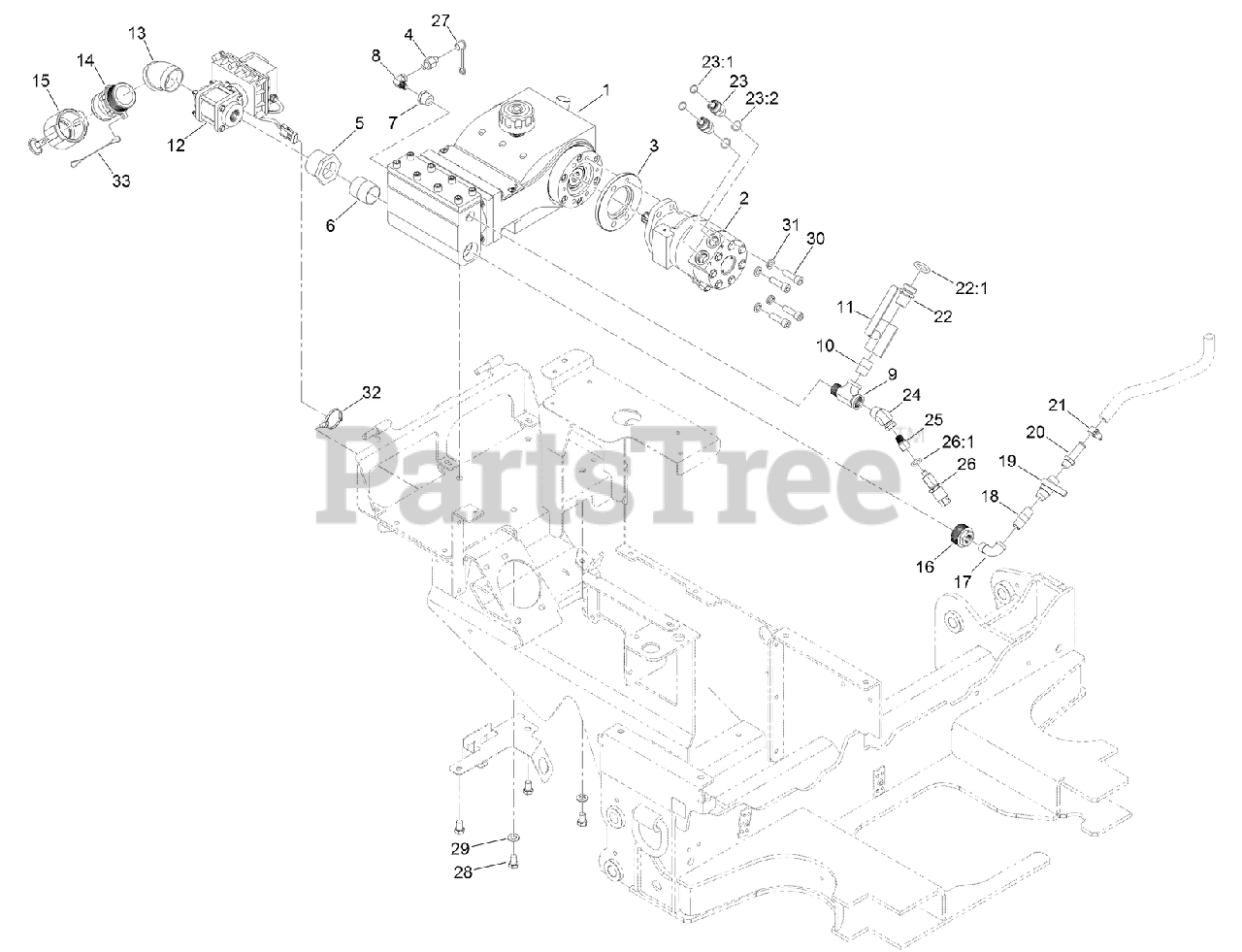

Mud Pump Assembly Parts Diagram

  • Title

1

Toro 136-1615

MUD PUMP ASM

$

$

Currently unavailable

2

Toro 132-5745

MOTOR-HYDRAULIC

$

$

Currently unavailable

3

Toro 136-1556

SPACER

$

$

Currently unavailable

4

Toro AU8QD55204

NIPPLE-CONNECT, QUICK

$

$

Currently unavailable

5

Toro AU65-CI-1988

NIPPLE-PIPE

$

$

Currently unavailable

6

Toro AU65-CI-1747

BUSHING-REDUCER

$

$

Currently unavailable

7

Toro AU221-91

BUSHING-REDUCER

$15.99

$

Usually ships in 3-6 days

0

8

Toro AU8PE48004

FITTING-ELBOW-90

$

$

Currently unavailable

9

Toro AU0PT40003

FITTING-TEE

$

$

Currently unavailable

10

Toro AU221-1211

NIPPLE-STRAIGHT

$

$

Not available

11

Toro AU8HV23012

VALVE-BALL

$

$

Currently unavailable

12

Toro AU6HV29033

2 INCH BALL VALVE ASM (ELECTRIC)

$

$

Currently unavailable

13

Toro AU8PE15032

ELBOW-PIPE-45

$

$

Currently unavailable

14

Toro AU110378

ADAPTER-MALE

$

$

Currently unavailable

15

Toro AU110379

CAP-CONNECT, QUICK

$

$

Not available

16

Toro AU8PB12408

BUSHING-PIPE, REDUCER

$

$

Currently unavailable

17

Toro 2811-9

FITTING-ELBOW-90

$18.99

$

Usually ships in 3-6 days

0

18

Toro AU221-1190

NIPPLE-PIPE

$

$

Currently unavailable

19

Toro AU8HV21008

VALVE-BALL

$

$

Currently unavailable

20

Toro AU113726

ADAPTER

$

$

Currently unavailable

21

Toro 2412-119

CLAMP-HOSE, WORM DRIVE

$2.49

$

Usually ships in 3-6 days

0

22

Toro AU8OA11212

FITTING-STRAIGHT

$

$

Currently unavailable

22:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

23

Toro 340-7

FITTING-STRAIGHT

$16.99

$

In Stock, only 4 left!

0

23:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

23:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

24

Toro 133-6059

FITTING-ELBOW-45

$

$

Currently unavailable

25

Toro AU8SA20606

FITTING-STRAIGHT

$

$

Currently unavailable

26

Toro 125-6578

TRANSDUCER (W/ISOLATOR)

$1779.99

$

Usually ships in 3-6 days

0

26:1

Toro 127-8713

O-RING

$9.49

$

Usually ships in 3-6 days

0

27

Toro 130-4503

CAP-DUST

$

$

Currently unavailable

28

Toro AU426-812

BOLT-HH

$

$

Not available

29

Toro 106-9888

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

30

Toro AU864-12040

SCREW-HSH

$

$

Not available

31

Toro 325-37

SCREW-HH

$7.49

$

In Stock, Qty 20+

0

32

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, only 3 left!

0

33

Toro AU114334

LANYARD-TETHER, PIN

$

$

Currently unavailable
