23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Rod Cam Assembly Parts Diagram

Directional Drill

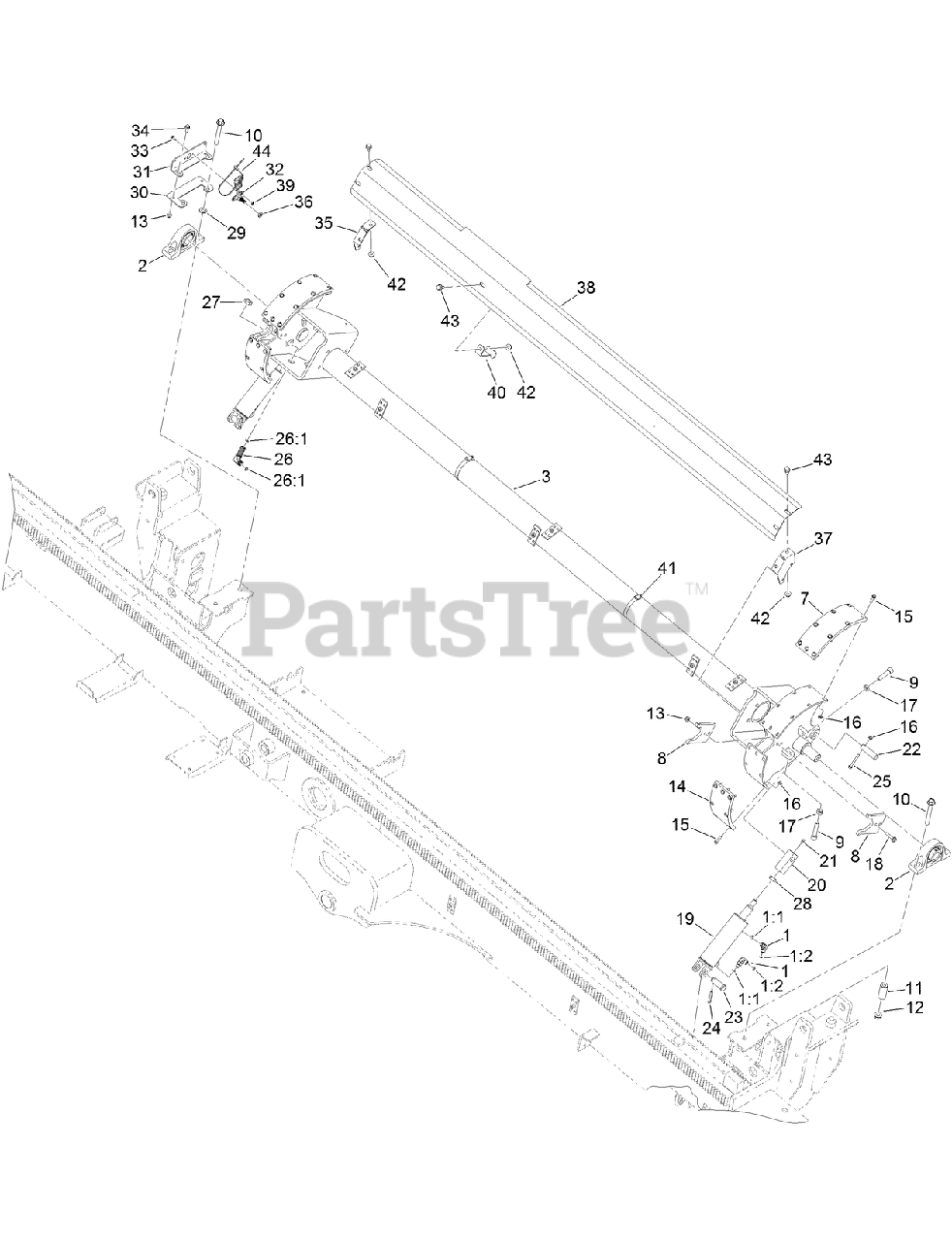

Rod Cam Assembly Parts Diagram

  • Title

1

Toro 340-132

FITTING-ELBOW, 90 DEG

$30.99

$

In Stock, Qty 6

0

1:1

Toro 237-78

O-RING

$4.99

$

In Stock, Qty 11

0

1:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

2

Toro AU109963

BEARING-PILLOW

$

$

Currently unavailable

3

Toro 132-5714-01

LOADER-ROD, CAM

$

$

Currently unavailable

7

Toro 131-8884

PAD-WEAR, ROD LOADER

$

$

Currently unavailable

8

Toro AU111864-03

PLATE-GUIDE, PIPE
(Superseded to AU111864)

$

$

Not available

9

Toro 3274-5

SCREW-HSH

$5.49

$

Usually ships in 3-6 days

0

10

Toro 131-0134

SCREW-HHF

$

$

Currently unavailable

11

Toro 99-4072

SPACER

$37.99

$

Usually ships in 3-6 days

0

12

Toro 131-0135

NUT-HEX FLANGE

$

$

Currently unavailable

13

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 131-8882

PAD-WEAR, SHORT ROD LOADER

$

$

Currently unavailable

15

Toro 120-4654

SCREW-HHF

$6.99

$

Usually ships in 3-6 days

0

16

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

17

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

18

Toro 115-1794

SCREW-HHF

$2.49

$

In Stock, Qty 6

0

19

Toro 132-5741

CYLINDER-HYDRAULIC

$

$

Currently unavailable

20

Toro AU12GB7338-03

EYE-ROD, CYLINDER

$

$

Currently unavailable

21

Toro 302-57

FITTING-GREASE

$1.99

$

Usually ships in 3-6 days

0

22

Toro AU109680

PIN-STRAIGHT

$

$

Currently unavailable

23

Toro AUH30262

PIN-CLEVIS

$17.99

$

Usually ships in 3-6 days

0

24

Toro 3272-30

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

25

Toro 3234-34

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

26

Toro 340-154

UNION-BULKHEAD

$71.99

$

Usually ships in 3-6 days

0

26:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

27

Toro 340-70

NUT-LOCK

$2.99

$

Usually ships in 3-6 days

0

28

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 17

0

29

Toro 106-9888

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

30

Toro 132-4170-03

BRACKET

$

$

Currently unavailable

31

Toro 132-4179-03

BRACKET-SENSOR, ROTARY

$

$

Currently unavailable

32

Toro 137-1800

SENSOR-ROTARY

$

$

Not available

33

Toro 3290-392

SCREW-SHH

$1.49

$

Usually ships in 3-6 days

0

34

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

35

Toro 137-5283-01

BRACKET-CAM SHIELD, BACK

$

$

Currently unavailable

36

Toro 112-8617

NUT-HEX

$

$

Currently unavailable

37

Toro 137-5286-01

BRACKET-CAM SHIELD, FRONT

$

$

Currently unavailable

38

Toro 137-5282-01

SHIELD-CAM

$

$

Currently unavailable

39

Toro 3296-54

NUT-LOCK

$5.99

$

In Stock, only 3 left!

0

40

Toro 137-5285

BRACKET-CAM SHIELD, SUPPORT

$

$

Currently unavailable

41

Toro 114-4938

CLAMP-WORM

$15.99

$

Usually ships in 3-6 days

0

42

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

43

Toro 323-41

DISCONTINUED

$1.99

$

In Stock, Qty 14

0

44

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
