23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Side Rod Load Assembly Parts Diagram

Directional Drill

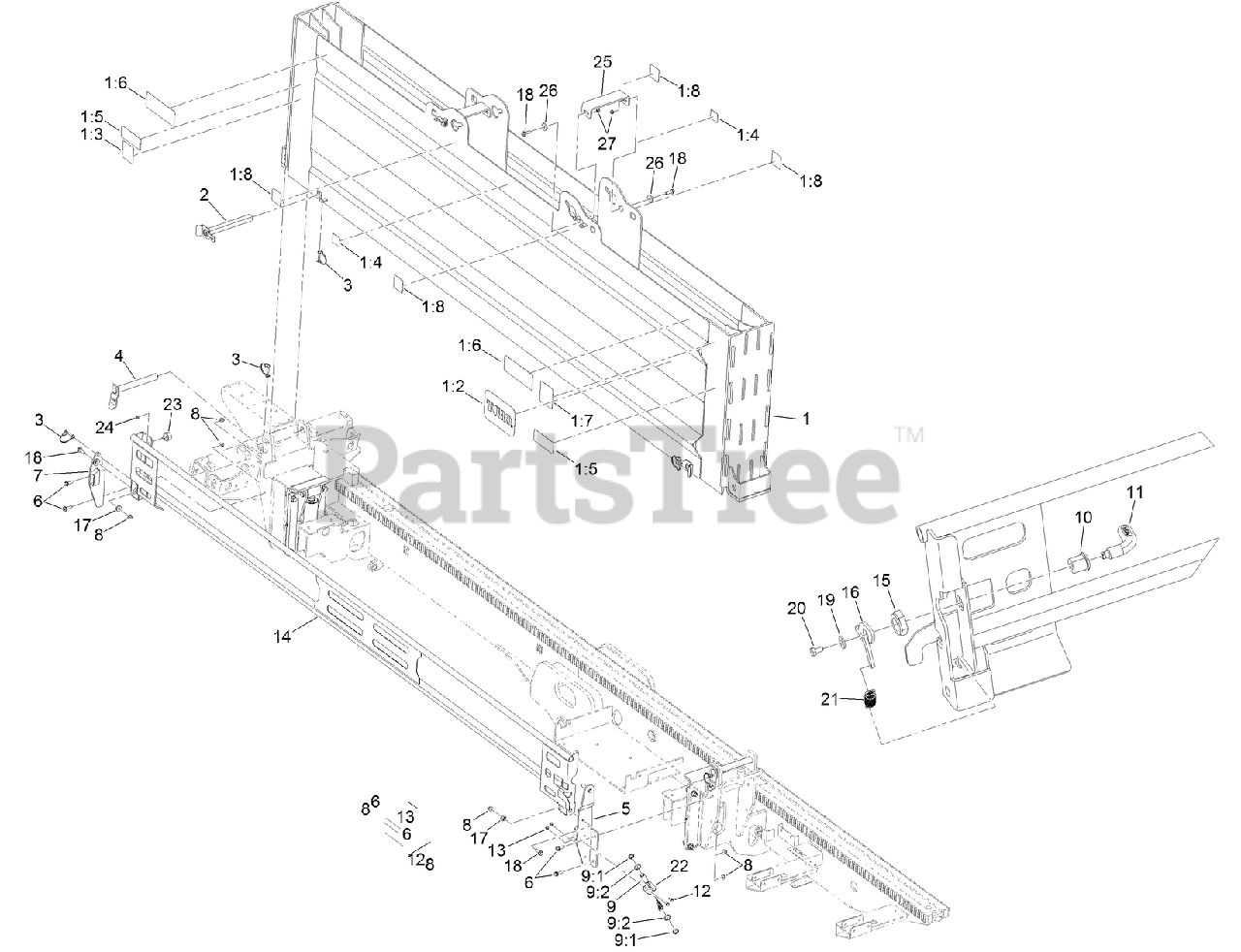

Side Rod Load Assembly Parts Diagram

  • Title

1

Toro 136-1500

ROD BOX ASM

$

$

Currently unavailable

1:2

Toro 92-1242

DECAL

$33.99

$

Usually ships in 3-6 days

0

1:3

Toro 125-6107

DECAL-WARNING

$

$

Currently unavailable

1:4

Toro 125-6197

DECAL-WEIGHT, ROD BASKET

$

$

Currently unavailable

1:5

Toro 125-6128

DECAL-WARNING

$

$

Currently unavailable

1:6

Toro 125-6130

DECAL-DANGER, HAZARDOUS AREA

$

$

Currently unavailable

1:7

Toro 137-7168

DECAL-DANGER, SHOCK

$

$

Currently unavailable

1:8

Toro 125-4967

DECAL-LIFT HERE

$2.99

$

Usually ships in 3-6 days

0

2

Toro 136-1511-03

PIN-ROD

$

$

Not available

3

Toro 100-1663

PIN-HITCH

$17.99

$

In Stock, only 4 left!

0

4

Toro 136-8792-03

See Supercession: 138-5135

$

$

Not available

5

Toro 137-7114-01

ROD-LOAD, REAR

$

$

Currently unavailable

6

Toro 3234-24

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

7

Toro 137-7118-01

ROD-LOAD, FRONT

$

$

Currently unavailable

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 115-5300

PROXIMITY SWITCH ASM

$166.99

$

In Stock, Qty 20+

0

9:1

Toro 117-3207

NUT-HEX

$22.99

$

In Stock, only 2 left!

0

9:2

Toro 117-3208

WASHER-LOCK, INTERNAL TOOTH

$12.99

$

In Stock, only 4 left!

0

10

Toro 106-9335

HOUSING-LATCH

$74.99

$

Usually ships in 3-6 days

0

11

Toro 108-5639

HANDLE-LATCH

$65.99

$

Usually ships in 3-6 days

0

12

Toro 115-5103

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

13

Toro 119-4040

NUT-FLANGE, NI

$0.99

$

In Stock, Qty 8

0

14

Toro 137-1781-01

HANDLE-LOAD, PIPE

$

$

Currently unavailable

15

Toro 32-9660

See Supercession: 302-5
(Superseded to 302-5)

$3.99

$

In Stock, Qty 20+

0

16

Toro 137-8342

CAM-HOOKED

$

$

Currently unavailable

17

Toro 93-5988

HUB-PIVOT

$47.99

$

Usually ships in 3-6 days

0

18

Toro 119-4061

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

19

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

20

Toro 321-2

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

21

Toro 104-0869

SPRING

$14.99

$

Usually ships in 3-6 days

0

22

Toro 137-1801

BRACKET-SENSOR

$

$

Currently unavailable

23

Toro 131-8834

BUMPER

$12.99

$

Usually ships in 3-6 days

0

24

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

25

Toro 138-4753

PLATE-GUARD, PIPE

$

$

Currently unavailable

26

Toro 104-8005

SPACER

$33.99

$

Usually ships in 3-6 days

0

27

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
