23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Stake Manifold Assembly No. 133-5953 Parts Diagram

Directional Drill

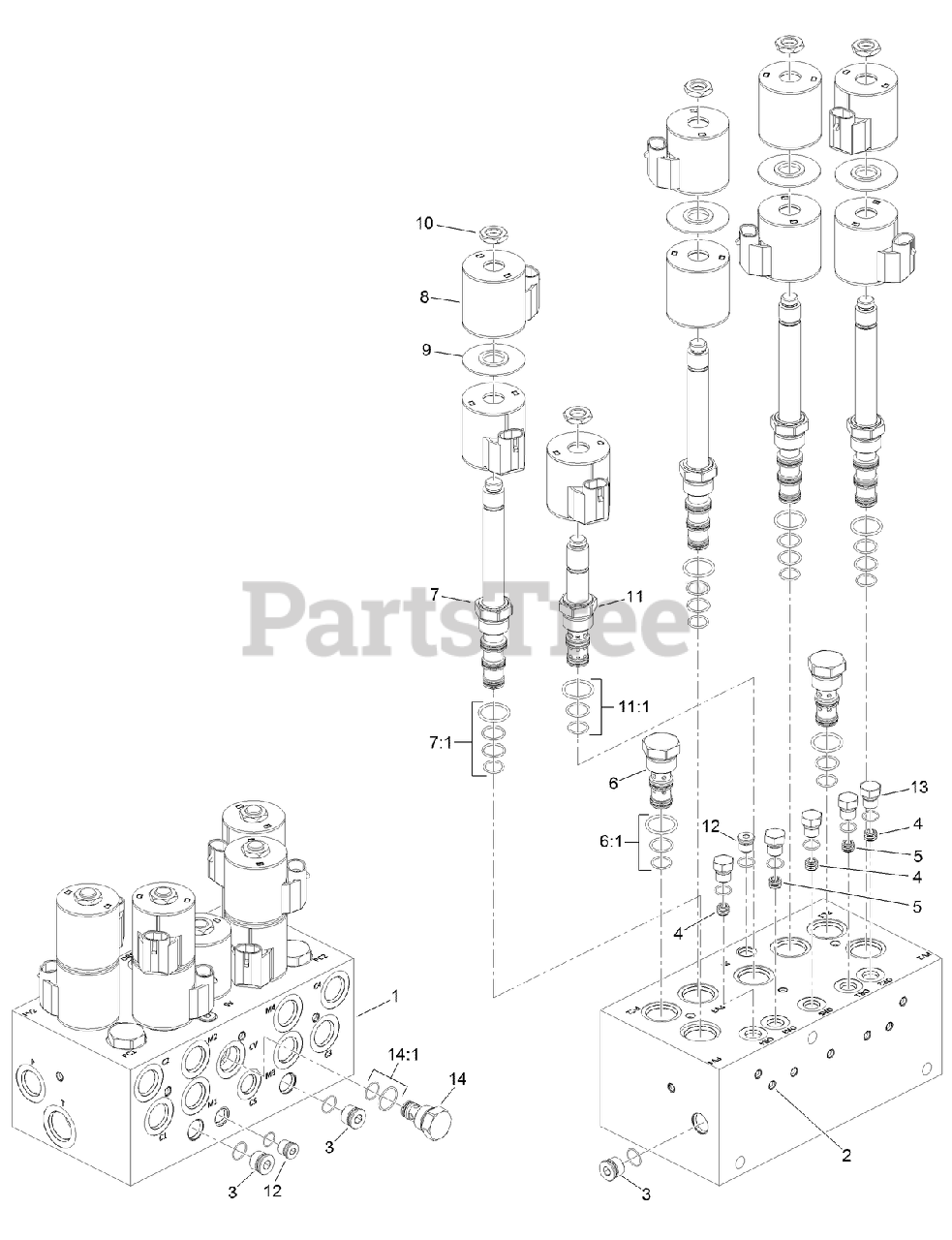

Stake Manifold Assembly No. 133-5953 Parts Diagram

  • Title

1

BLOCK-MANIFOLD

Note: Not serviced separately

$

$

Not available

2

Deck ASM

Note: Not serviced separately

$

$

Not available

3

Toro 112-9213

PLUG

$5.99

$

Usually ships in 3-6 days

0

4

Toro 110-0495

PLUG-ORIFICE (0.050 INCH)

$19.99

$

Usually ships in 3-6 days

0

5

Toro 137-5123

ORIFICE

$

$

Currently unavailable

6

Toro 137-5151

VALVE-CHECK

$

$

Currently unavailable

6:1

Toro 116-9719

SEAL KIT

$17.99

$

Usually ships in 3-6 days

0

7

Toro 137-8395

VALVE-SOLENOID

$

$

Currently unavailable

7:1

Toro 110-8908

SPOOL VALVE SEAL KIT

$40.99

$

Usually ships in 3-6 days

0

8

Toro 110-6344

COIL-12V, DC

$225.99

$

Usually ships in 3-6 days

0

9

Toro 117-8316

SPACER-E COIL

$34.99

$

Usually ships in 3-6 days

0

10

Toro 110-2634

NUT-COIL

$7.99

$

Usually ships in 3-6 days

0

11

Toro 137-8396

VALVE-SOLENOID

$

$

Currently unavailable

11:1

Toro 107-7813

SEAL KIT

$107.99

$

Usually ships in 3-6 days

0

12

Toro 112-9212

PLUG

$3.99

$

Usually ships in 3-6 days

0

13

Toro 117-0115

PLUG

$19.99

$

Usually ships in 3-6 days

0

14

Toro 137-8390

CHECK VALVE ASM

$

$

Currently unavailable

14:1

Toro 119-7716

SEAL KIT

$43.99

$

Usually ships in 3-6 days

0
