23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Starter Motor Assembly Parts Diagram

Directional Drill

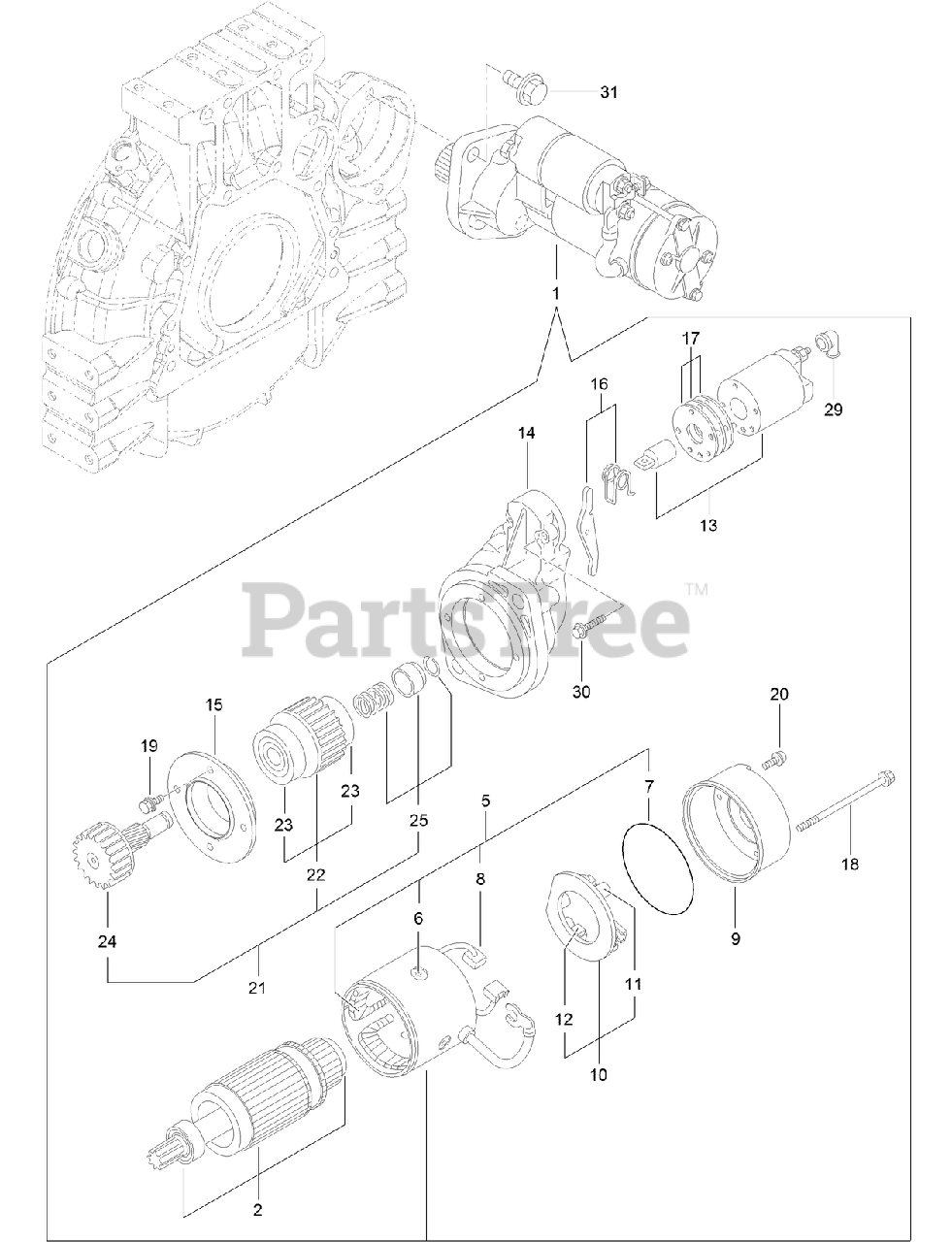

Starter Motor Assembly Parts Diagram

  • Title

1

Toro 133-6673

STARTER

$2605.99

$

Usually ships in 3-6 days

0

2

Toro 133-6674

ARMATURE ASM

$508.99

$

Usually ships in 3-6 days

0

5

Toro 133-6675

FIELD COIL ASM

$250.99

$

Usually ships in 3-6 days

0

6

Toro 133-6676

SCREW

$6.99

$

Usually ships in 3-6 days

0

7

Toro 133-6677

O-RING

$29.99

$

Usually ships in 3-6 days

0

8

Toro 133-6678

BRUSH

$11.99

$

Usually ships in 3-6 days

0

9

Toro 133-6679

COVER

$94.99

$

Usually ships in 3-6 days

0

10

Toro 133-6680

BRUSH HOLDER ASM

$185.99

$

Usually ships in 3-6 days

0

11

Toro 133-6681

SPRING

$10.99

$

Usually ships in 3-6 days

0

12

Toro 133-6682

BRUSH

$11.99

$

Usually ships in 3-6 days

0

13

Toro 133-6683

SWITCH ASM

$292.99

$

Usually ships in 3-6 days

0

14

Toro 133-6684

CASE-GEAR

$

$

Currently unavailable

15

Toro 133-6685

RETAINER

$96.99

$

Usually ships in 3-6 days

0

16

Toro 133-6686

LEVER SET

$14.99

$

Usually ships in 3-6 days

0

17

Toro 133-6687

DUST COVER ASM

$20.99

$

Usually ships in 3-6 days

0

18

Toro 133-6688

BOLT-THROUGH

$9.49

$

Usually ships in 3-6 days

0

19

Toro 133-6689

BOLT

$3.99

$

Usually ships in 3-6 days

0

20

Toro 133-6690

SCREW

$8.49

$

Usually ships in 3-6 days

0

21

Toro 133-6616

PINION ASM

$1319.99

$

Usually ships in 3-6 days

0

22

Toro 133-6617

CLUTCH ASM

$879.99

$

Usually ships in 3-6 days

0

23

Toro 133-2510

BEARING-BALL

$129.99

$

Usually ships in 3-6 days

0

24

Toro 133-6618

SHAFT

$890.99

$

Usually ships in 3-6 days

0

25

Toro 133-6604

STOPPER KIT

$41.99

$

Usually ships in 3-6 days

0

29

Toro 133-6609

COVER-TERMINAL

$13.99

$

Usually ships in 3-6 days

0

30

Toro 133-6601

BOLT

$11.99

$

Usually ships in 3-6 days

0

31

Toro 125-7225

BOLT

$5.99

$

Usually ships in 3-6 days

0
