23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Thrust Manifold Assembly No. 133-5951 Parts Diagram

Directional Drill

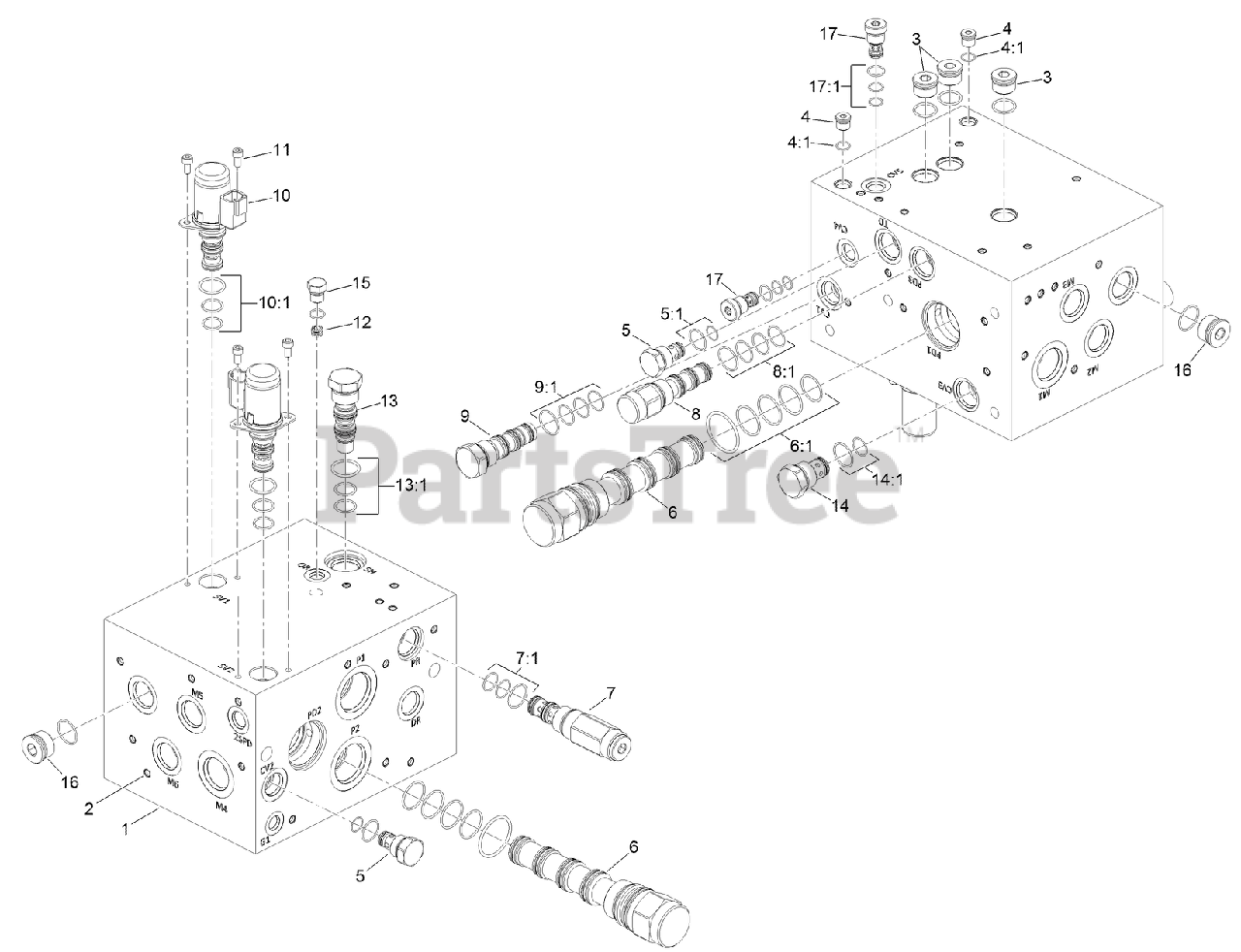

Thrust Manifold Assembly No. 133-5951 Parts Diagram

  • Title

1

BLOCK-MANIFOLD

Note: Not serviced separately

$

$

Not available

2

Deck ASM

Note: Not serviced separately

$

$

Not available

3

Toro 106-1027

PLUG-HYD

$19.99

$

Usually ships in 3-6 days

0

4

Toro 353-990

PLUG ASM

$13.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-78

O-RING

$4.99

$

In Stock, Qty 11

0

5

Toro 105-9321

CHECK VALVE ASM

$154.99

$

Usually ships in 3-6 days

0

5:1

Toro 105-9156

SEAL KIT

$23.99

$

Usually ships in 3-6 days

0

6

Toro 137-5152

VALVE-BIAS, PILOTED WAY

$

$

Currently unavailable

6:1

Toro 111-6830

SEAL KIT

$

$

Currently unavailable

7

Toro 137-5154

VALVE-REDUCING, PRESSURE

$

$

Currently unavailable

7:1

Toro 125-4334

SEAL KIT

$31.99

$

Usually ships in 3-6 days

0

8

Toro 132-4913

VENT-EXTERNAL, PILOTED

$320.99

$

Usually ships in 3-6 days

0

8:1

Toro 110-8908

SPOOL VALVE SEAL KIT

$40.99

$

Usually ships in 3-6 days

0

9

Toro 137-5146

VALVE-TORQUE DIVIDER

$

$

Currently unavailable

9:1

Toro 138-4953

SEAL KIT

$

$

Currently unavailable

10

Toro 125-7554

VALVE-SOLENOID

$437.99

$

Usually ships in 3-6 days

0

10:1

Toro 125-7561

SEAL KIT

$33.99

$

Usually ships in 3-6 days

0

11

Toro 132-4908

SCREW-CAP, SOC HD

$3.99

$

Usually ships in 3-6 days

0

12

Toro 137-5127

ORIFICE

$

$

Currently unavailable

13

Toro 137-5145

VALVE-SHUTTLE, LOW SIDE

$

$

Currently unavailable

13:1

Toro 131-8637

SEAL KIT

$

$

Currently unavailable

14

Toro 110-0469

VALVE-CHECK, 180 PSI

$147.99

$

Usually ships in 3-6 days

0

14:1

Toro 105-9159

SEAL KIT

$29.99

$

Usually ships in 3-6 days

0

15

Toro 117-0115

PLUG

$19.99

$

Usually ships in 3-6 days

0

16

Toro 106-1028

PLUG-LEAK, ZERO

$22.99

$

Usually ships in 3-6 days

0

17

Toro 136-1592

VALVE-POPPET

$

$

Currently unavailable

17:1

Toro 136-1593

SEAL KIT

$

$

Currently unavailable
