23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Travel Pendant Assembly No. 137-5296 Parts Diagram

Directional Drill

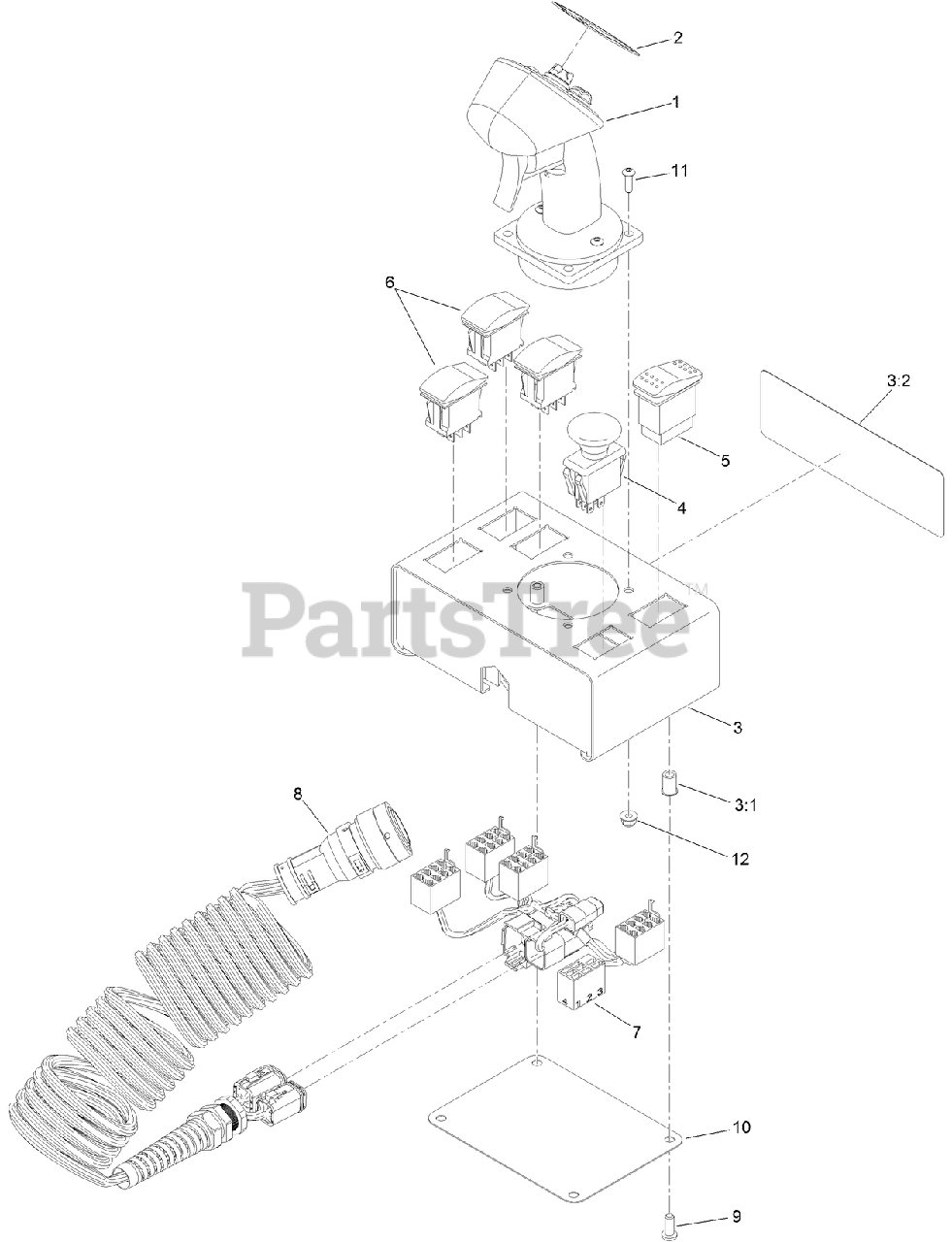

Travel Pendant Assembly No. 137-5296 Parts Diagram

  • Title

1

Toro 136-6889

JOYSTICK-GRIP, FIXED

$

$

Currently unavailable

2

Toro 136-8900

DECAL-PENDANT, OVAL

$

$

Currently unavailable

3

Toro 137-8319

TRAVEL PENDANT ASM

$

$

Currently unavailable

3:1

Toro 32148-6

NUT-CLINCH

$2.49

$

Usually ships in 3-6 days

0

3:2

Toro 137-7160

DECAL-PENDANT, CONTROLS

$

$

Currently unavailable

4

Toro 136-6888

SWITCH, E-STOP

$32.99

$

Usually ships in 3-6 days

0

5

Toro 106-2027

SWITCH-INTERMITTENT

$83.99

$

Usually ships in 3-6 days

0

6

Toro 100-1535

SWITCH

$99.99

$

In Stock, only 4 left!

0

7

Toro 122-0848

HARNESS-WIRE

$

$

Currently unavailable

8

Toro 122-0849

HARNESS-WIRE

$

$

Currently unavailable

9

Toro 3274-31

SCREW-HSBH

$1.49

$

In Stock, only 2 left!

0

10

Toro 137-8314-03

COVER-PENDANT

$

$

Currently unavailable

11

Toro 3274-39

SCREW-HSBH

$6.49

$

Usually ships in 3-6 days

0

12

Toro 120-4578

NUT-HF

$0.99

$

Usually ships in 3-6 days

0
