23823 (4045) - Toro Directional Drill with Cab (SN: 314000501 - 314999999) (2014) Cab Electrical Assembly Parts Diagram

Directional Drill with Cab

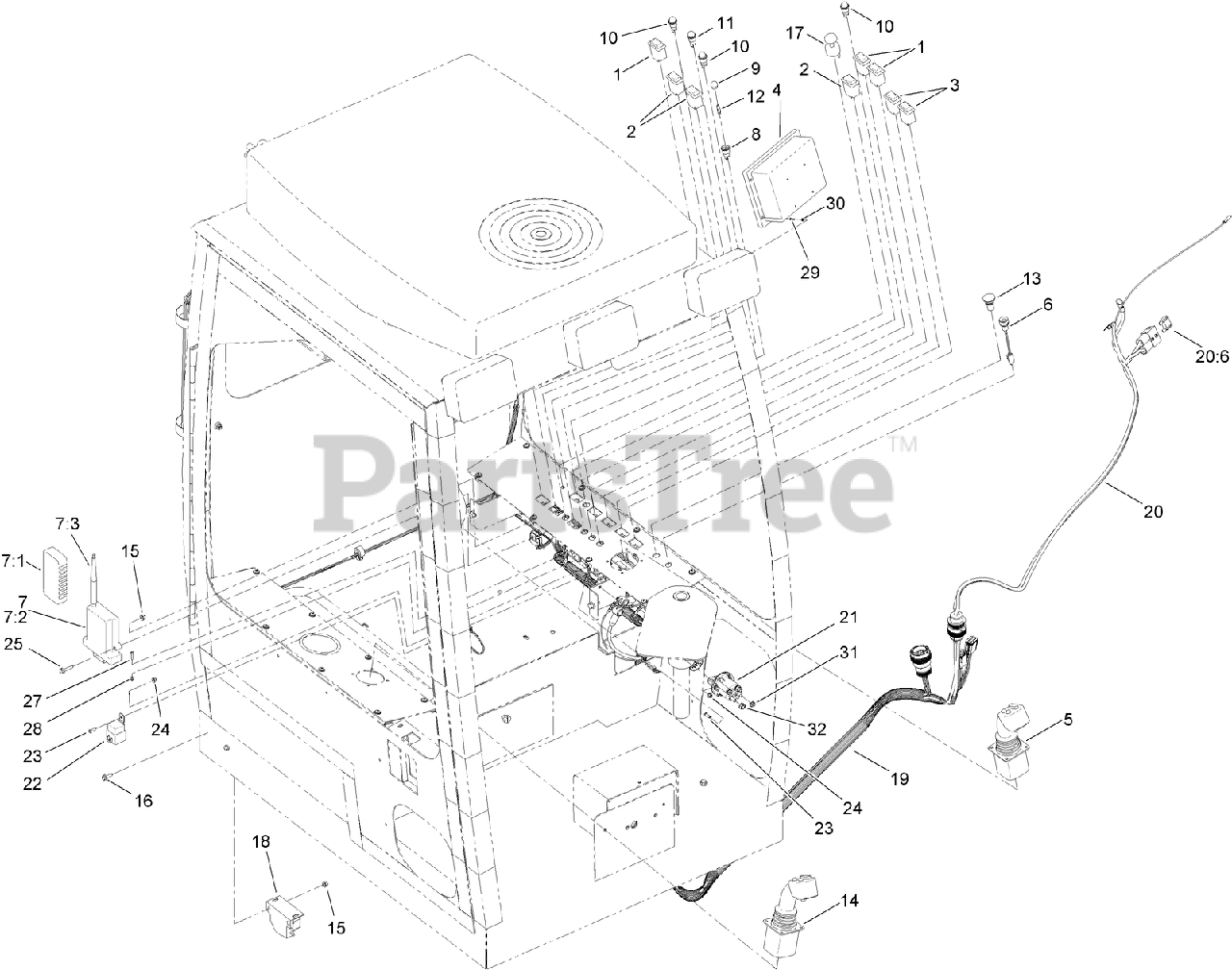

Cab Electrical Assembly Parts Diagram

  • Title

1

Toro AU113662

SWITCH-ROCKER, 2 POLE (ON/OFF)

$

$

Currently unavailable

2

Toro AU113664

SWITCH-ROCKER, 2 POLE

$42.99

$

In Stock, only 4 left!

0

3

Toro AU113665

SWITCH-ROCKER, 1 POLE (ON)OFF/ON(OFF)

$

$

Currently unavailable

4

Toro AU103384

See Supercession: 132-4181
(Superseded to 132-4181)

$12442.99

$

Usually ships in 3-6 days

0

5

Toro AU117962

JOYSTICK-MODIFIED (LEFT HAND)

$

$

Not available

6

Toro 121-6592

SWITCH-START, GREEN BUTTON

$

$

Currently unavailable

7

Toro 130-4454

LONG RANGE EXIT SIDE LOCKOUT KIT

$

$

Not available

7:1

Toro 130-4455

HANDHELD-LOCKOUT

$

$

Not available

7:2

Toro 130-4456

BASE UNIT-LOCKOUT

$

$

Not available

7:3

Toro 130-4462

ANTENNA-LOCKOUT

$

$

Currently unavailable

8

Toro AU8EO21401

TYPE T-2 SOCKET ASM

$

$

Currently unavailable

9

Toro AU8EO21402

LENS-DOME, FLUTED RED (TYPE T-2)

$

$

Currently unavailable

10

Toro AU8EO21403

LENS-DOME, FLUTED GREEN (TYPE T2)

$

$

Currently unavailable

11

Toro AU8EO21406

LENS-DOME, FLUTED AMBER (TYPE T2)

$

$

Currently unavailable

12

Toro 122-0224

LAMP-LED

$

$

Currently unavailable

13

Toro AU8EP46103

BUTTON-PUSH, RED MUSHROOM

$

$

Currently unavailable

14

Toro AU8EP47613

JOYSTICK-CARRIAGE

$

$

Not available

15

Toro 81-0130

NUT-FLANGE, NI

$1.99

$

Usually ships in 3-6 days

0

16

Toro 33103-020

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

17

Toro AU30-1260-5588

SWITCH-WIPER

$

$

Currently unavailable

18

Toro AU8EP29105

ALARM-BACKUP

$

$

Currently unavailable

19

Toro 122-0074

HARNESS-WIRE, CAB

$

$

Currently unavailable

20

Toro 122-0287

HARNESS-WIRE, CAB POWER

$

$

Currently unavailable

20:6

Toro 114-3342

FUSE-MAXI, 60 AMP

$10.99

$

Usually ships in 3-6 days

0

21

Toro 114-3315

SOLENOID

$145.99

$

Usually ships in 3-6 days

0

22

Toro 99-7430

RELAY-MINI

$27.99

$

In Stock, only 2 left!

0

23

Toro 119-7568

SCREW-HSBH

$1.99

$

Usually ships in 3-6 days

0

24

Toro 120-4580

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

25

Toro 33103-030

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

27

Toro 119-7444

SCREW-HSBH

$0.99

$

Usually ships in 3-6 days

0

28

Toro 127-2018

NUT-HHF

$13.99

$

Usually ships in 3-6 days

0

29

Toro 1-3153

SCREW-PRH, SLOTTED

$0.99

$

Usually ships in 3-6 days

0

30

Toro 3296-52

NUT-LOCK, NI

$7.49

$

Usually ships in 3-6 days

0

31

Toro 32149-8

NUT-KEPS

$1.49

$

Usually ships in 3-6 days

0

32

Toro 121-4698

NUT-KEPS

$1.99

$

Usually ships in 3-6 days

0
