23825 (4045) - Toro Directional Drill (SN: 314000501 - 314999999) (2014) Carriage and Rotary Assembly Parts Diagram

Directional Drill

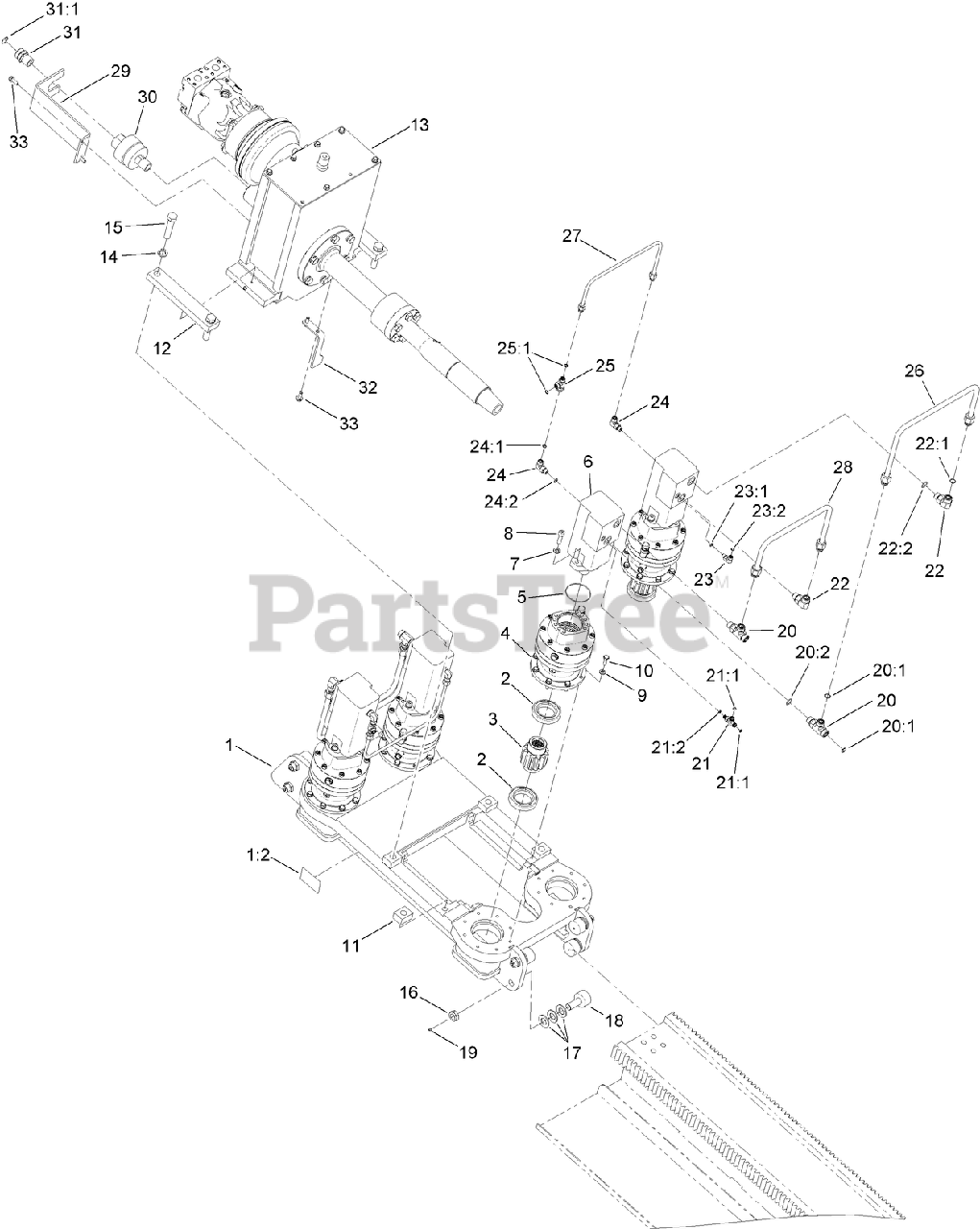

Carriage and Rotary Assembly Parts Diagram

  • Title

1

Toro 127-0934

CARRIAGE ASM

$

$

Currently unavailable

1:2

Toro 125-6110

DECAL-DANGER

$22.99

$

Usually ships in 3-6 days

0

2

Toro AU8CF40005

BEARING-BALL, RADIAL

$

$

Currently unavailable

3

Toro AU32GB4020

PINION-DRIVE, CARRIAGE

$

$

Currently unavailable

4

Toro AU8GB80063

PLANETARY GEARBOX ASM

$

$

Currently unavailable

5

Toro AU8HS51152

O-RING

$

$

Currently unavailable

6

Toro AU115604

HYD MOTOR ASM

$

$

Currently unavailable

7

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

8

Toro AU864-12040

SCREW-HSH

$

$

Not available

9

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

10

Toro 33115-030

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

11

Toro AU32GB4022-03

SPACER-CLAMP, CARRIAGE

$

$

Not available

12

Toro AU32GB4021-03

CLAMP-ROTARY BOX, CARRIAGE

$

$

Currently unavailable

13

Toro AU117215

ROTARY ASM

$

$

Currently unavailable

14

Toro 3253-9

WASHER-LOCK

$1.49

$

In Stock, only 2 left!

0

15

Toro AU426-1256

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

16

Toro 3296-60

NUT-LOCK, NI

$5.99

$

In Stock, Qty 5

0

17

Toro AU496-11094

WASHER

$3.49

$

Usually ships in 3-6 days

0

18

Toro AU8CF30032

BEARING-FOLLOWER, CAM

$

$

Currently unavailable

19

Toro 302-63

FITTING-GREASE, ZERK

$3.49

$

In Stock, only 4 left!

0

20

Toro 340-22

FITTING-TEE

$120.99

$

Usually ships in 3-6 days

0

20:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

20:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

21

Toro 340-140

FITTING-TEE

$64.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

21:2

Toro 237-78

O-RING

$4.99

$

In Stock, Qty 11

0

22

Toro 340-17

FITTING-ELBOW, 90 DEG

$67.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

22:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

23

Toro 340-132

FITTING-ELBOW, 90 DEG

$30.99

$

In Stock, Qty 6

0

23:1

Toro 237-78

O-RING

$4.99

$

In Stock, Qty 11

0

23:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

24

Toro 340-77

FITTING-ELBOW, 90 DEG

$30.99

$

Usually ships in 3-6 days

0

24:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

24:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

25

Toro 340-115

FITTING-TEE, SWIVEL NUT

$74.99

$

Usually ships in 3-6 days

0

25:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

26

Toro AU119410

TUBE-HYD, 5/8 IN (MOTOR TO MOTOR)

$

$

Currently unavailable

27

Toro AU119452

TUBE-HYD, 3/8 IN (CASE DRAIN MOTOR TO MOTOR)

$

$

Currently unavailable

28

Toro AU119409

TUBE-HYD, 5/8 IN (MOTOR TO MOTOR)

$

$

Currently unavailable

29

Toro AU32GB4475-03

BRACKET-SWIVEL, MUD

$

$

Currently unavailable

30

Toro AU32GB4210

SWIVEL-MUD

$

$

Currently unavailable

31

Toro AU8OA11616

FITTING-STRAIGHT

$

$

Currently unavailable

31:1

Toro 340-65

O-RING

$5.99

$

In Stock, Qty 5

0

32

Toro AU121312-03

PLATE-TRIGGER, PROXIMITY

$

$

Currently unavailable

33

Toro 3234-42

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0
