23897 (FM 330) - Toro Diesel-Powered Fluid Mixer (SN: 400000000 - 999999999) Cylinder Block Assembly Parts Diagram

Diesel-Powered Fluid Mixer

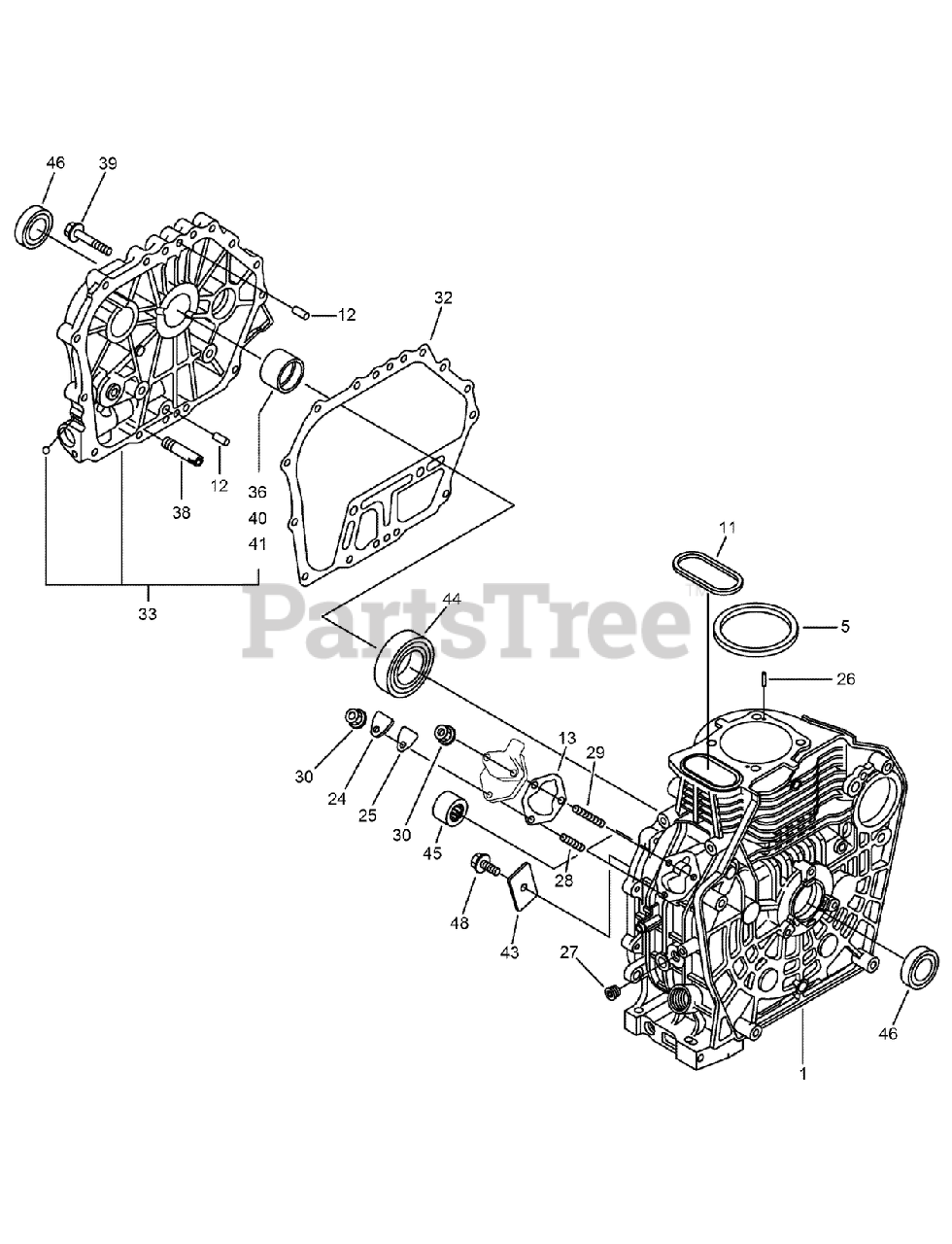

Cylinder Block Assembly Parts Diagram

  • Title

1

Toro 136-8114

CYLINDER BLOCK ASM

$3477.99

$

Usually ships in 3-6 days

0

5

Toro 136-8192

GASKET-HEAD, CYLINDER

$93.99

$

Usually ships in 3-6 days

0

11

Toro 136-8193

O RING-TAPPET

$6.49

$

Usually ships in 3-6 days

0

12

Toro 136-8087

PIN

$3.49

$

Usually ships in 3-6 days

0

13

Toro 136-8089

SHIM SET

$31.99

$

Usually ships in 3-6 days

0

24

Toro 136-8090

COVER-PUMP

$5.99

$

Usually ships in 3-6 days

0

25

Toro 136-8077

GASKET-COVER

$4.99

$

Usually ships in 3-6 days

0

26

Toro 136-8239

PIN

$3.49

$

Usually ships in 3-6 days

0

27

Toro 127-3175

PLUG

$4.99

$

Usually ships in 3-6 days

0

28

Toro 136-8260

STUD-BOLT

$3.49

$

Usually ships in 3-6 days

0

29

Toro 136-8261

STUD-BOLT

$3.49

$

Usually ships in 3-6 days

0

30

Toro 125-7231

NUT

$4.49

$

Usually ships in 3-6 days

0

32

Toro 136-8194

GASKET-CASE, CRANK

$42.99

$

Usually ships in 3-6 days

0

33

Toro 136-8117

COVER-CASE, CRANK

$742.99

$

Usually ships in 3-6 days

0

36

Toro 136-8186

BEARING-MAIN

$23.99

$

Usually ships in 3-6 days

0

38

Toro 136-8101

PIPE-INLET, OIL

$18.99

$

Usually ships in 3-6 days

0

39

Toro 125-7217

BOLT

$5.49

$

Usually ships in 3-6 days

0

40

Toro 136-8188

METAL-MAIN, 0.25

$25.99

$

Usually ships in 3-6 days

0

41

Toro 136-8189

METAL-MAIN, 0.5

$25.99

$

Usually ships in 3-6 days

0

43

Toro 136-8092

RETAINER-BEARING

$6.99

$

Usually ships in 3-6 days

0

44

Toro 136-8187

BEARING

$143.99

$

Usually ships in 3-6 days

0

45

Toro 136-8247

BEARING-NEEDLE

$53.99

$

Usually ships in 3-6 days

0

46

Toro 136-8253

SEAL-OIL

$13.99

$

Usually ships in 3-6 days

0

48

Toro 125-7212

BOLT

$3.49

$

Usually ships in 3-6 days

0
