23897 (FM 330) - Toro Diesel-Powered Fluid Mixer (SN: 400000000 - 999999999) Starter Motor Assembly Parts Diagram

Diesel-Powered Fluid Mixer

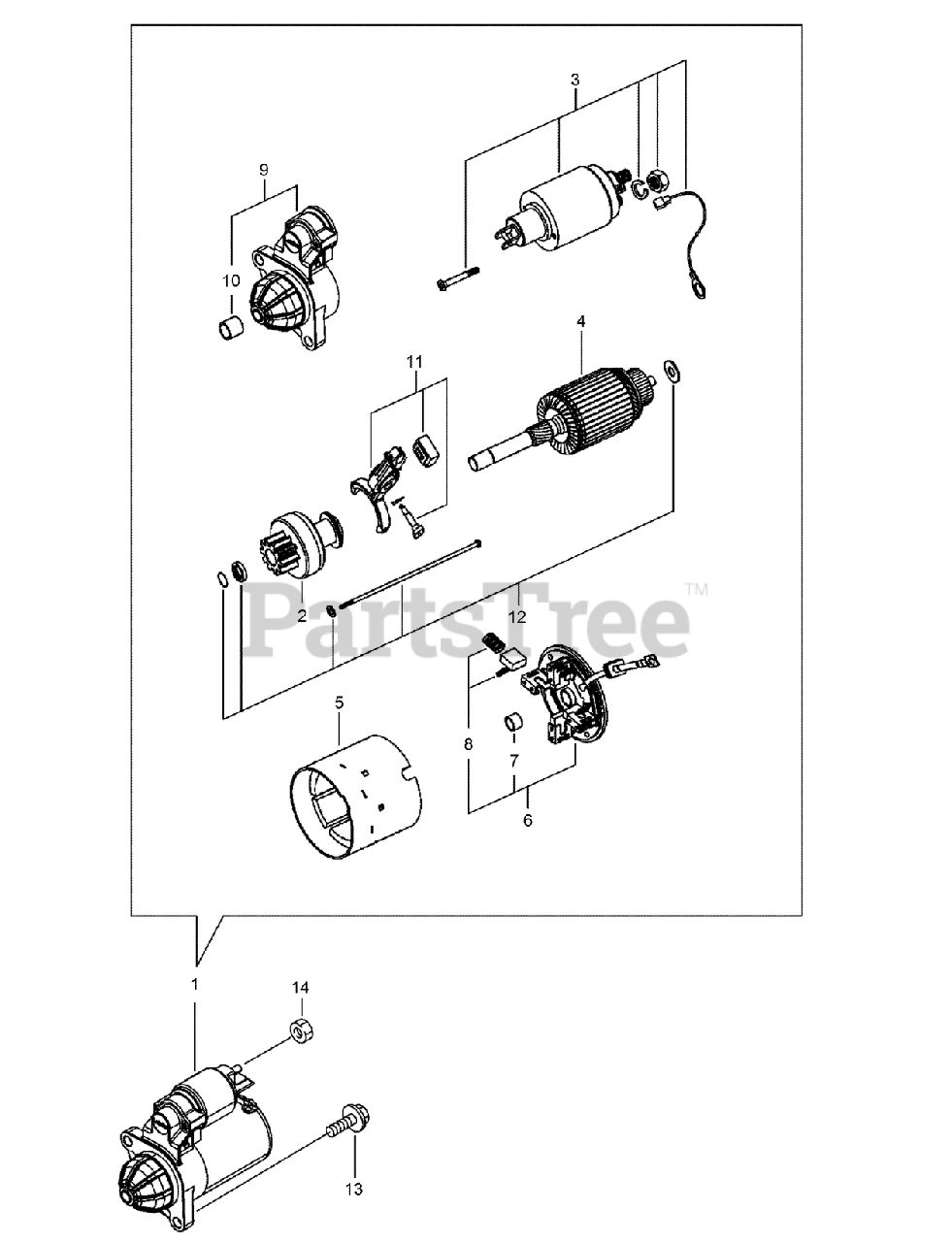

Starter Motor Assembly Parts Diagram

  • Title

1

Toro 136-8149

STARTER MOTOR ASM

$1631.99

$

Usually ships in 3-6 days

0

2

Toro 136-8167

PINION CLUTCH ASM

$825.99

$

Usually ships in 3-6 days

0

3

Toro 136-8169

MAGNETIC SWITCH ASM

$426.99

$

Usually ships in 3-6 days

0

4

Toro 136-8150

ARMATURE ASM

$1039.99

$

Usually ships in 3-6 days

0

5

Toro 136-8151

YOKE ASM

$539.99

$

Usually ships in 3-6 days

0

6

Toro 136-8170

REAR COVER ASM

$373.99

$

Usually ships in 3-6 days

0

7

Toro 136-8168

BUSHING-REAR SIDE

$34.99

$

Usually ships in 3-6 days

0

8

Toro 136-8172

BRUSH HOLDER ASM

$66.99

$

Usually ships in 3-6 days

0

9

Toro 136-8171

GEAR CASE ASM

$350.99

$

Usually ships in 3-6 days

0

10

Toro 136-8166

BUSHING-SIDE, TOP

$225.99

$

Usually ships in 3-6 days

0

11

Toro 136-8173

SHIFT LEVER KIT

$67.99

$

Usually ships in 3-6 days

0

12

Toro 136-8152

THROUGH BOLT ASM

$136.99

$

Usually ships in 3-6 days

0

13

Toro 136-8258

BOLT

$4.49

$

Usually ships in 3-6 days

0

14

Toro 136-8265

NUT

$3.49

$

Usually ships in 3-6 days

0
