25202 E - Toro 48" Direct Drive Boom for RT600 Traction Unit Trencher Frame Assembly No. 131-2520 Parts Diagram

48" Direct Drive Boom for RT600 Traction Unit

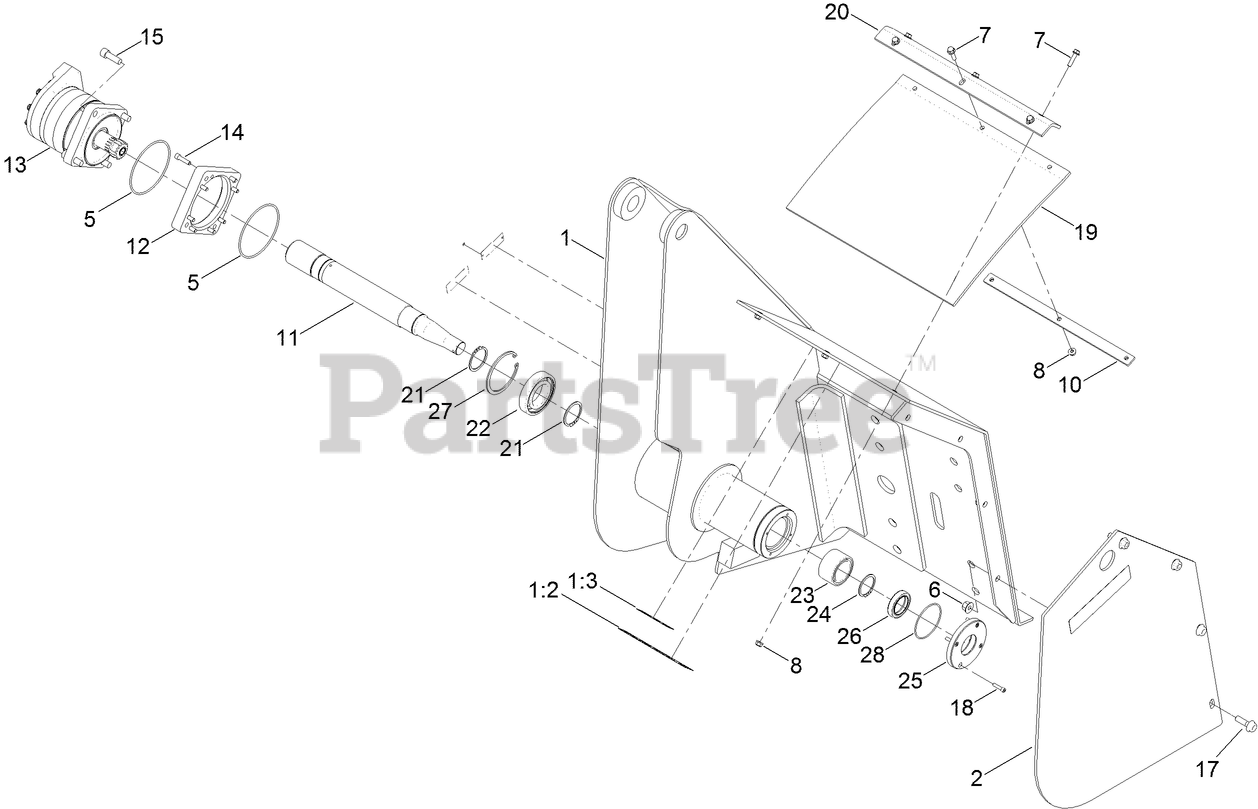

Trencher Frame Assembly No. 131-2520 Parts Diagram

  • Title

1

FRAME-TRENCHER

Note: Not serviced separately

$

$

Not available

1:2

Toro 125-6670

DECAL-DANGER, ENTANGLEMENT

$5.99

$

Usually ships in 3-6 days

0

1:3

Toro 125-6671

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

2

Toro 131-2521

SIDE PLATE

$

$

Currently unavailable

5

Toro 104-1920

O-RING

$13.99

$

Usually ships in 3-6 days

0

6

Toro 115-1115

NUT-LOCK, HHF

$2.99

$

Usually ships in 3-6 days

0

7

Toro 119-4036

SCREW-HHF

$1.49

$

In Stock, Qty 6

0

8

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 131-2522-03

STRIP-DEFLECTOR, DIRT

$

$

Currently unavailable

11

Toro 131-2524

SHAFT-DRIVE

$

$

Currently unavailable

12

Toro 131-2526-03

FLANGE-MOTOR

$

$

Currently unavailable

13

Toro 131-2527

MOTOR-HYDRAULIC, VIS 40

$

$

Currently unavailable

14

Toro 3274-18

SCREW-HSH

$10.99

$

In Stock, only 2 left!

0

15

Toro 3274-4

SCREW-HSH

$2.99

$

In Stock, Qty 5

0

17

Toro AU100830

SCREW

$3.49

$

Usually ships in 3-6 days

0

18

Toro 3274-9

SCREW-HSH

$4.99

$

Usually ships in 3-6 days

0

19

Toro AU117206A1

DEFLECTOR-DIRT

$152.99

$

Usually ships in 3-6 days

0

20

Toro AU117207A1-03

ANGLE-DIRT DEFLECTOR

$118.99

$

Usually ships in 3-6 days

0

21

Toro 131-2562

RING-RETAINING, SNAP

$

$

Currently unavailable

22

Toro 131-2563

BEARING-BALL, 55MM

$

$

Currently unavailable

23

Toro 131-2564

BEARING-CARB, 50MM

$

$

Currently unavailable

24

Toro 131-2565

RING-SNAP, 50MM

$

$

Currently unavailable

25

Toro 131-2566-03

See Supercession: 136-3967-03

$

$

Not available

26

Toro 131-2567

SEAL-CRWA5, 2.50

$

$

Currently unavailable

27

Toro 131-2568

RING-SNAP, 100MM

$

$

Currently unavailable

28

Toro 237-161

O-RING

$9.99

$

In Stock, only 2 left!

0
