25400 - Toro Pro Sneak 360 Vibratory Plow (SN: 314000001 - 314999999) (2014) Engine, Air Cleaner and Exhaust Assembly Parts Diagram

Pro Sneak 360 Vibratory Plow

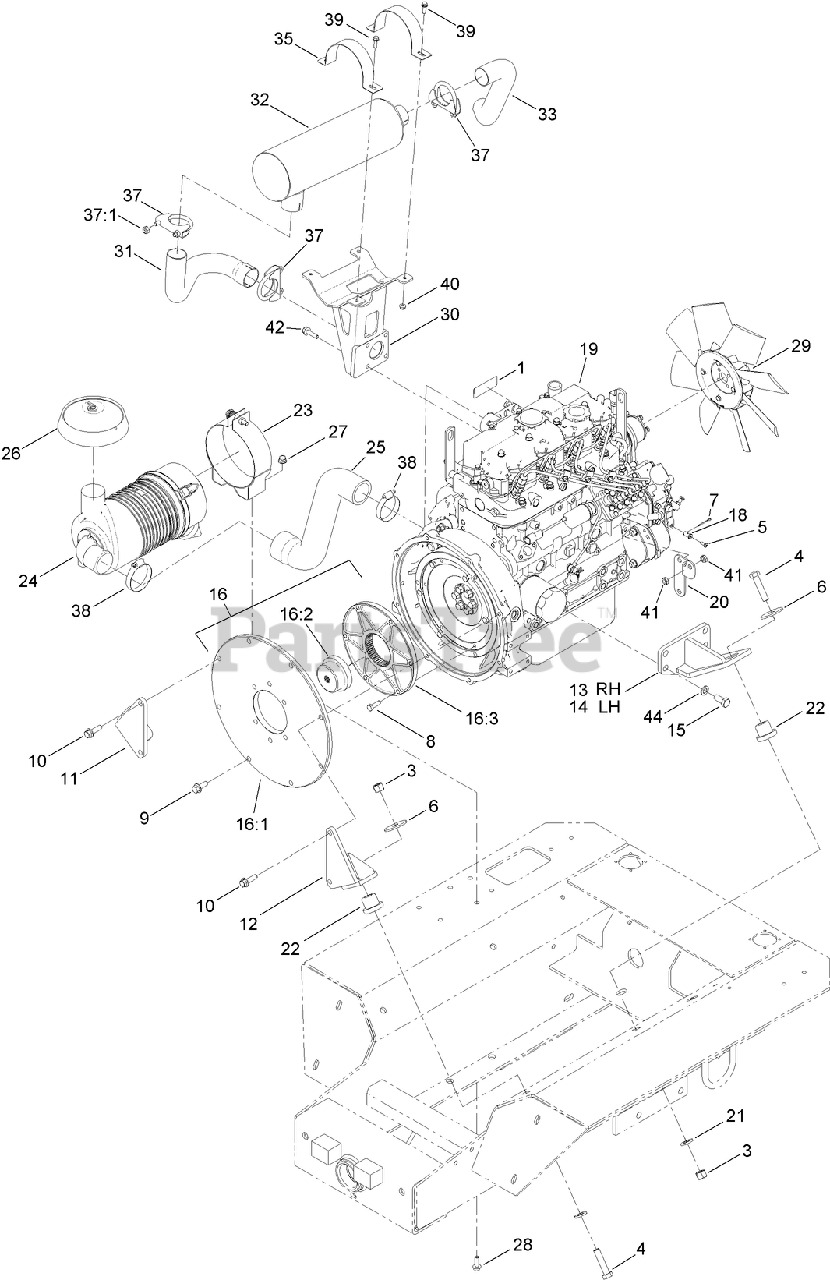

Engine, Air Cleaner and Exhaust Assembly Parts Diagram

  • Title

1

Toro 125-6688

DECAL-DANGER, STARTER FLUID

$

$

Currently unavailable

3

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

4

Toro 325-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

5

Toro 3250-31

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

6

Toro AU496-81018

WASHER-FLAT

$4.99

$

Usually ships in 3-6 days

0

7

Toro 3272-7

PIN-COTTER
(Superseded to 702947)

$65.99

$

Usually ships in 3-6 days

0

8

Toro AU426-516

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

9

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

10

Toro 119-4061

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

11

Toro AU104923-03

MOUNT-ENGINE, LEFT REAR

$185.99

$

Usually ships in 3-6 days

0

12

Toro AU104924-03

MOUNT-MOTOR, RH

$185.99

$

Usually ships in 3-6 days

0

13

Toro AU125520-03

MOUNT-ENGINE, FRONT (RH)

$128.99

$

Usually ships in 3-6 days

0

14

Toro AU125521-03

MOUNT-ENGINE, FRAME (LH)

$

$

Not available

15

Toro AU514-842

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

16

Toro AU125558

PUMP DRIVE COUPLER KIT

$1178.99

$

Usually ships in 3-6 days

0

16:1

Toro AU105006

PLATE-MOUNTING, PUMP

$

$

Currently unavailable

16:2

Toro AU105005

HUB-9T

$125.99

$

Usually ships in 3-6 days

0

16:3

Toro AU125557

FLANGE-FLYWHEEL

$315.99

$

Usually ships in 3-6 days

0

18

Toro AU126701

PIN-THROTTLE

$71.99

$

Usually ships in 3-6 days

0

19

Toro AU129101

ENGINE-TIER 4I

$

$

Currently unavailable

20

Toro AU130183-03

BRACKET-CABLE, THROTTLE

$134.99

$

Usually ships in 3-6 days

0

21

Toro AUH274894

WASHER

$2.99

$

Usually ships in 3-6 days

0

22

Toro AUH426395

MOUNT-RUBBER

$32.99

$

Usually ships in 3-6 days

0

23

Toro AU104649

See Supercession: 100-4825
(Superseded to 100-4825)

$128.99

$

Usually ships in 3-6 days

0

24

Toro 106-5277

AIR CLEANER ASM

$214.99

$

Usually ships in 3-6 days

0

25

Toro 125-6605

HOSE-AIR INLET

$116.99

$

Usually ships in 3-6 days

0

26

Toro AU104635

See Supercession: 105-2539
(Superseded to 105-2539)

$

$

Not available

27

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

28

Toro AU100873

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

29

Toro AU125618

FAN

$510.99

$

Usually ships in 3-6 days

0

30

Toro 125-6616

See Supercession: 125-6616-03
(Superseded to 125-6616-03)

$447.99

$

Usually ships in 3-6 days

0

31

Toro 125-6611

TUBE-EXHAUST

$234.99

$

Usually ships in 3-6 days

0

32

Toro AU106006

MUFFLER-EXHAUST

$721.99

$

Usually ships in 3-6 days

0

33

Toro 125-6612

TUBE-EXHAUST

$181.99

$

Usually ships in 3-6 days

0

35

Toro 125-6613

BRACKET-MUFFLER

$82.99

$

Usually ships in 3-6 days

0

37

Toro 2112-6

CLAMP-MUFFLER

$12.99

$

Usually ships in 3-6 days

0

37:1

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

38

Toro 2412-130

CLAMP-HOSE

$4.99

$

Usually ships in 3-6 days

0

39

Toro 117-8304

SCREW-HHF

$3.99

$

In Stock, only 4 left!

0

40

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

41

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

42

Toro 33104-030

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

44

Toro 48-8070

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0
