25400 - Toro Pro Sneak 360 Vibratory Plow (SN: 314000001 - 314999999) (2014) Seat and Rear Frame Assembly Parts Diagram

Pro Sneak 360 Vibratory Plow

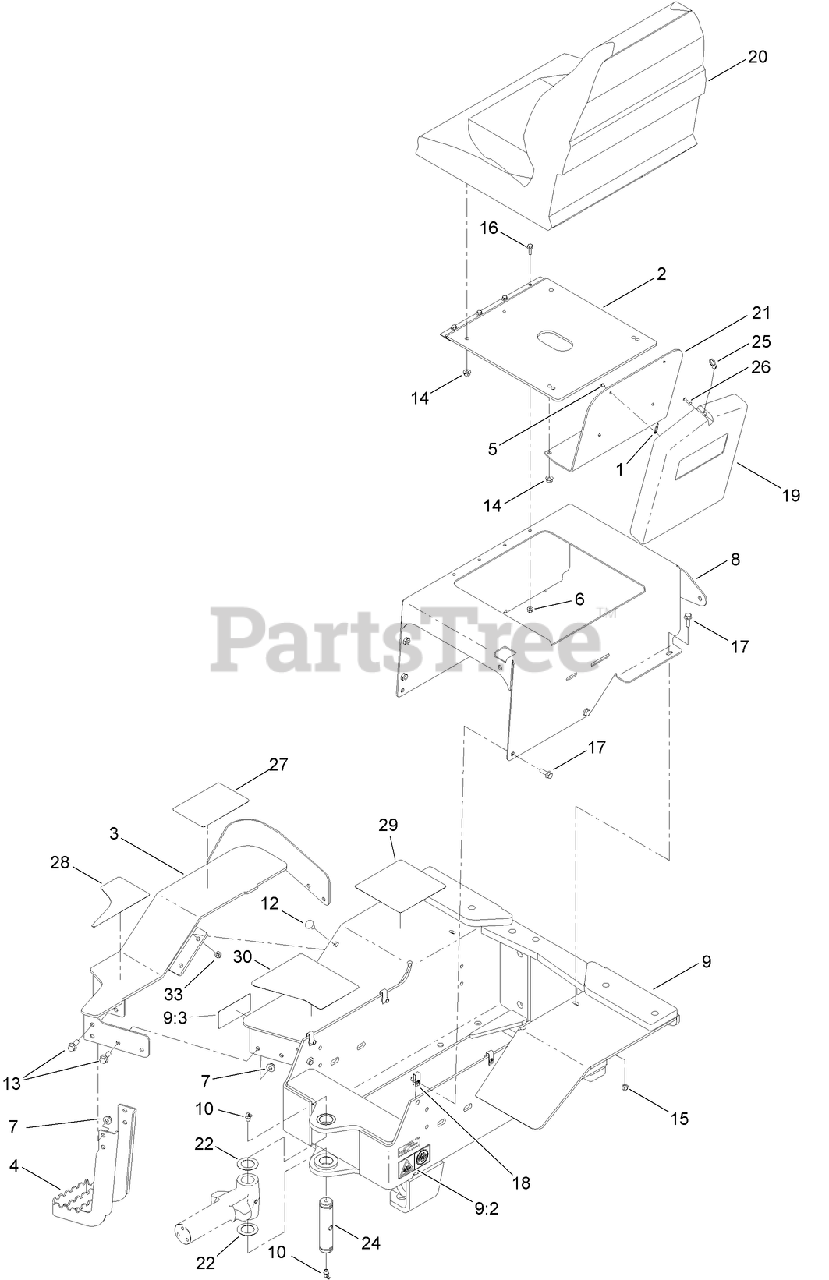

Seat and Rear Frame Assembly Parts Diagram

  • Title

1

Toro AUR46465

LANYARD

$22.99

$

Usually ships in 3-6 days

0

2

Toro 125-8463-01

PLATE-SEAT

$208.99

$

Usually ships in 3-6 days

0

3

Toro 125-6650-01

PLATFORM-EXTENSION

$379.99

$

Usually ships in 3-6 days

0

4

Toro 125-6656-01

STEP-PLATFORM

$181.99

$

Usually ships in 3-6 days

0

5

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

6

Toro 81-0130

NUT-FLANGE, NI

$1.99

$

Usually ships in 3-6 days

0

7

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 127-1098

SUPPORT-SEAT

$

$

Currently unavailable

9

Toro 127-1025

REAR FRAME AND DECAL ASM

$

$

Not available

9:2

Toro 125-6672

DECAL-DANGER, ARTICULATED JOINT

$

$

Currently unavailable

9:3

Toro 125-8487

DECAL-WARNING, STEP EXTENSION

$

$

Currently unavailable

10

Toro 302-33

FITTING-GREASE
(Superseded to 9335124)

$2.99

$

In Stock, only 1 left!

0

12

Toro 3231-21

SCREW-CARR

$1.99

$

In Stock, Qty 6

0

13

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

14

Toro 68-9400

NUT-FLANGE

$2.99

$

In Stock, only 1 left!

0

15

Toro 33024-00

NUT-LOCK, NI

$1.49

$

Usually ships in 3-6 days

0

16

Toro 33103-020

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

17

Toro 33104-025

SCREW-HHF

$8.49

$

In Stock, only 2 left!

0

18

Toro 127-8408

NUT-U

$8.99

$

Usually ships in 3-6 days

0

19

Toro AU103216

HOLDER-MANUAL, OPERATOR

$86.99

$

Usually ships in 3-6 days

0

20

Toro AU125667

SEAT-NON SUSPENSION

$

$

Not available

21

Toro AU125684-01

PLATE-MOUNT, OPERATOR MANUAL

$114.99

$

Usually ships in 3-6 days

0

22

Toro AUH257915

SHIM

$12.99

$

Usually ships in 3-6 days

0

24

Toro AUH371054

PIN-PIVOT

$392.99

$

Usually ships in 3-6 days

0

25

Toro AUR40745

STRAP-TIE, NYLON

$0.99

$

Usually ships in 3-6 days

0

26

Toro AUR46463

POST-MANUAL

$2.49

$

Usually ships in 3-6 days

0

27

Toro 127-1078

TREAD-FLOORBOARD

$4.99

$

Usually ships in 3-6 days

0

28

Toro 127-1077

TREAD-FLOORBOARD

$4.99

$

Usually ships in 3-6 days

0

29

Toro 127-1080

TREAD-FLOORBOARD

$4.99

$

Usually ships in 3-6 days

0

30

Toro 127-1079

TREAD-FLOORBOARD

$6.49

$

Usually ships in 3-6 days

0

33

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, only 3 left!

0
