25401 E - Toro P85 Vibratory Plow for RT600 Traction Unit (SN: 314000001 - 314999999) (2014) Hydraulic Motor Assembly No. AU87430035 Parts Diagram

P85 Vibratory Plow for RT600 Traction Unit

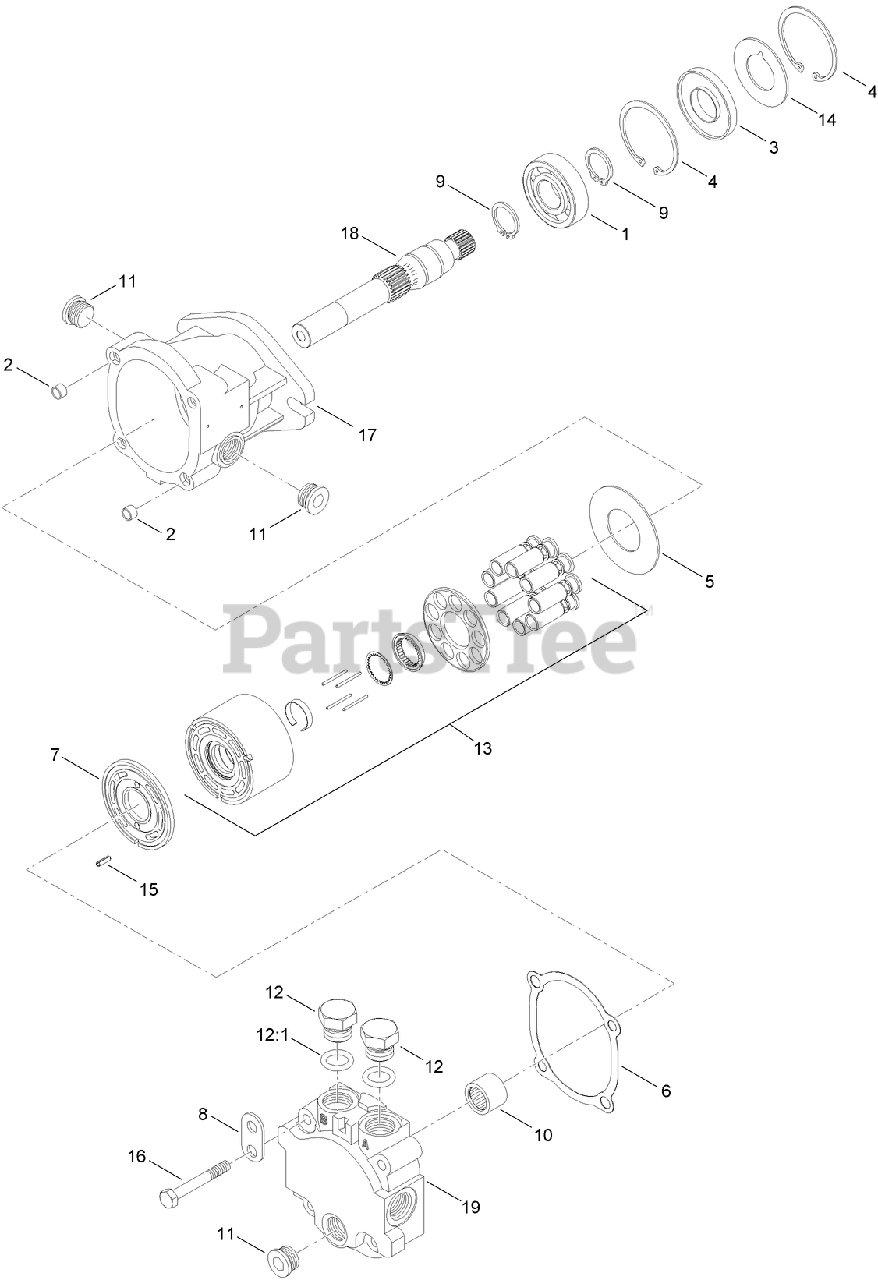

Hydraulic Motor Assembly No. AU87430035 Parts Diagram

  • Title

1

Toro AUA29183

BEARING

$98.99

$

Usually ships in 3-6 days

0

2

Toro AUN13994

PIN-Spring

$

$

Currently unavailable

3

Toro 127-6214

SEAL-LIP

$169.99

$

Usually ships in 3-6 days

0

4

Toro 69-3200

RING-RETAINING

$32.99

$

Usually ships in 3-6 days

0

5

Toro AU100700A1

PLATE-Thrust

$

$

Currently unavailable

6

Toro AU100701A1

GASKET-END CAP

$17.99

$

Usually ships in 3-6 days

0

7

Toro AU100702A1

PLATE-Valve

$

$

Currently unavailable

8

Toro AU100703A1

BRACKET-Lifting

$

$

Currently unavailable

9

Toro 69-3170

RING-RETAINING

$18.99

$

Usually ships in 3-6 days

0

10

Toro AU132391A1

BEARING-NEEDLE

$81.99

$

Usually ships in 3-6 days

0

11

Toro 92-5717

PLUG-PIPE
(Superseded to 125-5303)

$47.99

$

Usually ships in 3-6 days

0

12

Toro 69-3130

PLUG

$100.99

$

Usually ships in 3-6 days

0

12:1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

13

Toro AU234383A1

CYLINDER BLOCK KIT

$

$

Currently unavailable

14

Toro 95-4400

WASHER-BACKUP

$12.99

$

Usually ships in 3-6 days

0

15

Toro 131-3800

PIN-SLOTTED

$

$

Currently unavailable

16

Toro 127-6213

SCREW-HH

$

$

Currently unavailable

17

HOUSING

Note: Not serviced separately

$

$

Not available

18

Toro AU87431908

SHAFT

$

$

Currently unavailable

19

Toro AU87431909

CAP-End

$

$

Currently unavailable
